SG Armaturen

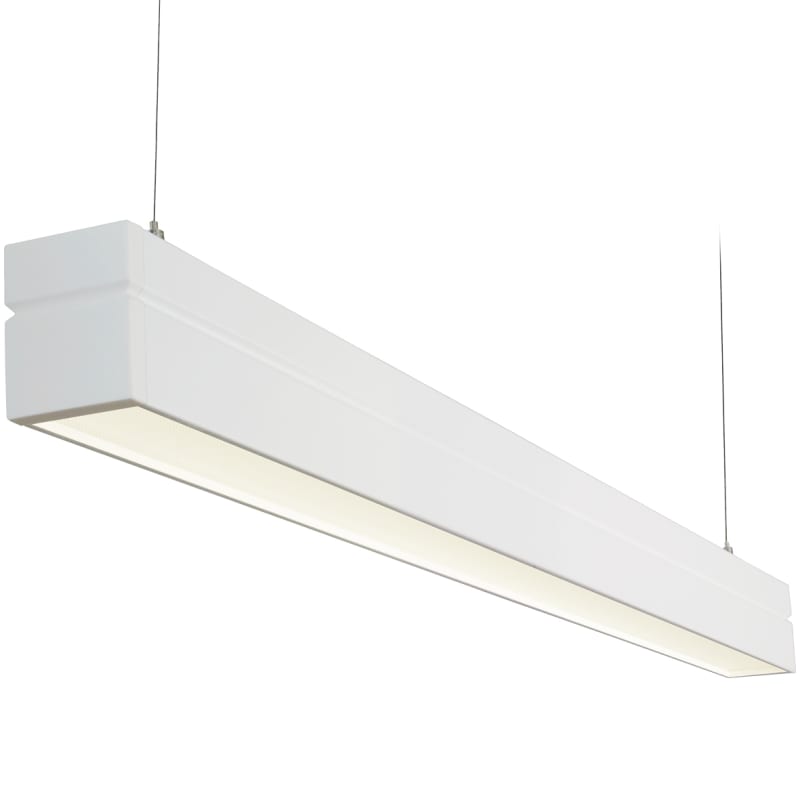

Facet D/In White 35W/830 DALI
Part number8246094270EAN / GTIN5703821177115HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094270 Facet D/In 44W 3K DALI.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094270
- EAN / GTIN
- 5703821177115
- Sales unit
- pcs
- Power
- 35 W
- Efficacy
- 144 lm/W
- Lumen
- 5030lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Suspended, Indoor
- System wattage
- 35W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 13, B16: 20, C10: 21, C16: 34
- Leakage current (mA)
- 0.08
- Type of light source
- LED
- Luminous flux
- 5030lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Indirect 50/50%
- Optic
- Lens C, prismatic Conical
- UGR
- UGR<19
- Visible flicker (PstLM)
- 0.04
- Stroboscopic flicker (SVM)
- 0
- Photobiological safety
- RG 1
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class I
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Sheet steel
- Colour
- White (RAL 9010, 20% gloss)
- Optics
- Acrylic (PMMA)
- Wire set
- 2x2m wire kit w/loop M4
- Cable
- Cable 5x0,75mm² 2,5m white
- Length (mm) L
- 1444
- Width (mm) W
- 64
- Height (mm) H
- 80
- Weight (kg) gross/net
- 5.125 / 4.925
- Packaging dimensions (mm)
- 1500 x 100 x 70
- Country of origin
- Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821177115
- SAP 1200117352
- Code 81973874
Product Documentation
Document preview: Facet D/In White 35W/830 DALI (8246094270) — Specification sheet
