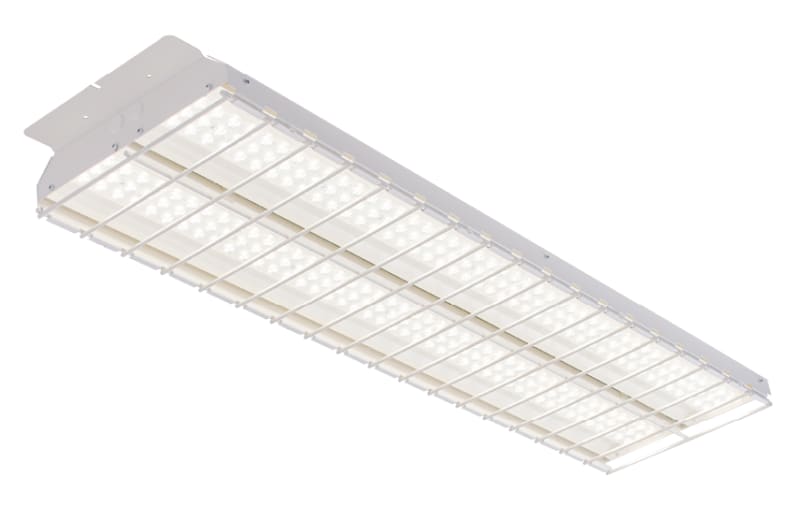

Arena 1200 Sport 155W/840 WIDE DALI
Part number8246094403EAN / GTIN5703821177337HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 8246094403 ARENA SPORT 1200 22400lm 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 8246094403 EAN / GTIN: 5703821177337 Sales unit: pcs Power: 155 W Efficacy: 155 lm/W Lumen: 22370lm IP Class: IP23 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B20> Mounting: Surface, Indoor System wattage: 144W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 3, B16: 5, C10: 5, C16: 8 Leakage current (mA): 0.18 Type of light source: LED Luminous flux: 22370lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Light distribution: Direct Optic: Lens Wide Beam angle: Wide UGR: UGR<25 Visible flicker (PstLM): 0.03 Photobiological safety: RG 1 Type: DALI-2 Number of DALI drivers: 2 Luminaire class: Class I IK Class: IK10 Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Sunda Hus: B Housing: Sheet steel Colour: White (RAL 9010, 20% gloss) Optics: Acrylic (PMMA) Module: 1200 296mm Connection: 7-pole screwless terminal block with 5x2,5mm² (+DALI) through wiring Length (mm) L: 1263 Width (mm) W: 296 Height (mm) H: 80 Weight (kg) gross/net: 10.7 / 10.5 Packaging dimensions (mm): 1270 x 314 x 85 Country of origin: Denmark
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 5703821177337
- SAP 1200136363
- Code 81997021
Product Documentation
Document preview: Arena 1200 Sport 155W/840 WIDE DALI (8246094403) — Specification sheet
More from SG Armaturen
SG Armaturen
Prelude Square White 13W/940
111383
SG Armaturen
Junistar TUBE Round Black 3000K
902704
SG Armaturen
Junistar BIO White 540LM 5W/940
905252
SG Armaturen
Junistar TUBE Round White 3X 4000K
902714
SG Armaturen
Sense PRO X 600X1200 White 60W/940 DALI
212665
SG Armaturen
TUBE Micro TRIO White 18W/930 36°
320687
SG Armaturen

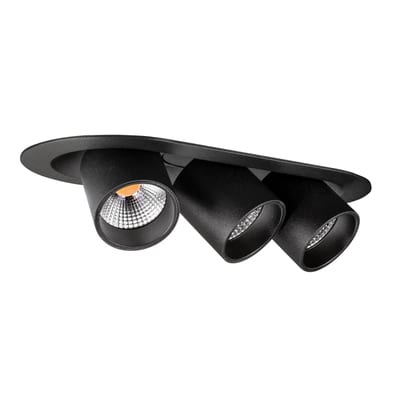

Junistar TUBE Round Black 3X 3000K
902716
SG Armaturen

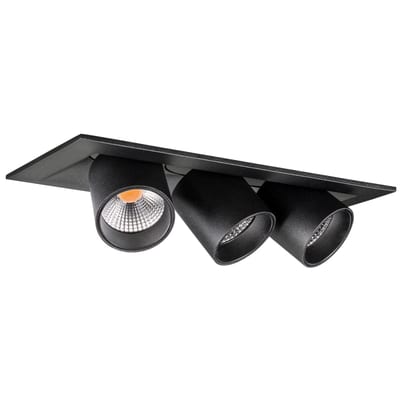

Junistar TUBE Square Black 3X 4000K
