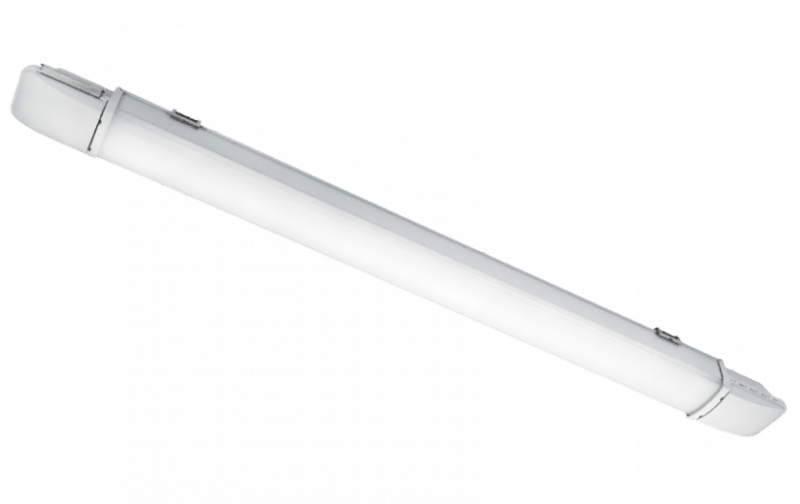

AREA66 36W/840 IP66 IK10
Part number120001EAN / GTIN7021981200015HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120001 L80/B50> 100 000 hours, 4390lm, 119 lm/W, SDCM3, IP66, IK10, L:1174mm.
Technical Specifications
- Manufacturer part number (MPN)
- 120001 EAN / GTIN: 7021981200015 Sales unit: pcs Package quantity: 6 pcs IP rating: IP66 Power: 36 W Efficacy: 125 lm/W Lumen: 4500lm Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L80/B10> Mounting: Surface, Indoor System wattage: 36W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 12, B16: 19, C10: 20, C16: 32 Leakage current (mA): 0.27 Type of light source: LED Luminous flux: 4500lm MacAdams factor: SDCM: 3 minimum ambient temperature: -25°C Maximum ambient temperature: 45°C Lifetime at max ambient temperature: L80/B20>50,000 Light distribution: Direct Optic: Opal Beam angle: 100° UGR: UGR<28 Type: On/Off Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: D Breeam: Fulfils Hea 01 for flicker free lighting Sunda Hus: C+ Food Safety approved (IFS and HACCP): Yes Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1174 Width (mm) W: 92 Height (mm) H: 70 Weight (kg) gross/net: 2.832 / 2.36 Packaging dimensions (mm): 1230 x 110 x 80 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200015
- SAP 1200036796
- Code 81595378
Product Documentation
Document preview: AREA66 36W/840 IP66 IK10 (120001) — Specification sheet
