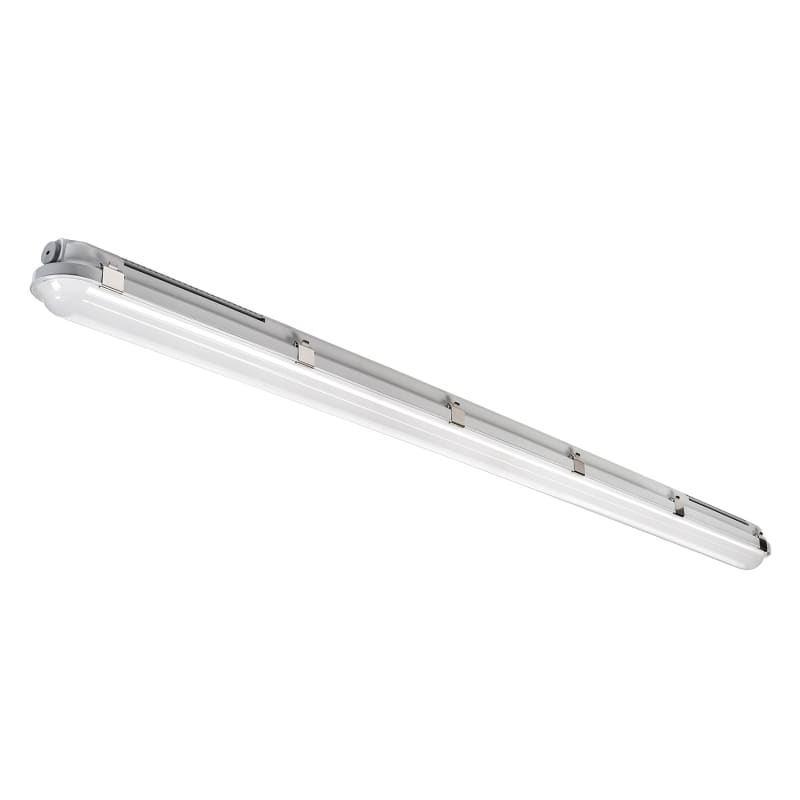

Tysnes 66 PRO 1500 55W/840
Part number120051EAN / GTIN7021981200510HS code9405.11
Lighting & Electrical Accessories
Industrial Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120051 TYSNES 66 PRO 1500 4000K, 55W, 9430lm, Ra<80, SDCM3, L90/B10 100.000, IK10, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- 120051 EAN / GTIN: 7021981200510 Sales unit: pcs Package quantity: 8 pcs Power: 55 W Replaces: 120007 Efficacy: 171 lm/W Lumen: 9430lm IP Class: IP66 Colour temperature: 4000K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L90/B10> Mounting: Surface, Indoor System wattage: 55W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 16, B16: 26, C10: 27, C16: 45 Leakage current (mA): 0.25 Type of light source: LED Light source included: Yes Luminous flux: 9430lm Programmable with CLO: Yes (affects lumen output) MacAdams factor: SDCM: 3 minimum ambient temperature: -40°C Light distribution: Direct Optic: Opal Beam angle: 119° UGR: UGR<28 Type: On/Off Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Food Safety approved (IFS and HACCP): Yes Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Module: 1500 Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1500 Width (mm) W: 85 Height (mm) H: 80 Weight (kg) gross/net: 1.976 / 1.776 Packaging dimensions (mm): 1525 x 90 x 85 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200510
- SAP 1200747200
- Code 83886070
Product Documentation
Document preview: Tysnes 66 PRO 1500 55W/840 (120051) — Specification sheet
