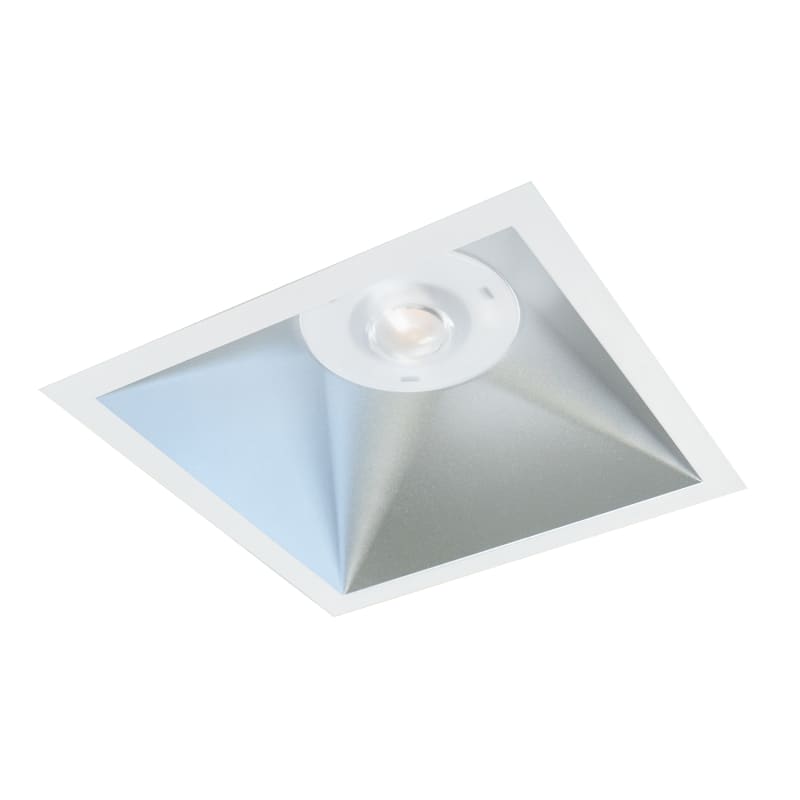

RAX SOFT Square 200 Satin 19W/830 DALI
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212582 RAX SOFT SQUARE 200 SATIN 3000K DALI,, Ra>80, SDCM:2, Class II SELV, IP20, L90/B10>, 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212582
- EAN / GTIN
- 7021982125829
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 19 W
- Efficacy
- 128 lm/W
- Lumen
- 2440lm
- IP Class
- IP54/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 19W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 2440lm
- Programmable with CLO
- Yes (affects lumen output)
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 62°
- UGR
- UGR<19 up to 600 mA
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Cable
- Cable 5x0,75mm²
- Connection
- 5 pol Linect / screwless terminal block
- Length (mm) L
- 216
- Width (mm) W
- 216
- Height (mm) H
- 93
- Ceiling void depth (mm)
- 90
- Weight (kg) gross/net
- 1.225 / 1
- Packaging dimensions (mm)
- 260 x 235 x 100
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125829
- SAP 1200701103
- Code 83595545
Product Documentation
