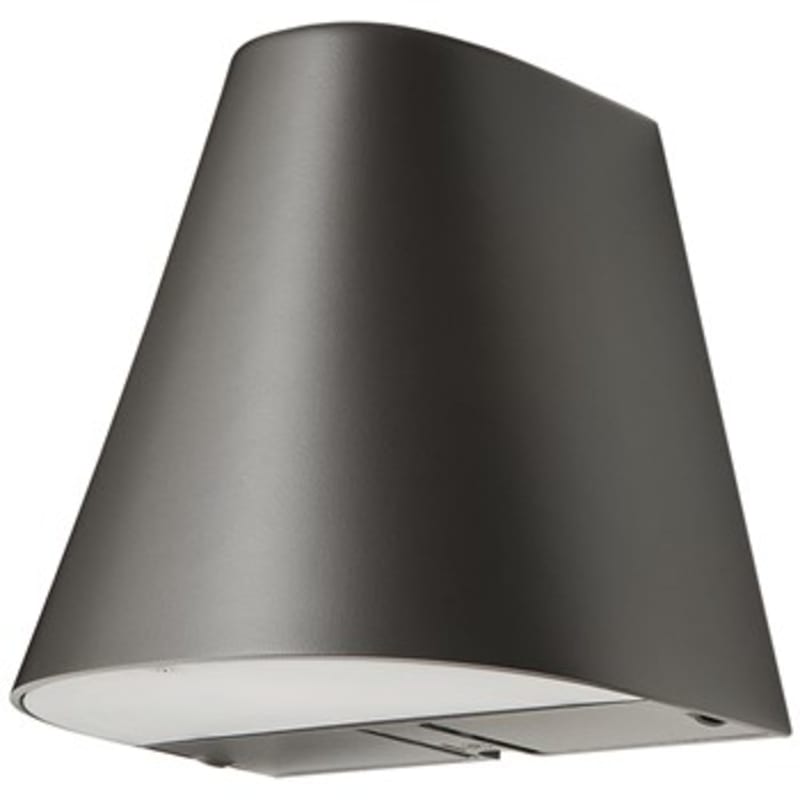

Spike LED Outdoor Luminaire, Graphite, 11 W + 6 W/830, 2 × Plug, with Twilight Sensor
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623924 Spike LED outdoor luminaire, graphite, 11 W + 6 W, 3000 K (830), 800 lm, 48 lm/W, SDCM 3, IP44, IK08, class I, with twilight sensor and 2 × plug connection, non-dimmable; L70/B50 > 50,000 h.
Technical Specifications
- Manufacturer part number (MPN)
- 623924
- EAN / GTIN
- 7021986239249
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Efficacy
- 71 lm/W
- Lumen
- 920lm
- Wattage
- 11W+6W
- IP Class
- IP44
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Outdoor
- System wattage
- 13W
- Voltage
- 220-240V
- Type of light source
- LED
- Socket
- GU10
- Light source included
- Yes
- Luminous flux
- 920lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Plastic opal/transparent
- Beam angle
- 95° down / 15° up
- Type
- Twilight
- Luminaire class
- Class I
- IK Class
- IK06
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate/ UV-stabilized PMMA
- Connection
- Screwless terminal block
- Width (mm) W
- 171
- Height (mm) H
- 173
- Depth (D)
- 155
- Weight (kg) gross/net
- 2.028 / 1.81
- Packaging dimensions (mm)
- 180 x 165 x 185
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986239249
- SAP 1000704774
- Code 8320509
Product Documentation
More from SG Armaturen
SG Armaturen
DISC 480 D/In White 34W 3K/4K DALI
606204
SG Armaturen

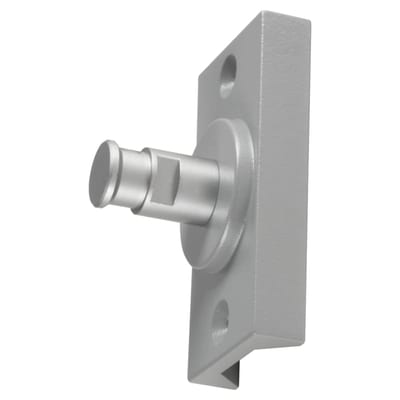

WAX MAST AND WALL Bracket GREY
8249044081
SG Armaturen

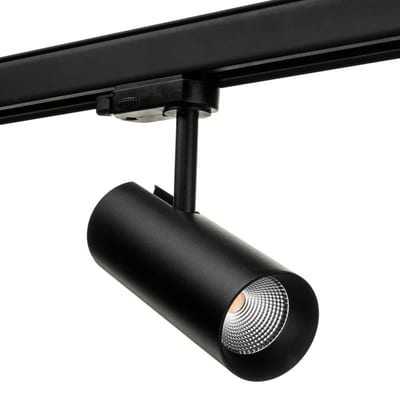

TUBE MINI 3T Black 14W/927 40° DALI
320743
SG Armaturen

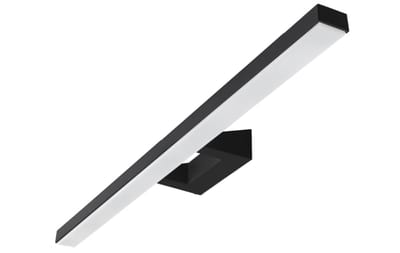

VIEW 900 Black 30W/940 IP44
114433
SG Armaturen

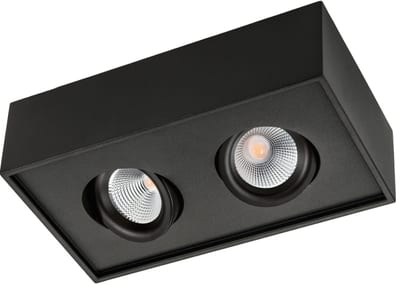

CUBE LUX Black 2X7W/927 DALI
902572
SG Armaturen

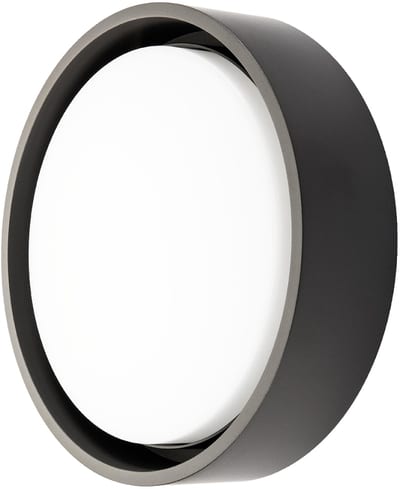

Frame Round Black 7W/830 Twilight
605052
SG Armaturen

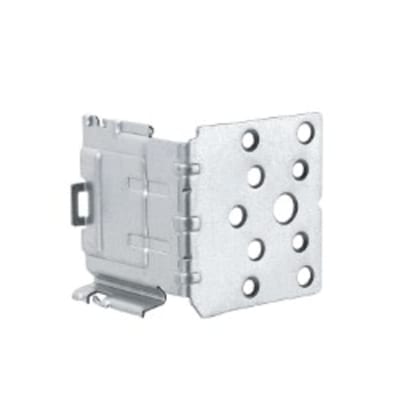

Stud Bracket Metal 1 Plate
79920
SG Armaturen

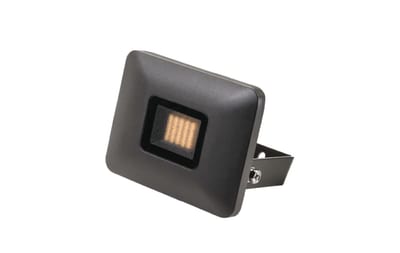

FLOM MINI 10W/840 IP65
