SG Armaturen

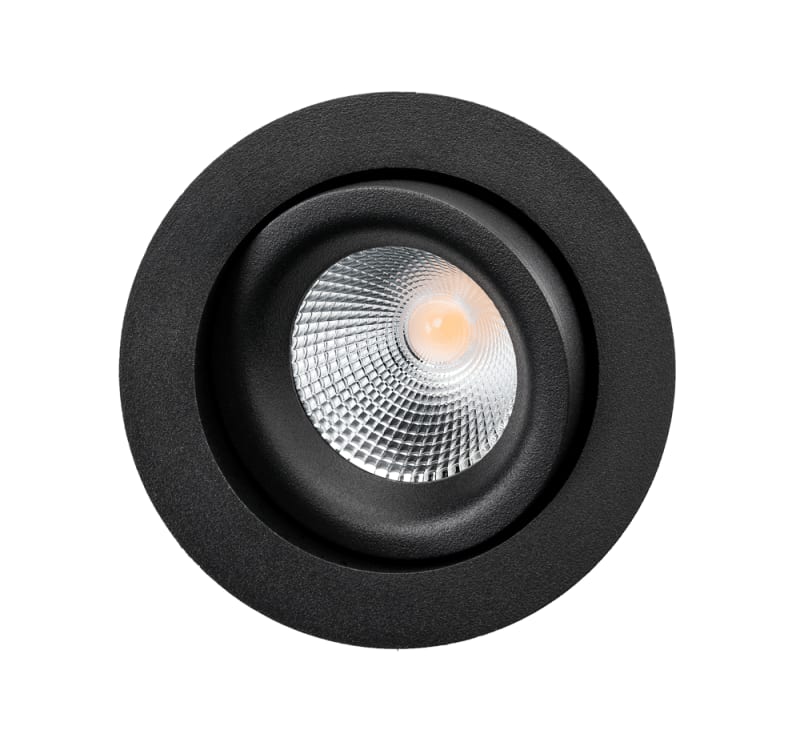

Junistar LUX IN/OUT ISO Black 7W/940
Part number902526EAN / GTIN7021989025269HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 902526 L90/B10>50 000 hours, 540lm, 68 lm/W, SDCM1, IP44, 42°.
Technical Specifications
- Manufacturer part number (MPN)
- 902526
- EAN / GTIN
- 7021989025269
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 7 W
- Efficacy
- 78 lm/W
- Lumen
- 620lm
- Wattage
- 7W
- IP Class
- IP44/IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 105, B16: 168, C10: 105, C16: 168
- Type of light source
- LED
- Luminous flux
- 620lm
- MacAdams factor
- SDCM: 1
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<22
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Height (mm) H
- 56
- Diameter (mm) D
- 94
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 54
- Weight (kg) gross/net
- 0.419 / 0.349
- Packaging dimensions (mm)
- 115 x 115 x 95
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989025269
- SAP 1200261507
- Code 82231184
Product Documentation
Document preview: Junistar LUX IN/OUT ISO Black 7W/940 (902526) — Specification sheet
More from SG Armaturen
SG Armaturen
Junistar LUX IN/OUT ISO Graphite 7W/930
902528
SG Armaturen
Soft SLIM Gold 11W/927 DALI
903232
SG Armaturen

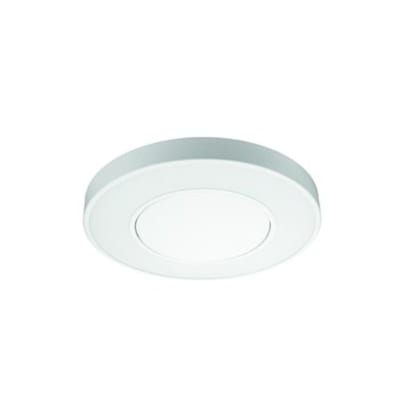

Circulus MAXI White 30W/830 DALI
214013
SG Armaturen

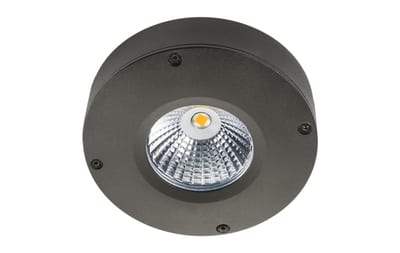

Callisto Graphite 4W/830 IP65
923010
SG Armaturen

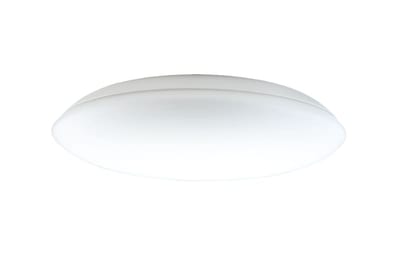

Frosta 330 White 17W/830 DALI
211734
SG Armaturen

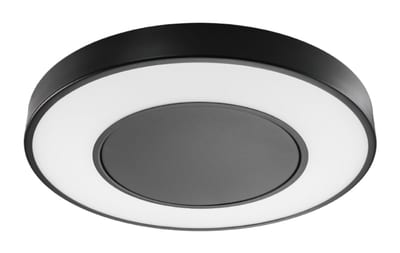

Circulus MAXI Black 30W/830 DALI
214014
SG Armaturen

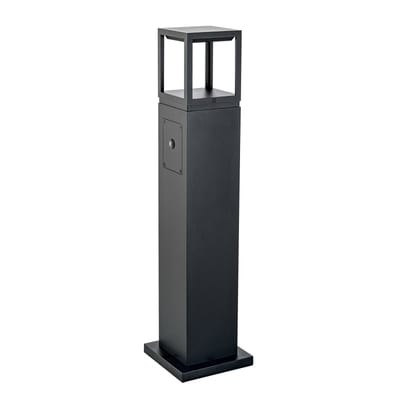

Fagernes Bollard Black 12W/830 PIR
