SG Armaturen

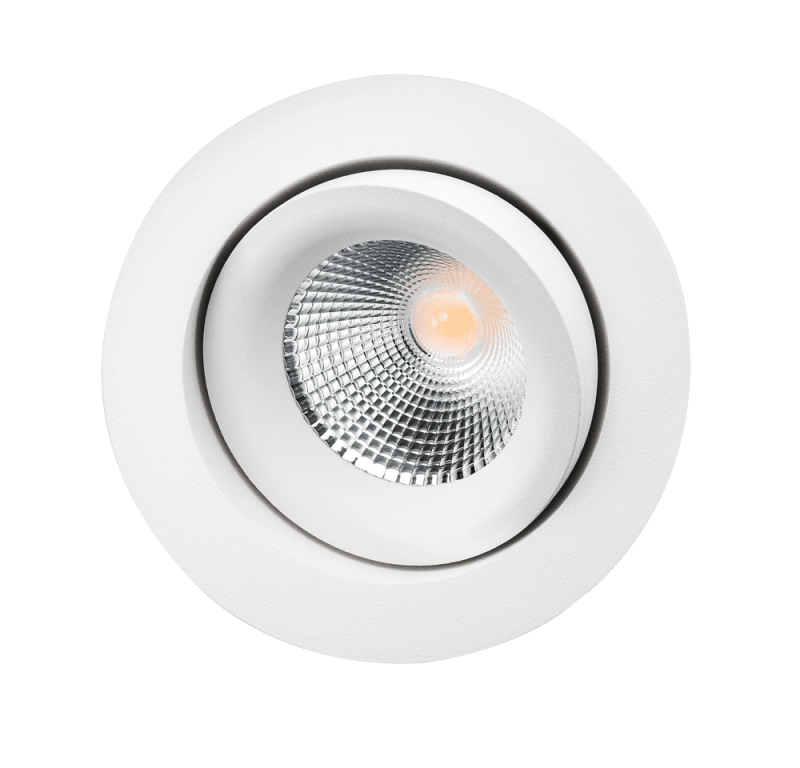

Junistar LUX White 7W/930
Part number902501EAN / GTIN7021989025016HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 902501 L90/B10>100 000 hours, 560lm, 70 lm/W, SDCM1, IP44, 42°.
Technical Specifications
- Manufacturer part number (MPN)
- 902501
- EAN / GTIN
- 7021989025016
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 7 W
- Replaces
- 902301
- Efficacy
- 74 lm/W
- Lumen
- 590lm
- Wattage
- 7W
- IP Class
- IP44/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 8W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 105, B16: 168, C10: 105, C16: 168
- Type of light source
- LED
- Luminous flux
- 590lm
- MacAdams factor
- SDCM: 1
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<22
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Height (mm) H
- 50
- Diameter (mm) D
- 94
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 48
- Weight (kg) gross/net
- 0.395 / 0.325
- Packaging dimensions (mm)
- 130 x 115 x 75
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989025016
- SAP 1200257615
- Code 82229381
