SG Armaturen

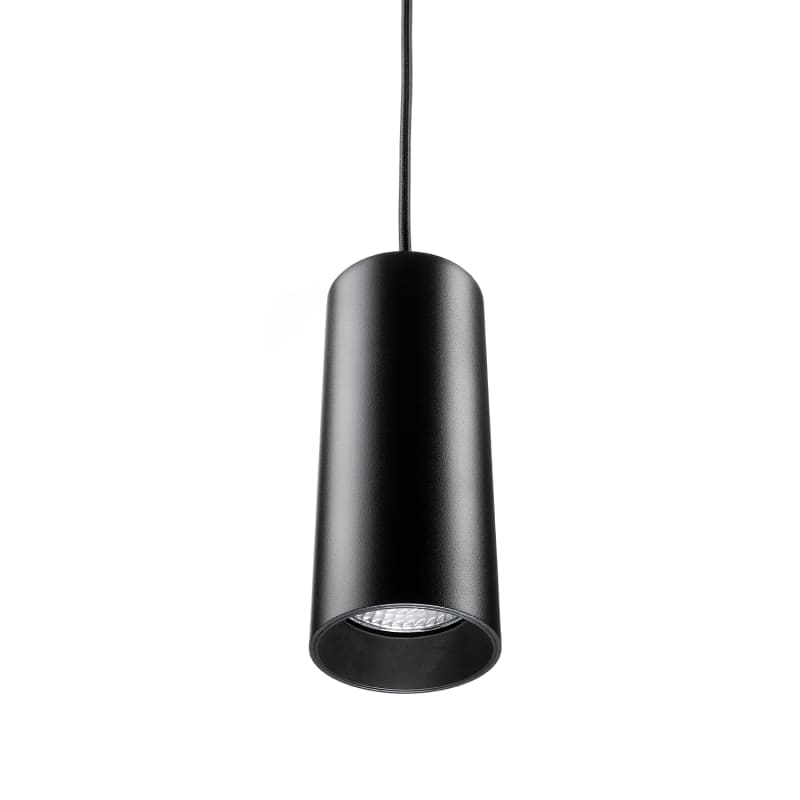

TUBE ECO Pendant Black 23W/927 DALI
Part number314490EAN / GTIN7021983144904HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 314490 TUBE ECO PENDANT BLACK 2700K DALI 23W, 2190, Ra>90, SDCM2, L90/B10 100000, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 314490
- EAN / GTIN
- 7021983144904
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 23 W
- Efficacy
- 95 lm/W
- Lumen
- 2190lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 23W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 2190lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 32°
- UGR
- UGR<10
- Type
- DALI-2
- Luminaire class
- Class II
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Optics
- Aluminium / PC Polycarbonat
- Module
- Pendant
- Cable
- Cable 3m
- Length (mm) L
- 92
- Width (mm) W
- 92
- Height (mm) H
- 222
- Weight (kg) gross/net
- 1.431 / 1.343
- Packaging dimensions (mm)
- 100 x 100 x 320
- Operation by Bluetooth
- No
- Compatible with Casambi
- No
- With movement sensor
- No
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- Black
- Type of grid
- None
- Voltage type
- AC
- Type of control gear
- Not required
- Dimming LineSwitch
- No
- Outer diameter
- 92 mm
- Dimming Its Wave Reduction
- No
- Light distributor
- Reflector
- Colour consistency (McAdam ellipse)
- SDCM2
- Light outlet
- Direct
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Emergency power supply integrated
- No
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 23 W
- Rated luminous flux according to IEC 62722-2-1
- 2190 lm
- Colour of light
- White
- Luminaire efficacy
- 95 lm/W
- Colour rendering index CRI
- 90-100
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 92 mm
- Height/depth
- 222 mm
- Length
- 92 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 5
- Dimmable
- Yes
- With light sensor
- No
- With presence detector
- No
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983144904
- SAP 1200847583
- Code 84072940
Product Documentation
Document preview: TUBE ECO Pendant Black 23W/927 DALI (314490) — Specification sheet
