SG Armaturen

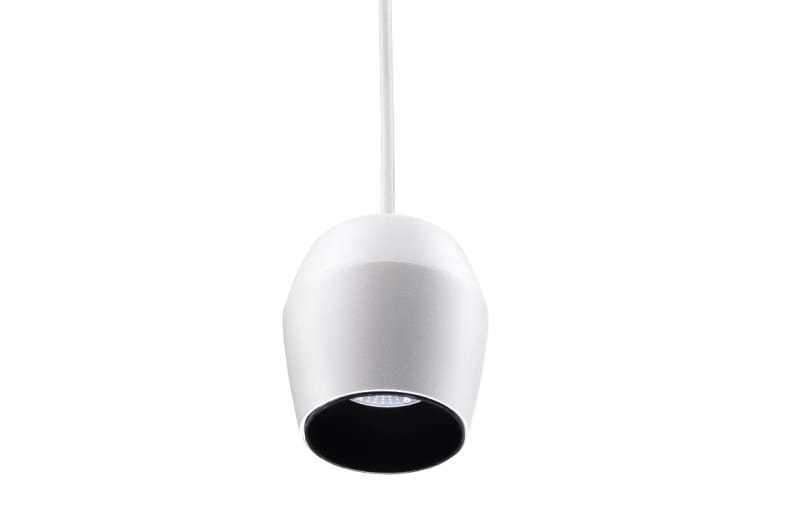

ZIP 1T Jelsa Pendant White 6,5W/930
Part number320887EAN / GTIN7021983208873HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320887 ZIP JELSA PENDANT WHITE 3000K, 6,5w, 500LM, Ra>90, SDCM:3, KLII, IP20, L80/B20>, 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 320887
- EAN / GTIN
- 7021983208873
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Power
- 6.5 W
- Efficacy
- 82 lm/W
- Lumen
- 530lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 6.5W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 180, B16: 300, C10: 180, C16: 300
- Type of light source
- LED
- Luminous flux
- 530lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Lens
- Beam angle
- 42°
- UGR
- UGR<16
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- F
- Housing
- Aluminium
- Optics
- UV-stabilized polycarbonate
- Module
- Pendant
- Cable
- Cable 3m
- Connection
- Zip track (adapter included)
- Width (mm) W
- 83
- Height (mm) H
- 90
- Diameter (mm) D
- 60
- Weight (kg) gross/net
- 0.56 / 0.515
- Packaging dimensions (mm)
- 105 x 115 x 90
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- White
- Material cover
- Plastic, structured
- Voltage type
- AC
- Type of control gear
- Not required
- Colour consistency (McAdam ellipse)
- SDCM2
- Light outlet
- Direct
- Degree of protection (IP)
- IP20
- Impact strength
- IK00
- Protection class according to IEC 61140
- II
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 6.5 W
- Colour of light
- White
- Colour rendering index CRI
- 90-100
- Unified Glare Ratio (UGR)
- 15.2
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 83 mm
- Height/depth
- 90 mm
- Diameter
- 60 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983208873
- SAP 1200912091
- Code 84183248
Product Documentation
Document preview: ZIP 1T Jelsa Pendant White 6,5W/930 (320887) — Specification sheet
