SG Armaturen

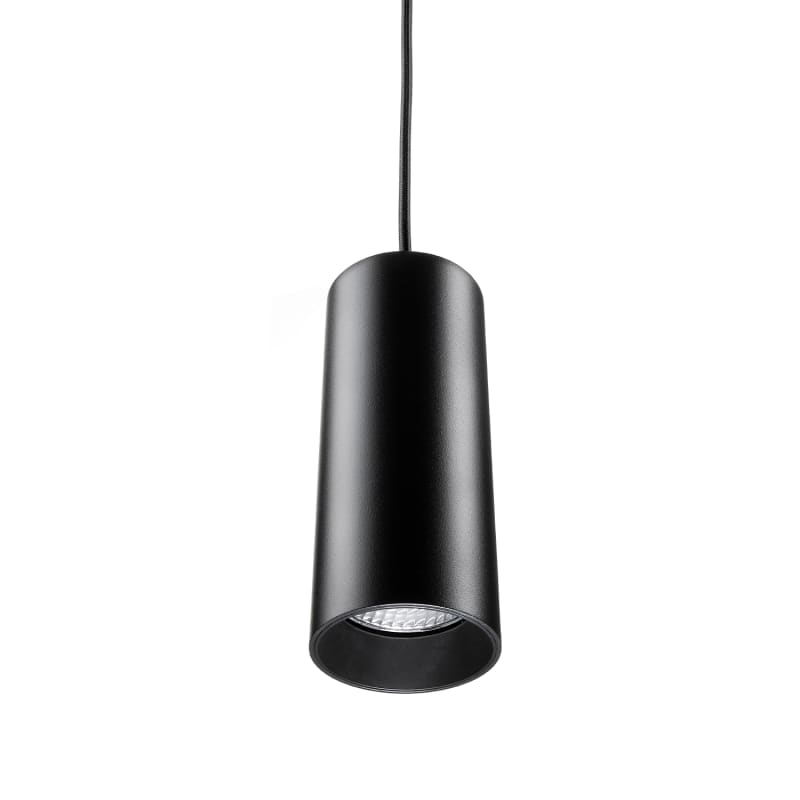

TUBE ECO Pendant Black 23W/927
Part number314486EAN / GTIN7021983144867HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 314486 TUBE ECO PENDANT BLACK 2700K, 23W, 2190lm, Ra>90, SDCM2, L90/B10 100000, IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 314486
- EAN / GTIN
- 7021983144867
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 23 W
- Efficacy
- 95 lm/W
- Lumen
- 2190lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 100,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 23W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 2190lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 32°
- UGR
- UGR<10
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Optics
- Aluminium / PC Polycarbonat
- Module
- Pendant
- Cable
- Cable 3m
- Length (mm) L
- 92
- Width (mm) W
- 92
- Height (mm) H
- 222
- Weight (kg) gross/net
- 1.332 / 1.208
- Packaging dimensions (mm)
- 100 x 100 x 320
- Operation by Bluetooth
- No
- Compatible with Casambi
- No
- With movement sensor
- No
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- Black
- Type of grid
- None
- Voltage type
- AC
- Type of control gear
- Not required
- Dimming LineSwitch
- No
- Outer diameter
- 92 mm
- Dimming Its Wave Reduction
- No
- Light distributor
- Reflector
- Colour consistency (McAdam ellipse)
- SDCM2
- Light outlet
- Direct
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- II
- Emergency power supply integrated
- No
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 23 W
- Rated luminous flux according to IEC 62722-2-1
- 2190 lm
- Colour of light
- White
- Luminaire efficacy
- 95 lm/W
- Colour rendering index CRI
- 90-100
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 92 mm
- Height/depth
- 222 mm
- Length
- 92 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Dimmable
- Yes
- With light sensor
- No
- With presence detector
- No
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983144867
- SAP 1200847579
- Code 84072947
Product Documentation
Document preview: TUBE ECO Pendant Black 23W/927 (314486) — Specification sheet
More from SG Armaturen
SG Armaturen
Artes MIDI Graphite 32W/830 IP65
641713
SG Armaturen
Herning WALL MIDI Corten
623969
SG Armaturen
Hovden Micro Corten 4W/827 36°
630081
SG Armaturen
Connect Driver KIT Wireless 350MA
820503
SG Armaturen
RAX 200 Rehab RING 210-280mm Black IN/OUT
212619
SG Armaturen
Slimline STRAIGHT-Joint Black
391281
SG Armaturen
Hurdal MAXI 1200 38W/830 DALI
113139
SG Armaturen
FLOM MINI 10W/840 IP65 Sensor
630035
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 314486?
- 314486 can be ordered from cballast.com as a SG Armaturen catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SG Armaturen product?
- The manufacturer part number is 314486.
- What is the HS code for 314486?
- The customs tariff (HS) code for 314486 is 9405.11.
- Who manufactures 314486?
- 314486 is a SG Armaturen product in the Lighting & Electrical Accessories range.
- Is a datasheet available for 314486?
- Yes — the 314486 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 314486?
- The minimum order quantity is 1.
- Is 314486 available?
- Yes — 314486 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
