SG Armaturen

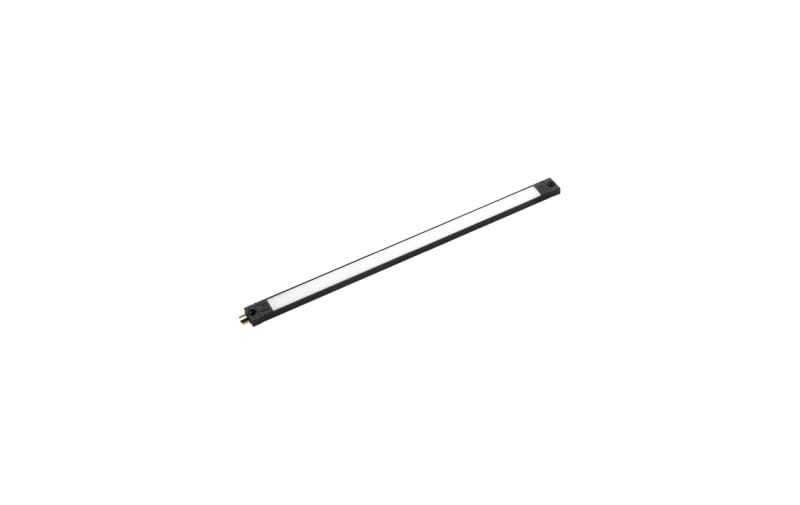

Slimline PRO Black 170mm 1,9W/930
Part number391277EAN / GTIN7021983912770HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 391277 SlimLine Pro black 170mm 3000K, 1,9w, 180lm Ra>90, SDCM3, Class III, IP20, 50.000, L70/B50>.
Technical Specifications
- Manufacturer part number (MPN)
- 391277
- EAN / GTIN
- 7021983912770
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 1.9 W
- Efficacy
- 147 lm/W
- Lumen
- 280lm
- IP Class
- IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L70/B50>
- Mounting
- Surface, Indoor
- System wattage
- 1.9W
- Voltage
- 24V
- Type of light source
- LED
- Luminous flux
- 280lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR>28
- Photobiological safety
- RG 0
- Luminaire class
- Class III
- Energy efficency class
- F
- Housing
- Aluminium
- Colour
- Black
- Optics
- Polycarbonat (PC)
- Module
- 170
- Length (mm) L
- 170
- Width (mm) W
- 17
- Height (mm) H
- 7
- Weight (kg) gross/net
- 0.04 / 0.026
- Packaging dimensions (mm)
- 240 x 21 x 11
- Luminaire efficacy
- 147 lm/W
- Model
- Strip
- Mounting method
- Surface mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 141
- Number of nodes per foot
- 43
- Lamp power per meter
- 11.2 W
- Lamp power per foot
- 3.4 W
- Luminous flux per meter
- 1647 lm
- Voltage type
- DC
- Lamp voltage
- 24 V
- Type of control gear
- LED operating device voltage-controlled
- Suitable for dimmer
- Yes
- Exchangeable control gear
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A+
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- III
- Max. system power
- 1.9 W
- Colour of light
- White
- Colour rendering index CRI
- 90-100
- Power factor
- 100
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 17 mm
- Height/depth
- 7 mm
- Length
- 170 mm
- Length of particular segments
- 170 mm
- With end piece
- Yes
- With connection set
- No
- With protective cover
- No
- Self-adhesive
- Yes
- Type of wiring
- Ending
- Number of poles
- 2
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983912770
- SAP 1200635627
- Code 83071644
Product Documentation
Document preview: Slimline PRO Black 170mm 1,9W/930 (391277) — Specification sheet
More from SG Armaturen
SG Armaturen
Frame 2+2+1 for Triple Socket SO
78175
SG Armaturen
Prelude SQ Cover Black
111389
SG Armaturen
Place 2400LM BLACK 3000K
641964
SG Armaturen
Slimline Switch Black
391293
SG Armaturen
Jointim Smart Silver Front
820418
SG Armaturen
ZIP 1T Aneto MINI Black 6,5W/930
320796
SG Armaturen

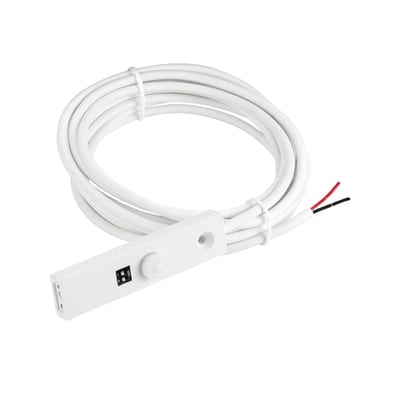

Slimline PIR White (391290)
SG Armaturen

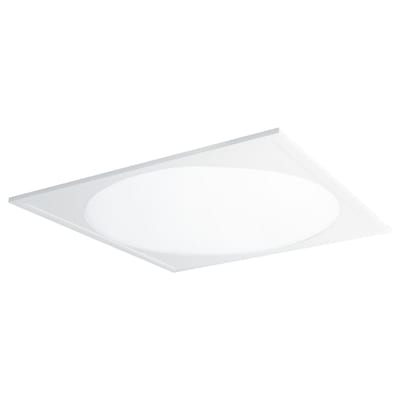

Sense PRO 600X600 Round 4000K RA >80
