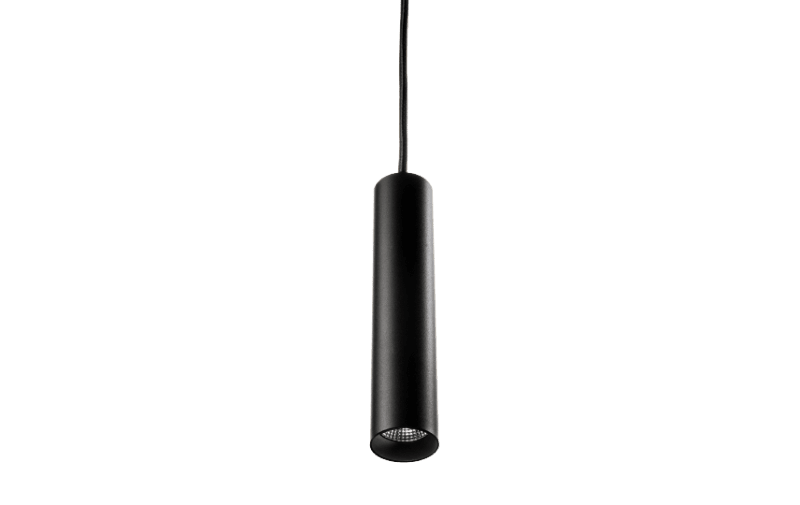

ZIP TUBE Pendant MINI Black 14W/930 DIM

SG Armaturen 320645 ZIP TUBE PENDANT Mini black 3000K 900lm, 14W, RA98, Class II, IP20, L90/B10, SDCM 2, A.

Manufacturer part number (MPN)

320645

EAN / GTIN

7021983206459

Sales unit

pcs

Package quantity

10 pcs

Power

14 W

Replaces

314350

Efficacy

64 lm/W

Lumen

900lm

IP Class

IP20

Colour temperature

3000K

Colour rendering (Ra)

Ra 98

Lifetime

100,000 L90/B10>

Mounting

Surface, Indoor

System wattage

14W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 19, B16: 30, C10: 31, C16: 51

Type of light source

LED

Luminous flux

900lm

MacAdams factor

SDCM: 2

Light distribution

Direct

Optic

Reflector medium

Beam angle

40°

UGR

UGR<19

Type

Trailing edge

Luminaire class

Class II

Contains light source of energy class

F

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Aluminium

Colour

Black (RAL 9004)

Optics

UV-stabilized polycarbonate

Module

215mm Pendant

Cable

Cable 3m

Connection

Zip track (adapter included)

Height (mm) H

215

Diameter (mm) D

59

Weight (kg) gross/net

0.745 / 0.614

Packaging dimensions (mm)

100 x 90 x 245

Operation by Bluetooth

No

Device emplacement

Indoor positioning

With movement sensor

No

Nominal operation time

8–12

RAL-number

9005

Lamp type

LED not exchangeable

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

Black

Material cover

Plastic, structured

Voltage type

AC

Type of control gear

Not required

No dim function

No

Light distributor

Reflector

Colour consistency (McAdam ellipse)

SDCM2

Light outlet

Direct

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A

Lowest energy efficiency class of the exchangeable lamp

A

Rated life time L90/B10 at 25 °C

50000 h

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

II

Filament test according to IEC 60695-2-11

None

Max. system power

14 W

Rated luminous flux according to IEC 62722-2-1

900 lm

Colour of light

White

Luminaire efficacy

64 lm/W

Colour rendering index CRI

90-100

Constant light output (CLO)

No

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

59 mm

Height/depth

215 mm

Length

215 mm

Diameter

59 mm

Type of wiring

Ending

Number of poles

2

Conductor cross section

2.5 mm²

Dimmable

Yes

With light sensor

No

With presence detector

No

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

China

HS Code

9405.11

• EAN 7021983206459
• SAP 1200380780
• Code 82392587
