SG Armaturen

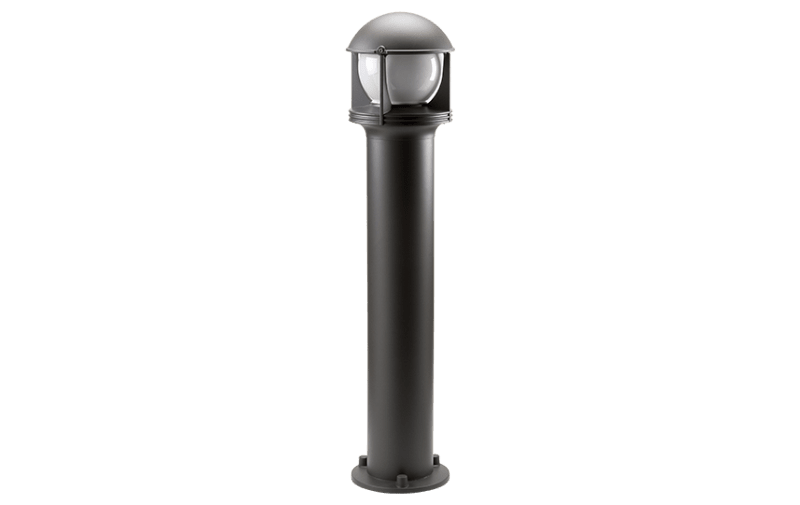

OPUS Bollard Graphite 11,5W/830
Part number623736EAN / GTIN7021986237368HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623736 KL In, IP65, 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 623736
- EAN / GTIN
- 7021986237368
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 11.5 W
- Efficacy
- 36/37/34/36lm/W
- Lumen
- 320lm/330lm/610lm/640lm
- Wattage
- 9W/18W
- IP Class
- IP65
- Colour temperature
- 3000/4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B50>
- Mounting
- Onto surfaces or ground anchor, Outdoor
- Voltage
- 220-240V
- Type of light source
- LED
- Luminous flux
- 320lm/330lm/610lm/640lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 360°
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Height (mm) H
- 970
- Diameter (mm) D
- 216
- Weight (kg) gross/net
- 6.36 / 5.12
- Packaging dimensions (mm)
- 230 x 230 x 990
- Protection class according to IEC 61140
- II
- Width
- 216 mm
- Height
- 970 mm
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- Housing colour
- Anthracite
- Voltage type
- AC
- With movement sensor
- No
- Max. lamp power
- 11.5 W
- Suitable for lamp power
- 10 W
- Type of control gear
- Not required
- Colour rendering index CRI
- 80-89
- Diameter
- 216 mm
- With light sensor
- No
- Luminous intensity
- 585 cd
- Number of poles
- 2
- Length
- 970 mm
- Height/depth
- 970 mm
- Housing material
- Aluminium
- Lamp type
- LED exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Material cover
- Plastic, opal
- Impact strength
- IK10
- Nominal voltage
- 220–240 V
- Degree of protection (IP)
- IP65
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- No
- Max. system power
- 18 W
- Rated luminous flux according to IEC 62722-2-1
- 585 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Luminaire efficacy
- 36 lm/W
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A+
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- Positions
- Luminous flux adjustable
- Positions
- Beam angle adjustable
- No
- Exchangeable control gear
- No
- Power factor
- 0.9
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986237368
- SAP 1000095333
- Code 8878066
Product Documentation
Document preview: OPUS Bollard Graphite 11,5W/830 (623736) — Specification sheet
