SG Armaturen

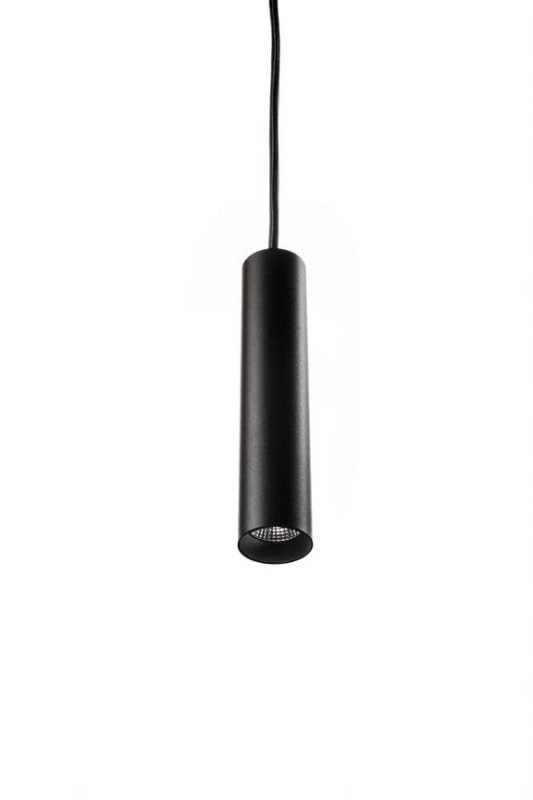

ZIP TUBE Pendant Micro Black 7W/927 40°
Part number320628EAN / GTIN7021983206282HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320628 ZIP TUBE PENDANT MICRO black 2700K, 7W, 330lm, RA98, SDCM 2, L90/B10, A, Class II, IP20, A.
Technical Specifications
- Manufacturer part number (MPN)
- 320628
- EAN / GTIN
- 7021983206282
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 7 W
- Efficacy
- 51 lm/W
- Lumen
- 360lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Indoor
- System wattage
- 7W
- Voltage
- 220-240V
- Type of light source
- LED
- Luminous flux
- 360lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector medium
- Beam angle
- 40°
- UGR
- UGR<19
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Module
- 190mm Pendant
- Connection
- Zip track (adapter included)
- Length (mm) L
- 204
- Width (mm) W
- 39
- Height (mm) H
- 204
- Weight (kg) gross/net
- 0.476 / 0.397
- Packaging dimensions (mm)
- 204 x 39 x 204
- Operation by Bluetooth
- No
- Device emplacement
- Indoor positioning
- With movement sensor
- No
- Nominal operation time
- 8–12
- RAL-number
- 9005
- Lamp type
- LED not exchangeable
- Suitable for number of light sources
- 1
- Housing material
- Aluminium
- Housing colour
- Black
- Material cover
- Plastic, structured
- Voltage type
- AC
- Type of control gear
- Not required
- No dim function
- No
- Colour consistency (McAdam ellipse)
- SDCM2
- Light outlet
- Direct
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A
- Lowest energy efficiency class of the exchangeable lamp
- A
- Rated life time L90/B10 at 25 °C
- 50000 h
- Degree of protection (IP)
- IP20
- Impact strength
- IK00
- Protection class according to IEC 61140
- II
- Filament test according to IEC 60695-2-11
- None
- Max. system power
- 7 W
- Rated luminous flux according to IEC 62722-2-1
- 360 lm
- Luminaire efficacy
- 51 lm/W
- Colour rendering index CRI
- 90-100
- Unified Glare Ratio (UGR)
- 17.1
- Constant light output (CLO)
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 39 mm
- Height/depth
- 204 mm
- Length
- 204 mm
- Diameter
- 39 mm
- Type of wiring
- Suitable for loop-through wiring
- Number of poles
- 2
- Conductor cross section
- 2.5 mm²
- Dimmable
- Yes
- With light sensor
- No
- With presence detector
- No
- Emergency power supply system
- None
- Emergency function monitoring system
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983206282
- SAP 1200332026
- Code 82324554
Product Documentation
Document preview: ZIP TUBE Pendant Micro Black 7W/927 40° (320628) — Specification sheet
