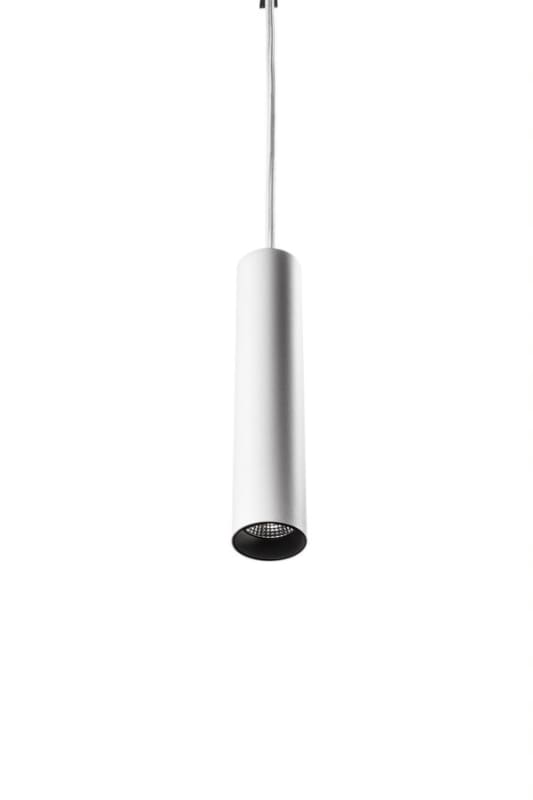

ZIP TUBE Pendant Micro White 7W/DTW 40°

SG Armaturen 320627 ZIP TUBE PENDANT MICRO white DTW, 7W, 340lm, RA95, SDCM 2, L90/B10, A, Class II, IP20, A.

Manufacturer part number (MPN)

320627

EAN / GTIN

7021983206275

Sales unit

pcs

Package quantity

10 pcs

Power

7 W

Efficacy

49 lm/W

Lumen

340lm

IP Class

IP20

Colour temperature

2000-2800K

Colour rendering (Ra)

Ra>95

Lifetime

50,000 L90/B10>

Mounting

Surface, Indoor

System wattage

7W

Voltage

220-240V

Type of light source

LED

Luminous flux

340lm

MacAdams factor

SDCM: 3

Light distribution

Direct

Optic

Reflector medium

Beam angle

40°

UGR

UGR<19

Type

Trailing edge

Luminaire class

Class II

Contains light source of energy class

F

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Aluminium

Colour

White (RAL 9003)

Optics

UV-stabilized polycarbonate

Module

190mm Pendant

Connection

Zip track (adapter included)

Length (mm) L

204

Width (mm) W

39

Height (mm) H

204

Weight (kg) gross/net

0.476 / 0.397

Packaging dimensions (mm)

204 x 39 x 204

Operation by Bluetooth

No

Device emplacement

Indoor positioning

With movement sensor

No

Nominal operation time

8–12

RAL-number

9003

Lamp type

LED not exchangeable

Suitable for number of light sources

1

Housing material

Aluminium

Housing colour

White

Material cover

Plastic, structured

Voltage type

AC

Type of control gear

Not required

No dim function

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A

Lowest energy efficiency class of the exchangeable lamp

A

Rated life time L90/B10 at 25 °C

50000 h

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

II

Filament test according to IEC 60695-2-11

None

Max. system power

7 W

Rated luminous flux according to IEC 62722-2-1

340 lm

Luminaire efficacy

49 lm/W

Colour rendering index CRI

90-100

Unified Glare Ratio (UGR)

16.2

Colour of light adjustable

Continuously variable

Luminous flux adjustable

Continuously variable

Beam angle adjustable

No

Width

39 mm

Height/depth

204 mm

Length

204 mm

Diameter

39 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

2

Conductor cross section

2.5 mm²

Dimmable

Yes

With light sensor

No

With presence detector

No

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

China

HS Code

9405.11

• EAN 7021983206275
• SAP 1200332025
• Code 82324556
