SG Armaturen

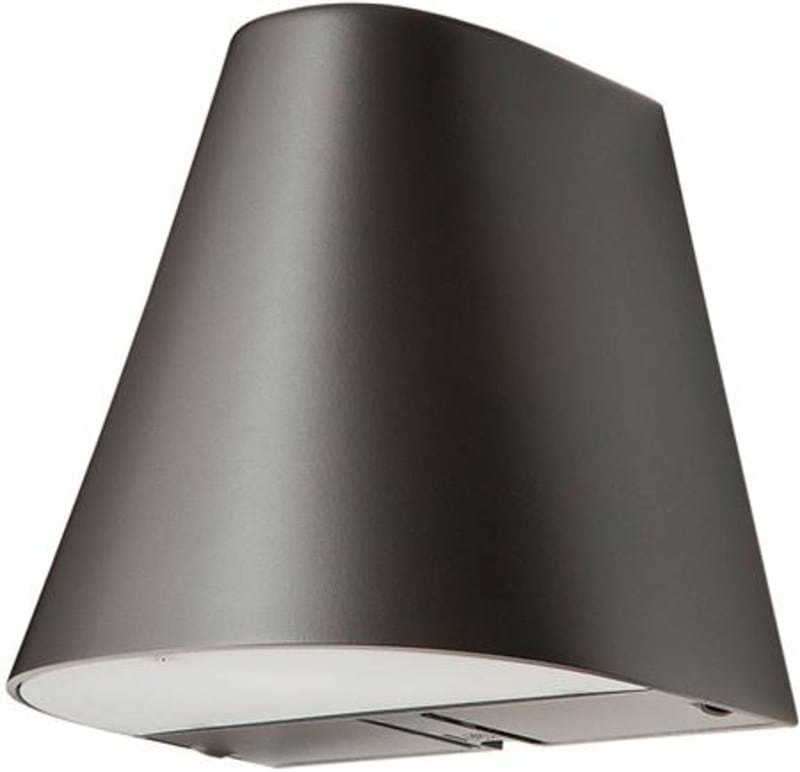

Spike Graphite 11W/827
Part number623930EAN / GTIN7021986239300HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623930 L70/B50>50 000 hours, 720lm, 66 lm/W, SDCM3, IP44, IK08, KL In, phase-cut, BREEAM.
Technical Specifications
- Manufacturer part number (MPN)
- 623930
- EAN / GTIN
- 7021986239300
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 11 W
- Efficacy
- 104 lm/W
- Lumen
- 830lm
- IP Class
- IP44
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L90/B10>
- Mounting
- Surface, Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 830lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 95°
- ULOR (<1%)
- Yes
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Width (mm) W
- 171
- Height (mm) H
- 173
- Depth (D)
- 155
- Weight (kg) gross/net
- 1.764 / 1.47
- Packaging dimensions (mm)
- 180 x 165 x 185
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986239300
- SAP 1200088150
- Code 81951626
Product Documentation
Document preview: Spike Graphite 11W/827 (623930) — Specification sheet
More from SG Armaturen
SG Armaturen
Stripline Diffuser OPAL 1,8M
391459
SG Armaturen
ZIP 230V Black RAIL Cover 1,15M
003021
SG Armaturen
Hamlet White E27 (611120)
SG Armaturen

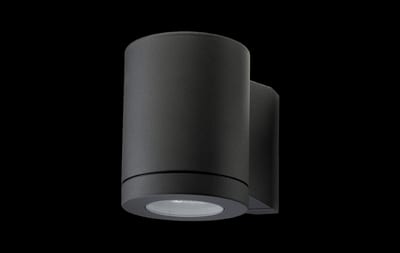

Metro Black GU10 1X4,5W/827 IP54
614691
SG Armaturen
Junistar LUX White 7W/927 DALI
902509
SG Armaturen

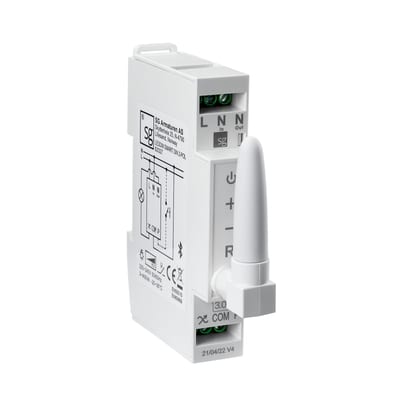

Jointim Smart DIN 2-Pole 3.0
820812
SG Armaturen

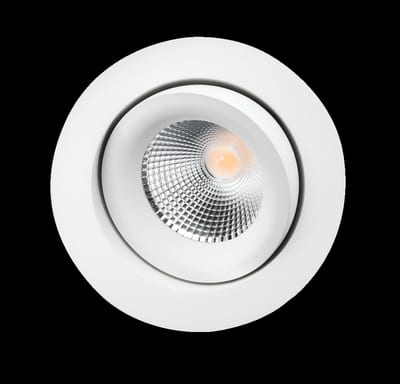

Junistar LUX White 7W/930 DALI
902510
SG Armaturen

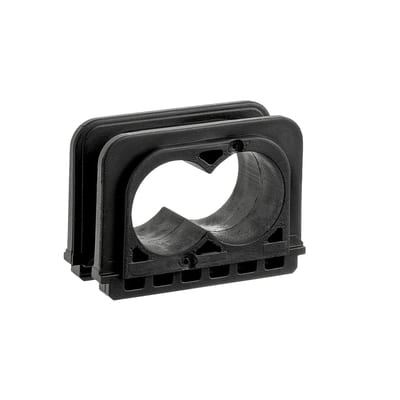

Sammenconnection IP44/IP55 Black
