SG Armaturen

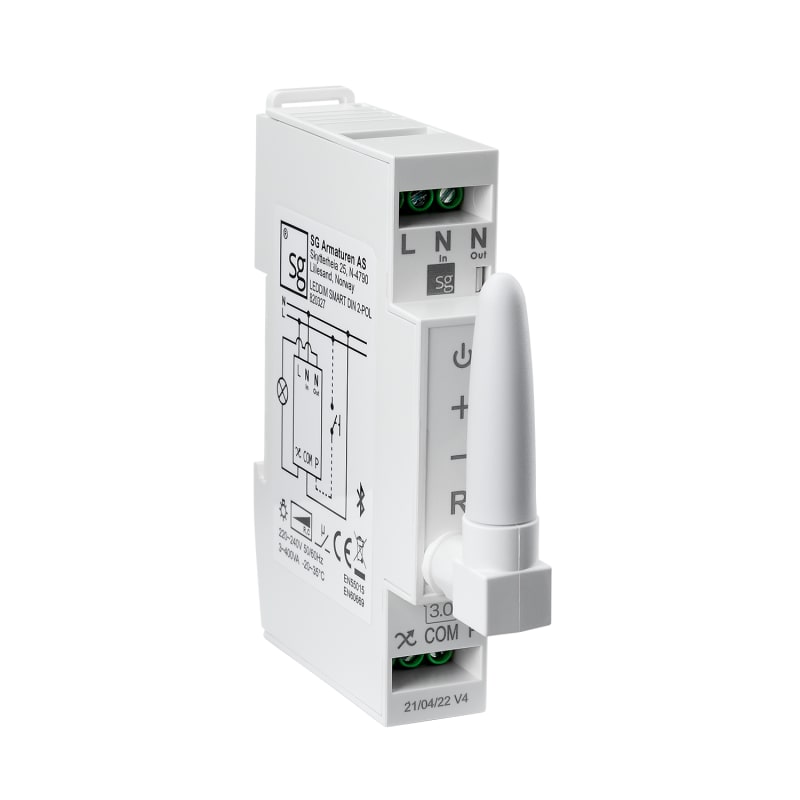

Jointim Smart DIN 2-Pole 3.0
Part number820812EAN / GTIN7021988208120HS code8536.50
Electrical Components
Switches & Dimmers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820812 LEDDIM DIN 2-POLE 3.0.
Technical Specifications
- Manufacturer part number (MPN)
- 820812
- EAN / GTIN
- 7021988208120
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Number of poles
- 2P
- Wattage
- 400VA
- IP Class
- IP20
- Mounting
- DIN rail, Indoor
- Function
- Integrated time control and astronomical clock
- Standby power
- <0.5W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Overvoltage protection
- Yes
- Overload protection
- Yes
- Minimum dim level is adjustable
- Yes
- Type
- SG Smart/ Trailing edge / On-Off
- Luminaire class
- Class II
- Housing
- Polycarbonat (PC)
- Colour
- White
- Module
- 2-pole
- Connection
- Screw terminal 0.5 - 2.5 mm²
- Length (mm) L
- 90
- Width (mm) W
- 18
- Height (mm) H
- 83
- Weight (kg) gross/net
- 0.124 / 0.11
- Packaging dimensions (mm)
- 98 x 25 x 87
- Mounting method
- Module frame
- Assembly arrangement
- Basic element
- Halogen free
- Yes
- Number of units
- 1
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Power consumption
- 0.5 W
- Material quality
- Thermoplastic
- Type of load
- Universal and LED Retrofit
- Material
- Plastic
- Type of fastening
- Click in mounting
- Light value memory
- Yes
- Substation input
- Yes
- RAL-number (similar)
- 9003
- Serial dimmer
- Yes
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Impact strength
- IK00
- Nominal voltage
- 220–240 V
- Control voltage
- 24–240 V
- Transparent
- No
- Surface finishing
- Matt
- Suitable for degree of protection (IP)
- IP20
- Core cross section
- 0.5–4 mm²
- Device width
- 18 mm
- Device height
- 90 mm
- Device depth
- 85 mm
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Min. depth of built-in installation box
- 0 mm
- App control via Bluetooth
- Yes
- Nominal power resistive load
- 400 W
- Nominal power capacitive load
- 400 VA
- Compatible with Apple HomeKit
- Yes
- Compatible with Google Assistant
- Yes
- Compatible with Amazon Alexa
- Yes
- Max. switching power LED
- 320 W
- Min. brightness controllable
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988208120
- SAP 1201008590
- Code 84361958
Product Documentation
Document preview: Jointim Smart DIN 2-Pole 3.0 (820812) — Specification sheet
