SG Armaturen

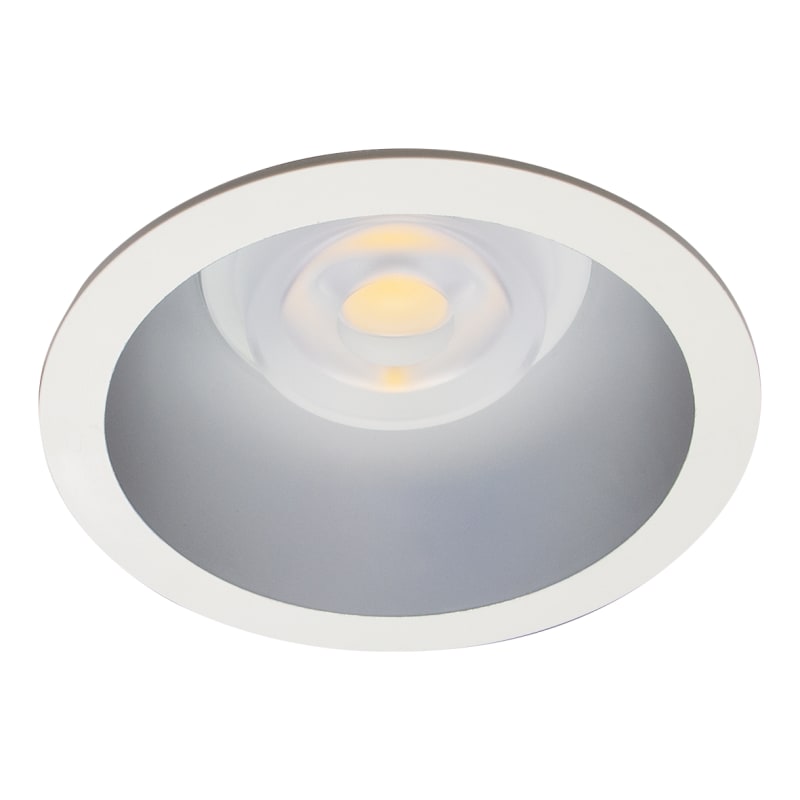

RAX SOFT 150 Satin ASYM 1600 15W/830
Part number212532EAN / GTIN7021982125324HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212532 RAX SOFT 150 SATIN ASYMMETRIC 1600 3000K 15W, SDCM 2, Class II SELV, IP44/20, IK08, L90/B10 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212532
- EAN / GTIN
- 7021982125324
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 15 W
- Efficacy
- 110 lm/W
- Lumen
- 1430lm
- IP Class
- IP54/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 13W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 43, B16: 69, C10: 68, C16: 110
- Type of light source
- LED
- Luminous flux
- 1430lm
- Emergency lumen
- 320lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Photobiological safety
- RG 1
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 83
- Diameter (mm) D
- 166
- Cut-out (mm)
- 150
- Ceiling void depth (mm)
- 80
- Weight (kg) gross/net
- 0.97 / 0.77
- Packaging dimensions (mm)
- 190 x 190 x 92
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125324
- SAP 1200566414
- Code 82925828
Product Documentation
Document preview: RAX SOFT 150 Satin ASYM 1600 15W/830 (212532) — Specification sheet
More from SG Armaturen
SG Armaturen
WAX Flood 27° 41W/840 GREY IP66
8246090672
SG Armaturen
RAX SOFT 150 Satin 3000 26W/830
212510
SG Armaturen
Frame Black 7,5W/830 Sensor
605553
SG Armaturen
Tanto Graphite 11,5W/830 IP65 Sensor
643541
SG Armaturen
Spike Graphite 10W/840 2XPLUG
623937
SG Armaturen
Dome Largo OPAL (606)
SG Armaturen
Shopline 3T DALI Monopoint RAIL White
312530
SG Armaturen
RAX SOFT 150 Satin 3000 26W/830 DALI
212511
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
