SG Armaturen
Frame Black 7,5W/830 Sensor
Part number605553EAN / GTIN7021986055535HS code8536.90
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 605553 FRAME BLACK LED 3000K SENSOR.
Technical Specifications
- Manufacturer part number (MPN)
- 605553
- EAN / GTIN
- 7021986055535
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 7.5 W
- Efficacy
- 99 lm/W
- Lumen
- 740lm
- IP Class
- IP66
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B20>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 7.5W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 740lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR<25
- Photobiological safety
- RG 0
- ULOR (<1%)
- Yes, when ceiling mounted
- Type
- Sensor
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 320
- Width (mm) W
- 180
- Height (mm) H
- 77
- Weight (kg) gross/net
- 2.47 / 1.9
- Packaging dimensions (mm)
- 328 x 188 x 92
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021986055535
- SAP 1200117325
- Code 81972270
Product Documentation
Document preview: Frame Black 7,5W/830 Sensor (605553) — Specification sheet
More from SG Armaturen
SG Armaturen
Tanto Graphite 11,5W/830 IP65 Sensor
643541
SG Armaturen
Spike Graphite 10W/840 2XPLUG
623937
SG Armaturen
Dome Largo OPAL (606)
SG Armaturen

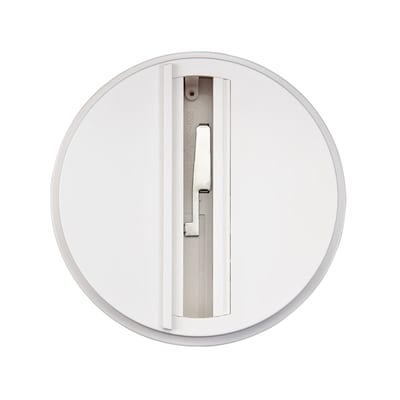

Shopline 3T DALI Monopoint RAIL White
312530
SG Armaturen

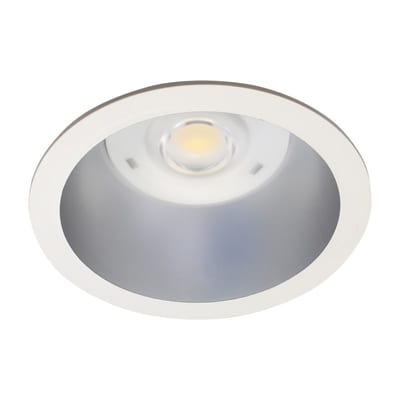

RAX SOFT 150 Satin 3000 26W/830 DALI
212511
SG Armaturen

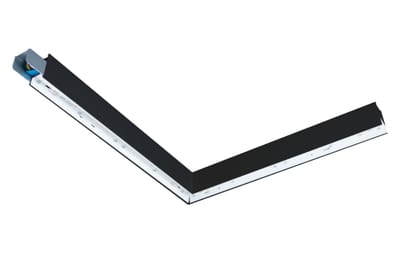

Lineal S Corner Black 18W/840 DALI
8246094733
SG Armaturen

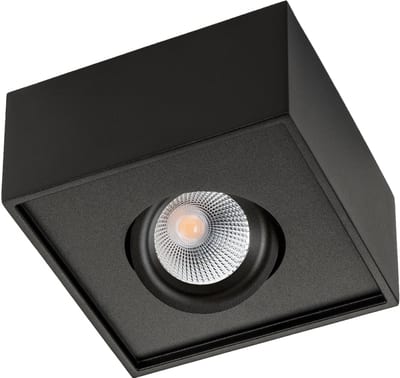

CUBE LUX Black 7W/930
902546
SG Armaturen

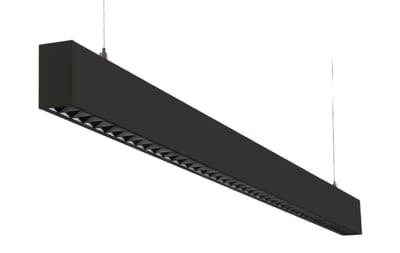

Inspire 1200 Black 34W/840 DALI
