SG Armaturen

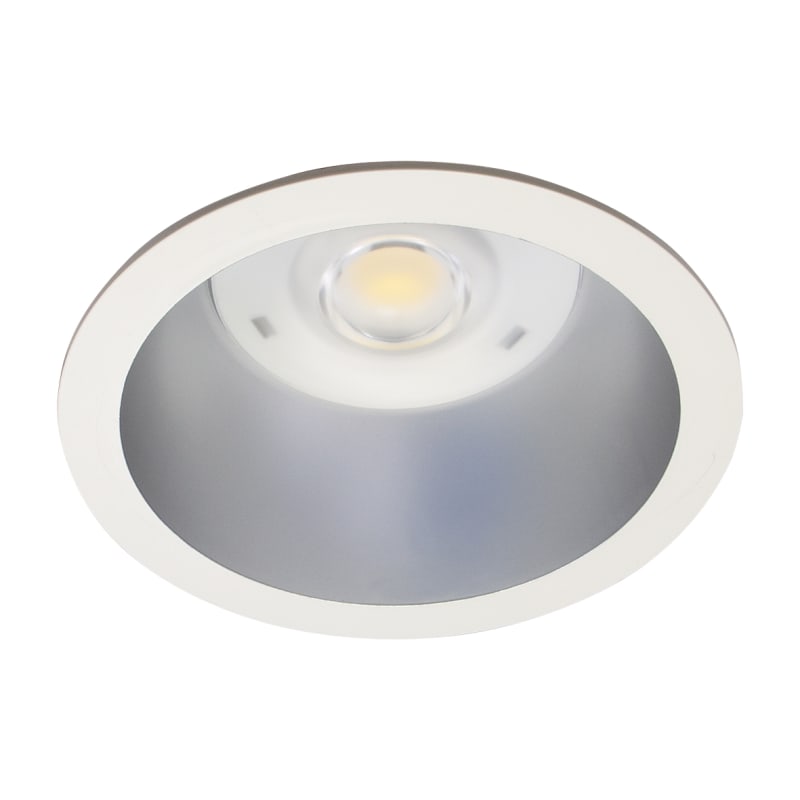

RAX SOFT 150 Satin 2200 18W/830
Part number212504EAN / GTIN7021982125041HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 212504 RAX SOFT 150 SATIN 2200 3000K 18W, SDCM 2, Class II SELV, IP44/20, IK08, L90/B10 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 212504
- EAN / GTIN
- 7021982125041
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 18 W
- Replaces
- 8246093174
- Efficacy
- 122 lm/W
- Lumen
- 2310lm
- IP Class
- IP54/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 19W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 2310lm
- Emergency lumen
- 380lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Satin Matt Reflector
- Beam angle
- 68°
- UGR
- UGR<22 up to 700 mA/2970 lm
- Photobiological safety
- RG 1
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- IK Class
- IK07
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Flame retardant polycarbonate
- Colour
- White/Satin mat
- Optics
- Polycarbonat (PC)
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 83
- Diameter (mm) D
- 166
- Cut-out (mm)
- 150
- Ceiling void depth (mm)
- 80
- Weight (kg) gross/net
- 0.97 / 0.77
- Packaging dimensions (mm)
- 190 x 190 x 92
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982125041
- SAP 1200566386
- Code 82925887
Product Documentation
Document preview: RAX SOFT 150 Satin 2200 18W/830 (212504) — Specification sheet
