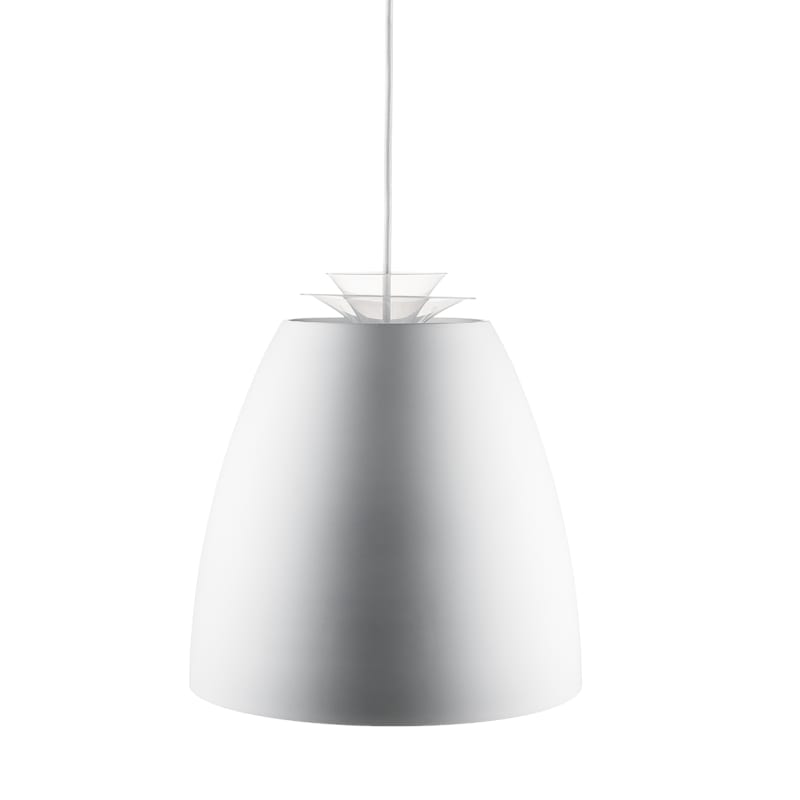

BELL MAXI White/GOLD 15W/927 H:317

SG Armaturen 312371 BELL MAXI WHITE/GOLD 2700K 15W 820lm, RA>90, CLASS II, IP20, SDCM 3, L70/B50.

Manufacturer part number (MPN)

312371

EAN / GTIN

7021983123718

Sales unit

pcs

Power

15 W

Replaces

312366

Efficacy

55 lm/W

Lumen

820lm

IP Class

IP20

Colour temperature

2700K

Colour rendering (Ra)

Ra>90

Lifetime

50,000 L70/B50>

Mounting

Surface, Indoor

System wattage

15W

Voltage

220-240V

Type of light source

LED

Socket

E27

Light source included

Yes

Luminous flux

820lm

MacAdams factor

SDCM: 3

Light distribution

Direct/Indirect

Optic

Opal

UGR

UGR<19

Type

Trailing edge

Luminaire class

Class II

Contains light source of energy class

G

Breeam

Fulfils Hea 01 for flicker free lighting

Housing

Sheet steel

Optics

UV-stabilized polycarbonate

Module

Pendant

Cable

Cable 3m

Connection

Screwless terminal block

Height (mm) H

317

Diameter (mm) D

300

Weight (kg) gross/net

2.47 / 1.5

Packaging dimensions (mm)

314 x 314 x 370

Operation by Bluetooth

No

Device emplacement

Indoor positioning

With movement sensor

No

Nominal operation time

8–12

RAL-number

9003

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

Incandescent lamp

With light source

Yes

Suitable for number of light sources

1

Lamp holder

E27

Housing material

Aluminium

Housing colour

White

Type of grid

Matt

Voltage type

AC

Nominal voltage

220–240 V

Type of control gear

Not required

With control gear

No

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DALI-2

No

Dimming DMX

No

Dimming programmable

No

Dimming DSI

No

Dimming RF

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

Yes

Dimming phase cut-on (leading edge)

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Direct-/indirect proportion separately controllable

No

Energy efficiency class of the built-in lamp

A++, A+, A (LED)

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

A+

Rated lifetime L70/B50 at 25 °C

50000 h

Degree of protection (IP)

IP20

Impact strength

IK00

Protection class according to IEC 61140

II

Suitable for emergency lighting

No

Filament test according to IEC 60695-2-11

None

Suitable for lamp power

15 W

Max. system power

15 W

Rated luminous flux according to IEC 62722-2-1

820 lm

Colour of light

White

Luminaire efficacy

55 lm/W

Colour rendering index CRI

90-100

Power factor

104

Constant light output (CLO)

No

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Width

300 mm

Height/depth

317 mm

Length

317 mm

Diameter

300 mm

With suspension

Yes

Pendant length

3000 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

2

Conductor cross section

0.1 mm²

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Dimmable

Yes

With light sensor

No

With presence detector

No

Emergency power supply system

None

Emergency function monitoring system

None

Country of origin

China

HS Code

9405.11

• EAN 7021983123718
• SAP 1200573201
• Code 82931166
