SG Armaturen
Socket Recessed Double WITH USB 2XC Black
Part number77113EAN / GTIN7021987711317HS code8536.90
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

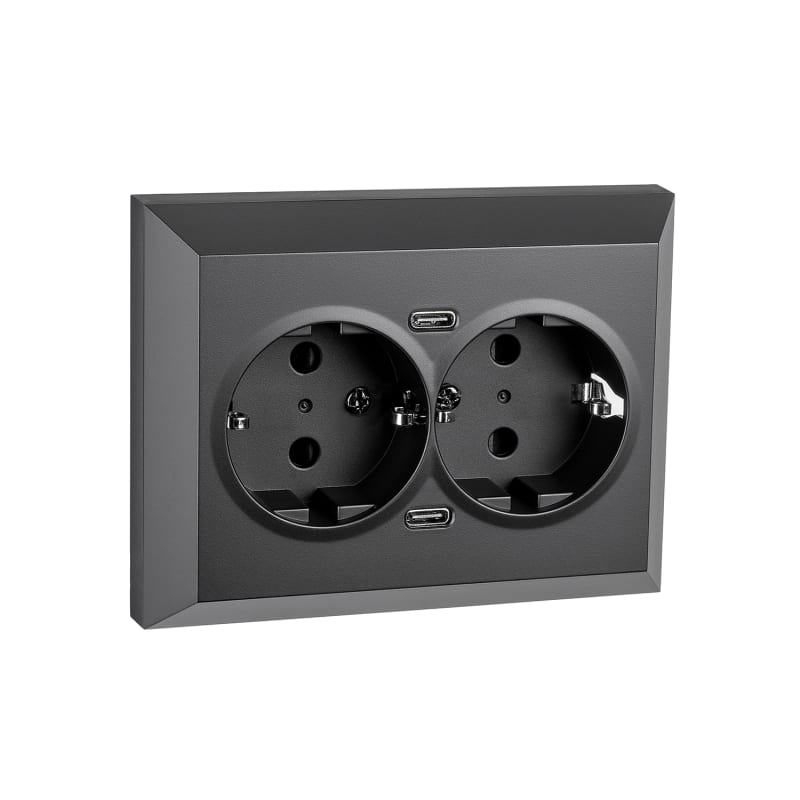

SG Armaturen 77113 SOCKET RECESSED DOUBLE WITH USB 2XC BLACK.
Technical Specifications
- Manufacturer part number (MPN)
- 77113
- EAN / GTIN
- 7021987711317
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with full cover plate
- Colour
- Black
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Lockable
- No
- With hinged lid
- No
- Surface protection
- Untreated
- With signal lamp
- No
- Number of socket outlets
- 2
- Number of phases
- 2
- With enhanced contact protection
- No
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- Yes
- Overvoltage protection
- Yes
- Fault current protection
- No
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- Mounting direction
- Horizontal and vertical
- RAL-number (similar)
- 9004
- Concurrently switching neutral conductor
- Yes
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- Yes
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP21
- Device width
- 84 mm
- Device height
- 108 mm
- Device depth
- 56 mm
- With function lighting
- No
- With orientation lighting
- No
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Number of active contacts (round)
- 2
- Min. depth of built-in installation box
- 35 mm
- With Wi-Fi signal repeater
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Max. current rating of USB power supply
- 3 A
- With built-in bluetooth speaker
- No
- Number of ports USB-C
- 2
- Protective contact
- Flat
- Number of loop throughs
- 1
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021987711317
- SAP 1201034917
- Code 84410872
Product Documentation
Document preview: Socket Recessed Double WITH USB 2XC Black (77113) — Specification sheet
More from SG Armaturen
SG Armaturen

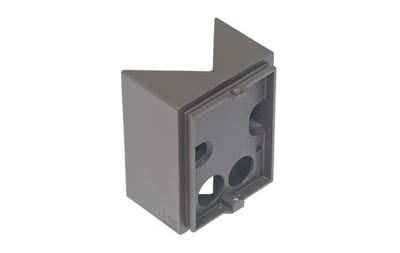

Corner Bracket Graphite FOR ECHO AND Metro
623207
SG Armaturen

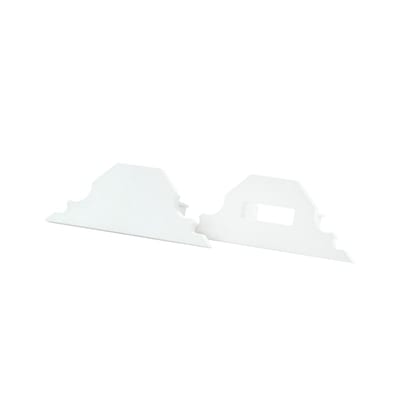

Stripline END CAP KIT Corner White
391450
SG Armaturen

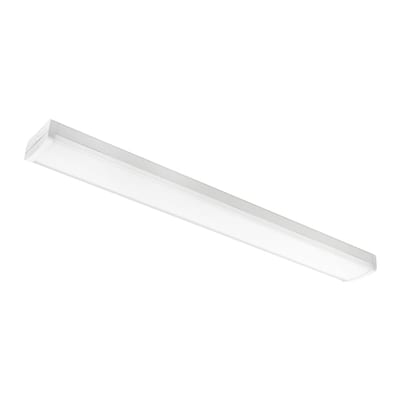

Hurdal MAXI 1200 4K Sensor DIM
113137
SG Armaturen
WALL Cover WITH Strain relief White
79930
SG Armaturen

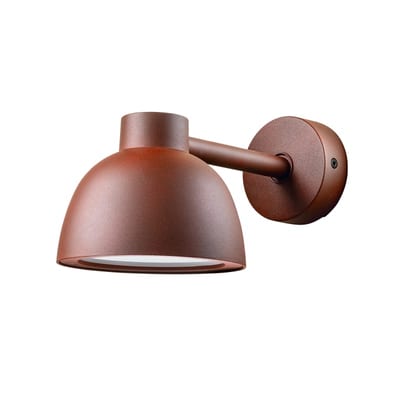

Herning WALL MINI Corten
623968
SG Armaturen

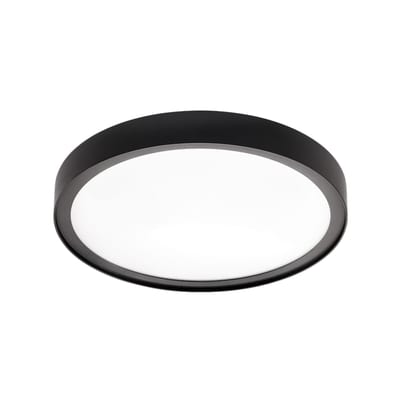

DISC 360 Black 21W/830
606220
SG Armaturen

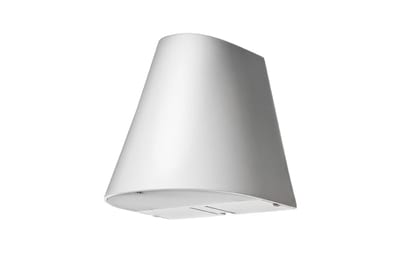

Spike White 11W/830 (611910)
SG Armaturen

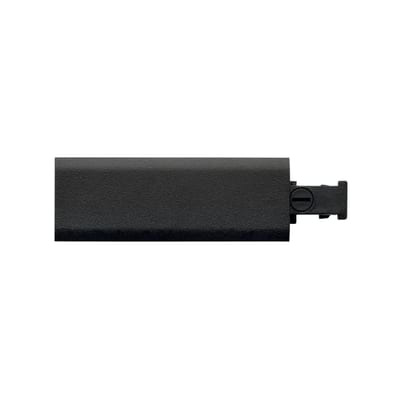

SG Armaturen ZIP Recessed End Connector, Black
