SG Armaturen

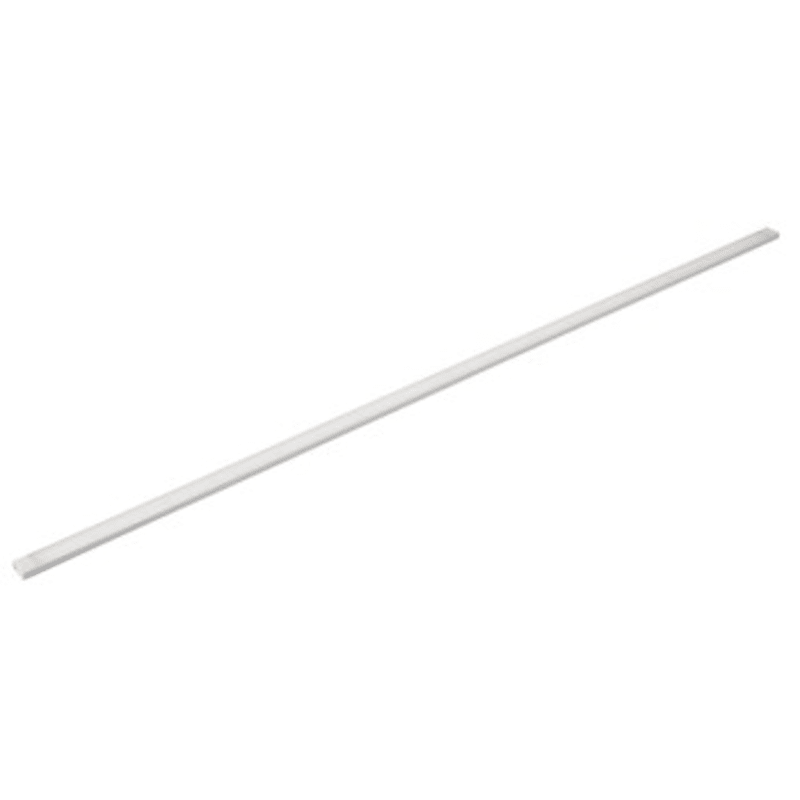

Slimline PRO 870mm 9,5W/927
Part number391240EAN / GTIN7021983912404HS code9405.11
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 391240 Service life 50 000t, RA>90, SDCM3.
Technical Specifications
- Manufacturer part number (MPN)
- 391240
- EAN / GTIN
- 7021983912404
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 9.5 W
- Efficacy
- 132 lm/W
- Lumen
- 1250lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L70/B50>
- Mounting
- Surface, Indoor
- System wattage
- 9.5W
- Voltage
- 24V
- Type of light source
- LED
- Luminous flux
- 1250lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 110°
- UGR
- UGR>28
- Photobiological safety
- RG 0
- Luminaire class
- Class III
- Energy efficency class
- F
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- White
- Optics
- Polycarbonat (PC)
- Module
- 870
- Length (mm) L
- 870
- Width (mm) W
- 17
- Height (mm) H
- 7
- Weight (kg) gross/net
- 0.156 / 0.13
- Packaging dimensions (mm)
- 918 x 21 x 11
- Luminaire efficacy
- 131 lm/W
- Model
- Strip
- Mounting method
- Surface mounting
- Lamp type
- LED not exchangeable
- Number of nodes per meter
- 144
- Number of nodes per foot
- 43
- Lamp power per meter
- 11 W
- Lamp power per foot
- 3.5 W
- Luminous flux per meter
- 1437 lm
- Voltage type
- DC
- Lamp voltage
- 24 V
- Type of control gear
- LED operating device voltage-controlled
- Suitable for dimmer
- Yes
- Exchangeable control gear
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A+
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Degree of protection (IP)
- IP20
- Protection class according to IEC 61140
- III
- Max. system power
- 9 W
- Colour of light
- White
- Colour rendering index CRI
- 90-100
- Power factor
- 100
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Width
- 17 mm
- Height/depth
- 7 mm
- Length
- 894 mm
- Length of particular segments
- 870 mm
- With end piece
- Yes
- With connection set
- No
- With protective cover
- No
- Self-adhesive
- Yes
- Type of wiring
- Ending
- Number of poles
- 2
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983912404
- SAP 1200071091
- Code 81919065
Product Documentation
Document preview: Slimline PRO 870mm 9,5W/927 (391240) — Specification sheet
More from SG Armaturen
SG Armaturen
Namsen 600 12W/827 M/2XPLUG
112022
SG Armaturen
ZIP 1T TUBE MINI White 14W/927 40° DIM
320608
SG Armaturen
Rehab RING 133mm White IN/OUT
009223
SG Armaturen
Namsen 1200 26W/830 M/2XPLUG
112025
SG Armaturen
IP68 Gel box-In WITH Connector Black
78740
SG Armaturen
Hurdal 1200 24W/830 (113101)
SG Armaturen
Namsen 1200 26W/827 M/2XPLUG
112024
SG Armaturen

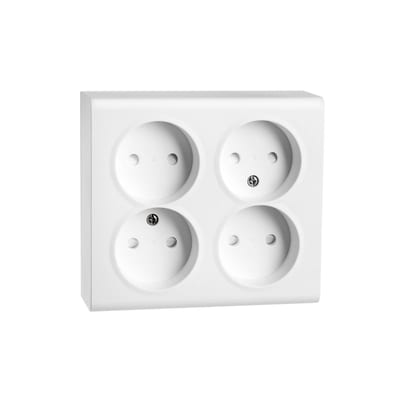

SG Armaturen PV 4-Way Surface-Mounted Socket without Earth White
