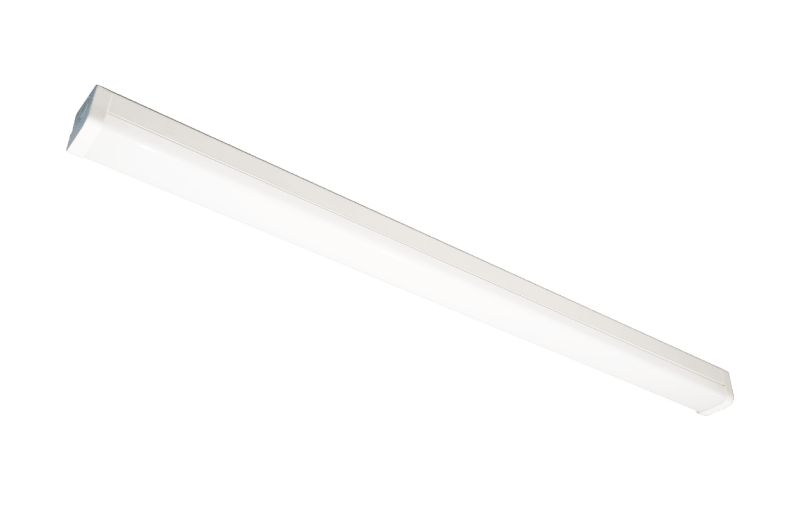

Hurdal 1200 24W/830 (113101)
Part number113101EAN / GTIN7021981131012HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 113101 HURDAL 1200 3000K, Ra>80, SDCM:3, Class In, IP44, 100.000, L80/B20>.
Technical Specifications
- Manufacturer part number (MPN)
- 113101
- EAN / GTIN
- 7021981131012
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 24 W
- Efficacy
- 144 lm/W
- Adjustable luminous flux
- 2872lm - 4048lm
- Lumen
- 3460lm
- IP Class
- IP44
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 24W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 14, B16: 23, C10: 22, C16: 36
- Leakage current (mA)
- 0.25
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 3460lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- UGR
- UGR<25
- Visible flicker (PstLM)
- 0.09
- Stroboscopic flicker (SVM)
- 0.03
- Photobiological safety
- RG 0
- Type
- On/Off
- Luminaire class
- Class I
- IK Class
- IK07
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Steel
- Optics
- UV-stabilized polycarbonate
- Module
- 1200
- Connection
- 3 pole Screwless terminal block
- Length (mm) L
- 1200
- Width (mm) W
- 72
- Height (mm) H
- 76
- Weight (kg) gross/net
- 1.9 / 1.65
- Packaging dimensions (mm)
- 1223 x 76 x 88
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981131012
- SAP 1200706150
- Code 83751126
Product Documentation
Document preview: Hurdal 1200 24W/830 (113101) — Specification sheet
