SG Armaturen

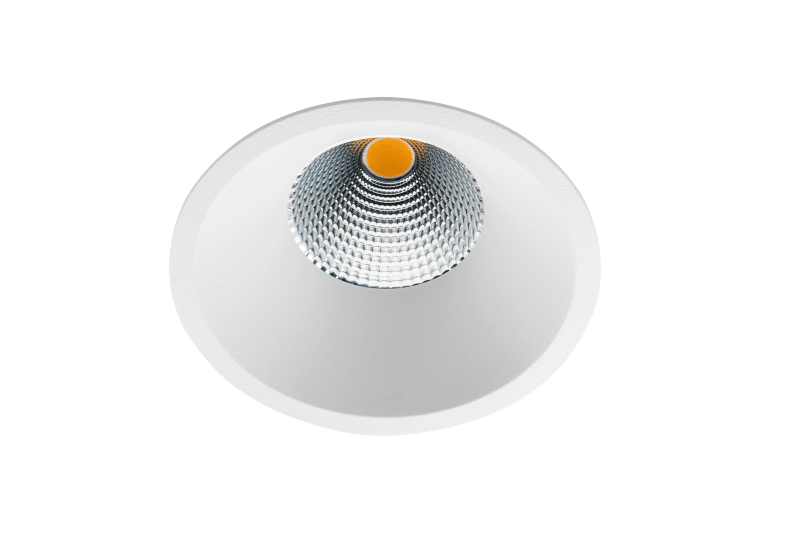

SOFT SLIM White 7W/D2W
Part number903216EAN / GTIN7021989032168HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 903216 SOFT SLIM Matte WHITE DTW.
Technical Specifications
- Manufacturer part number (MPN)
- 903216
- EAN / GTIN
- 7021989032168
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 7 W
- Efficacy
- 69 lm/W
- Lumen
- 550lm
- Wattage
- 7W
- IP Class
- IP54/IP20
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 50,000 L90/B10>
- Mounting
- Recessed, Indoor / Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 550lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 42°
- UGR
- UGR<19
- Photobiological safety
- RG 1
- Type
- Trailing edge
- Luminaire class
- Class II SELV
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- Tempered glass
- Connection
- 3 pol Linect / screwless terminal block
- Height (mm) H
- 52
- Diameter (mm) D
- 90
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 51
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.43 / 0.385
- Packaging dimensions (mm)
- 130 x 115 x 85
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989032168
- SAP 1200136357
- Code 81997105
Product Documentation
Document preview: SOFT SLIM White 7W/D2W (903216) — Specification sheet
More from SG Armaturen
SG Armaturen
SG Armaturen PV 4-Way Surface-Mounted Socket without Earth Black
77523
SG Armaturen
Controller RF RGBW (391455)
SG Armaturen

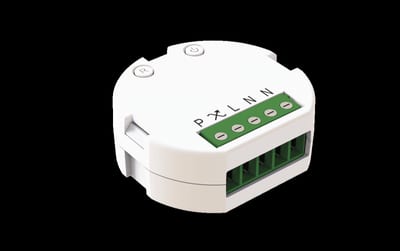

Jointim Smart White PILL Micro 100VA
820389
SG Armaturen

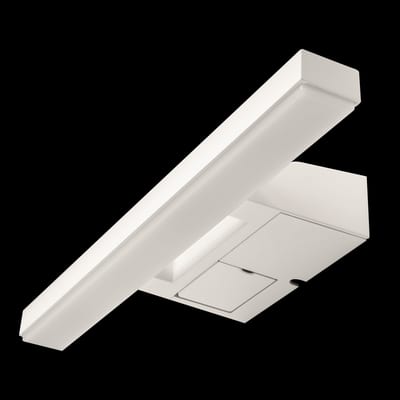

VIEW 460 White 16W/927 IP44 with Socket
111433
SG Armaturen

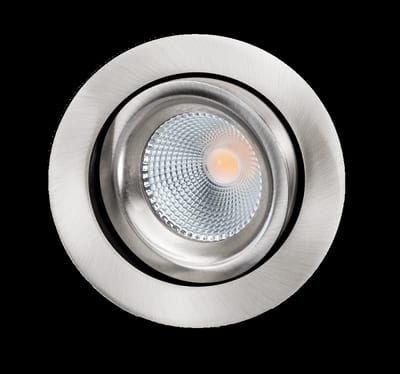

Junistar LUX Brushed Steel 7W/927
902503
SG Armaturen

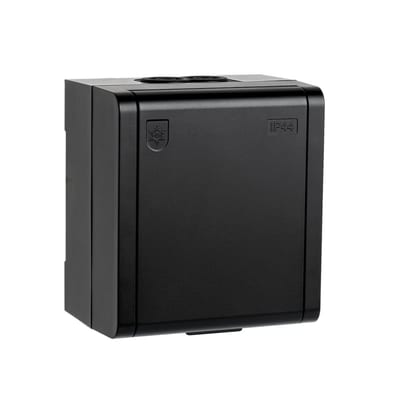

SG Armaturen PV IP44 Single Socket with Earth Black
77541
SG Armaturen

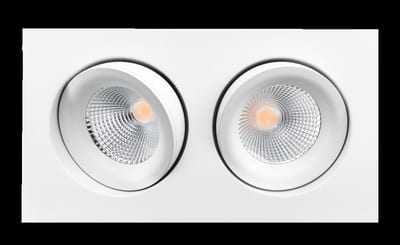

Junistar LUX SQ White 2X7W/927
902590
SG Armaturen

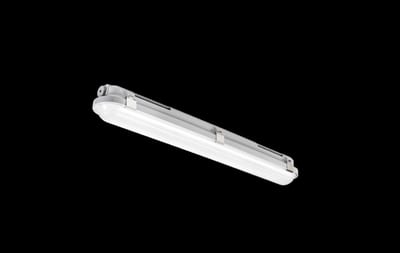

TYSNES66 650 14W/840
