SG Armaturen

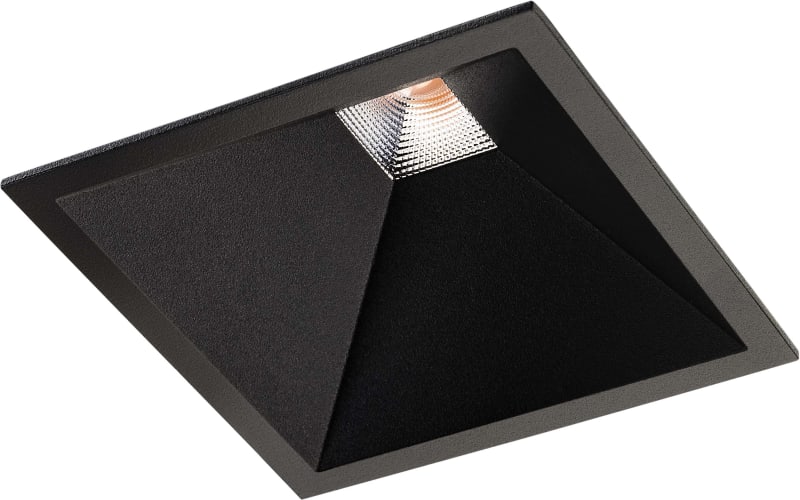

SOFT Square Black 12W/930 60° DALI
Part number903253EAN / GTIN7021989032533HS code9405.11
Lighting & Electrical Accessories
Downlights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 903253 L80/B10>100 000 hours, 1090lm, 64 lm/W, SDCM1, IP43, phase-cut.
Technical Specifications
- Manufacturer part number (MPN)
- 903253
- EAN / GTIN
- 7021989032533
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Power
- 12 W
- Efficacy
- 74 lm/W
- Lumen
- 890lm
- IP Class
- IP43/IP20
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra 98
- Lifetime
- 100,000 L80/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 12W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 32, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Luminous flux
- 890lm
- MacAdams factor
- SDCM: 1
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 60°
- UGR
- UGR<19
- Photobiological safety
- RG 1
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II SELV
- IK Class
- IK10
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Connection
- 5 pol Linect / screwless terminal block
- Length (mm) L
- 95
- Width (mm) W
- 95
- Height (mm) H
- 58
- Cut-out (mm)
- 83
- Ceiling void depth (mm)
- 57
- Weight (kg) gross/net
- 0.564 / 0.487
- Packaging dimensions (mm)
- 170 x 115 x 85
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989032533
- SAP 1200486506
- Code 82579169
Product Documentation
Document preview: SOFT Square Black 12W/930 60° DALI (903253) — Specification sheet
More from SG Armaturen
SG Armaturen
ZIP TUBE Pendant Micro 340mm (320506)
SG Armaturen

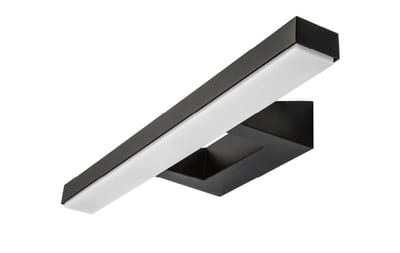

VIEW 460 Black 16W/940 IP44
114432
SG Armaturen

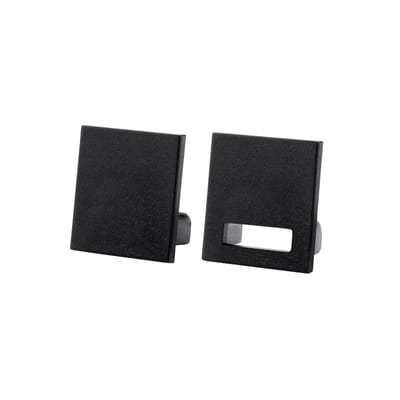

Stripline END CAP KIT SOFT Black
391468
SG Armaturen

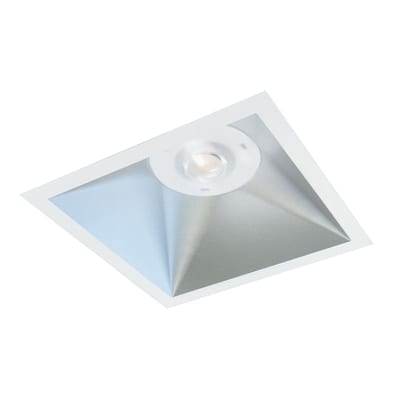

RAX SOFT Square 200 Satin 19W/840 DALI
212583
SG Armaturen
Frame Graphite 8W/830 Sensor
605563
SG Armaturen
Inspire R 300 White 27-65K 17W/TW Jointim
212450
SG Armaturen

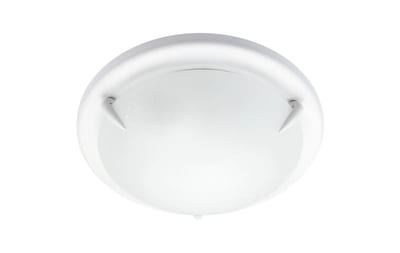

Glass Oyster Ceiling
2400
SG Armaturen

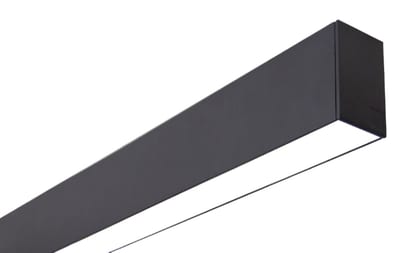

Lineal SURF 840 14W/840 Black DALI
