SG Armaturen

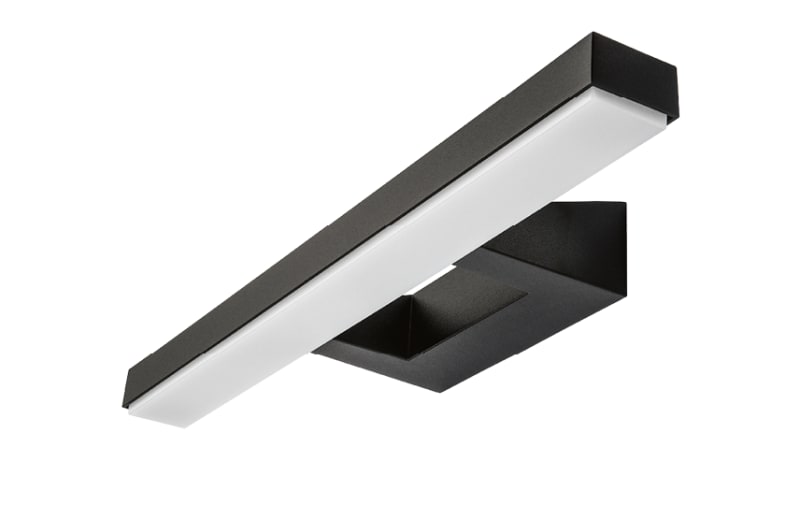

VIEW 460 Black 16W/940 IP44
Part number114432EAN / GTIN7021981144326HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 114432 VIEW BLACK 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 114432
- EAN / GTIN
- 7021981144326
- Sales unit
- pcs
- Package quantity
- 10 pcs
- IP rating
- IP44
- Power
- 16 W
- Efficacy
- 49 lm/W
- Lumen
- 790lm
- IP Class
- IP44 (mounted horizontally) / IP20 (mounted vertically)
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor
- System wattage
- 16W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 23, B16: 37, C10: 29, C16: 46
- Type of light source
- LED
- Luminous flux
- 790lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C-
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 460
- Width (mm) W
- 135
- Height (mm) H
- 60
- Depth (D)
- 135
- Weight (kg) gross/net
- 0.976 / 0.802
- Packaging dimensions (mm)
- 470 x 142 x 70
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981144326
- SAP 1200377549
- Code 82383969
Product Documentation
Document preview: VIEW 460 Black 16W/940 IP44 (114432) — Specification sheet
