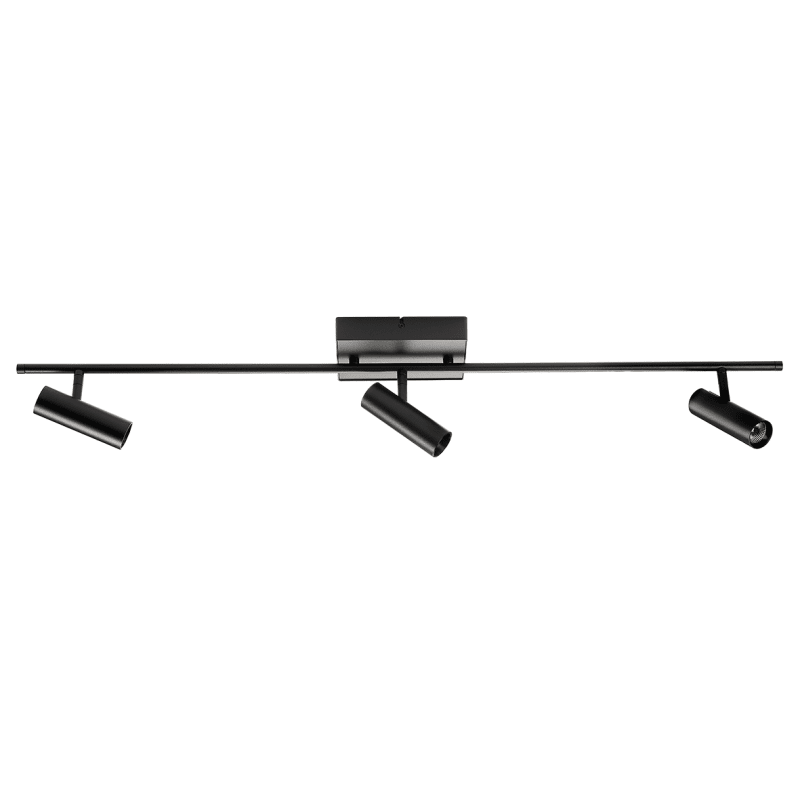

TUBE Micro Track Black 18W DTW 40°
Part number320704EAN / GTIN7021983207043HS code9405.11
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320704 TUBE MICRO TRACK BLACK DTW 18W, 960lm, RA>95, SDCM 2, Class In, IP20, L80/B20.
Technical Specifications
- Manufacturer part number (MPN)
- 320704
- EAN / GTIN
- 7021983207043
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 18 W
- Efficacy
- 53 lm/W
- Lumen
- 960lm
- IP Class
- IP20
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 50,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 18W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 43, B16: 69, C10: 43, C16: 69
- Type of light source
- LED
- Luminous flux
- 960lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 40°
- UGR
- UGR<19
- Type
- Trailing edge
- Luminaire class
- Class I
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 1000
- Width (mm) W
- 131
- Height (mm) H
- 182
- Weight (kg) gross/net
- 2.022 / 1.316
- Packaging dimensions (mm)
- 1010 x 138 x 160
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983207043
- SAP 1200509510
- Code 82651724
Product Documentation
Document preview: TUBE Micro Track Black 18W DTW 40° (320704) — Specification sheet
More from SG Armaturen
SG Armaturen
Inspire 1200 Black 32W/927
212876
SG Armaturen

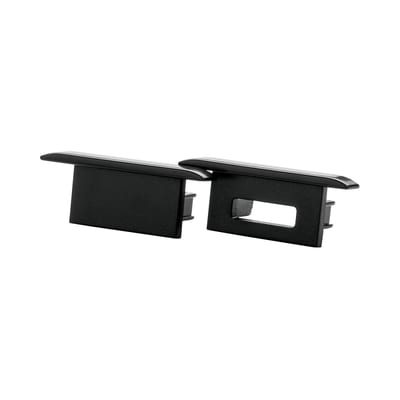

Stripline END CAP KIT Recessed Black
391446
SG Armaturen

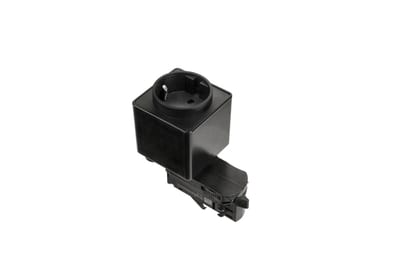

Shopline 3T Portable Connection Black
312442
SG Armaturen

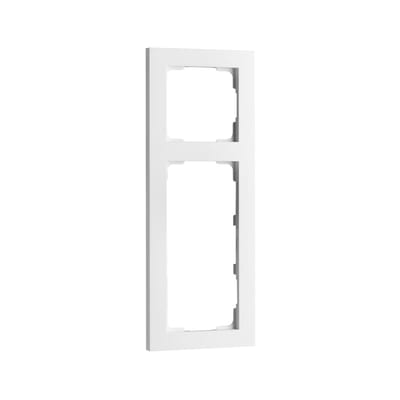

Frame 2+1 FOR Triple Socket HV
78170
SG Armaturen

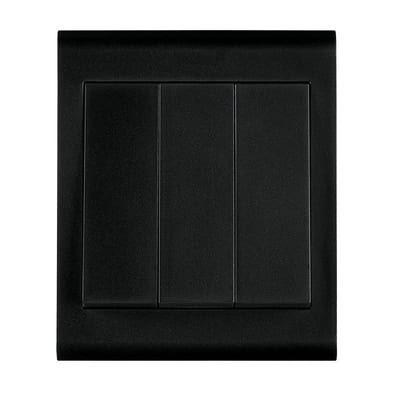

Switch PV 1+1+1 Black
76551
SG Armaturen

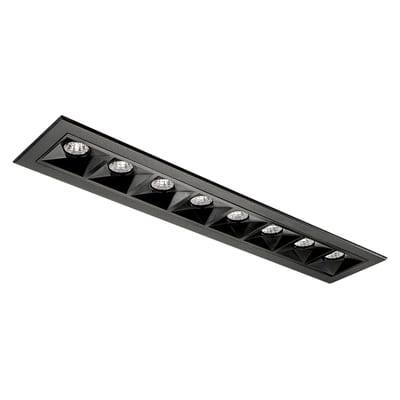

Inspire R 300 Black 15W/930 DALI
212430
SG Armaturen

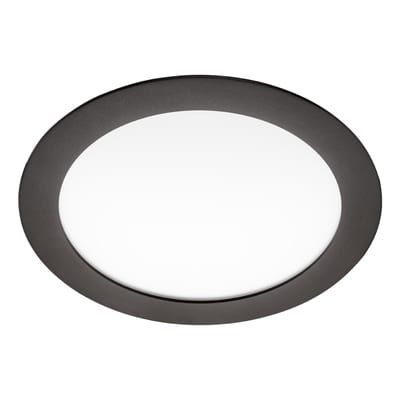

Sense 320 Black OPAL Prism 16W/830
212732
SG Armaturen

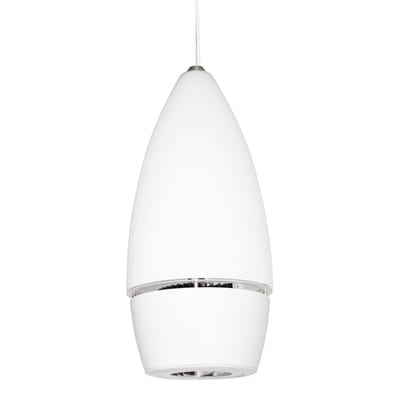

Concido Pendant White 57W/830
