SG Armaturen

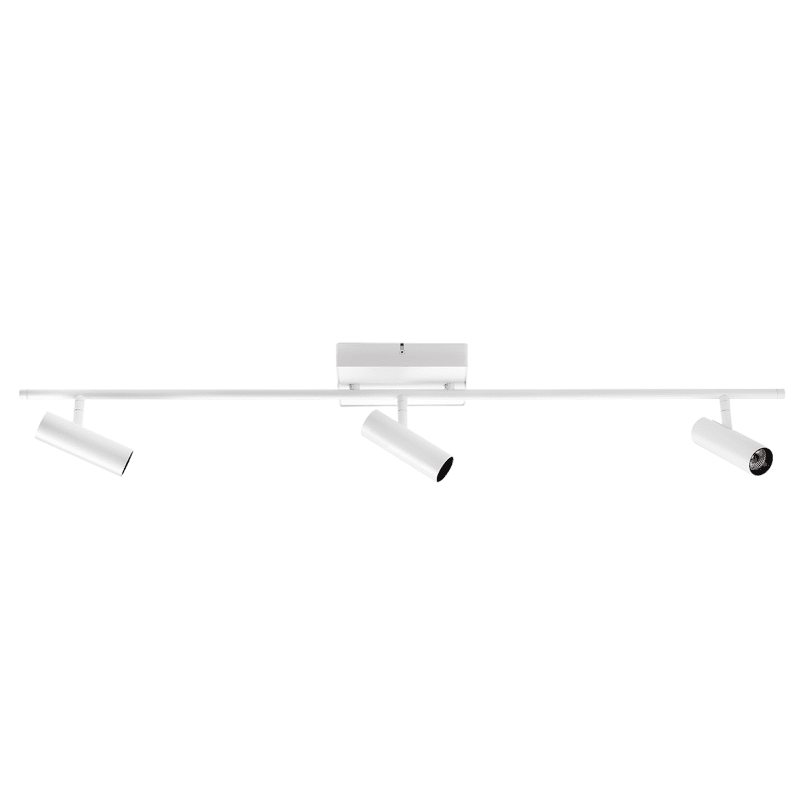

TUBE Micro Track White 18W DTW 40°
Part number320703EAN / GTIN7021983207036HS code9405.11
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320703 TUBE MICRO TRACK WHITE DTW 18W, 960lm, RA>95, SDCM 2, Class In, IP20, L80/B20.
Technical Specifications
- Manufacturer part number (MPN)
- 320703
- EAN / GTIN
- 7021983207036
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 18 W
- Efficacy
- 53 lm/W
- Lumen
- 960lm
- IP Class
- IP20
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 50,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 18W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 43, B16: 69, C10: 43, C16: 69
- Type of light source
- LED
- Luminous flux
- 960lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 40°
- UGR
- UGR<19
- Type
- Trailing edge
- Luminaire class
- Class I
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Connection
- Screwless terminal block
- Length (mm) L
- 1000
- Width (mm) W
- 131
- Height (mm) H
- 182
- Weight (kg) gross/net
- 2.022 / 1.316
- Packaging dimensions (mm)
- 1010 x 138 x 160
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983207036
- SAP 1200509508
- Code 82651721
Product Documentation
Document preview: TUBE Micro Track White 18W DTW 40° (320703) — Specification sheet
More from SG Armaturen
SG Armaturen
Extension ring 3mm - Double WALL BOX
1201337
SG Armaturen
Switch PV IP55 Impulse Black
76691
SG Armaturen
Sense Surface 370X370 17W/830
212394
SG Armaturen
Junistar LUX Isosafe Brushed Steel 7W/927
902521
SG Armaturen
Rehab RING 133mm Black IN/OUT
009143
SG Armaturen
SG Armaturen 25 mm Conduit Entry for Wall Box
79910
SG Armaturen
ZIP TUBE Pendant MINI Black 14W/930 DIM
320645
SG Armaturen
SG Armaturen Sense Surface Mounting Frame 300 x 1200 mm
212257
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
