SG Armaturen
Fagernes Bollard Black 12W/830
Part number630102EAN / GTIN7021986301021HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

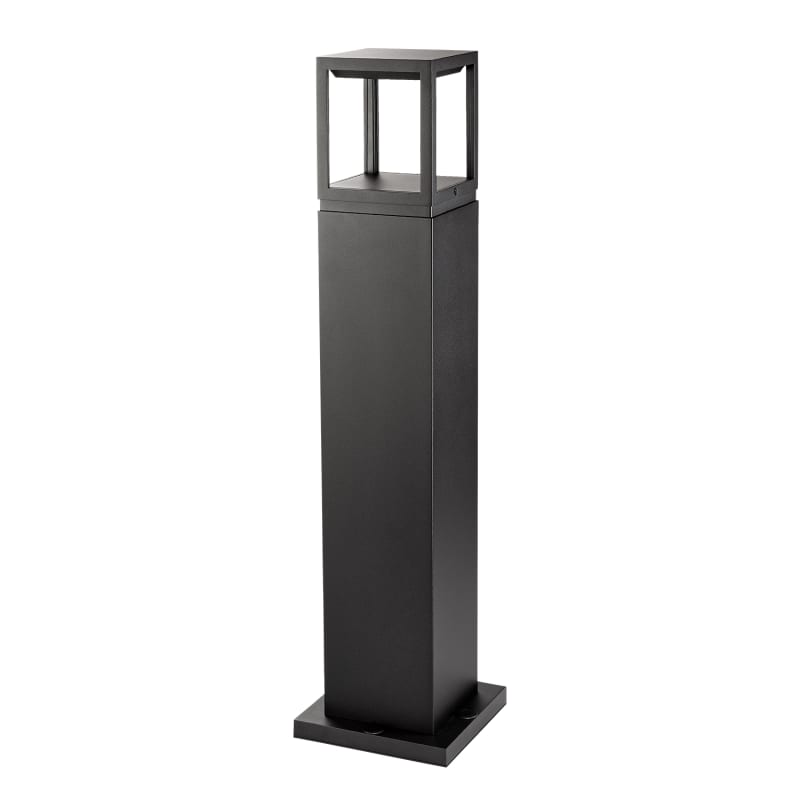

SG Armaturen 630102 FAGERNES BOLLARD BLACK 3000K, 12W, 610lm, Ra>80, SDCM3, L70/B50 100.000, IK08, IP44.
Technical Specifications
- Manufacturer part number (MPN)
- 630102
- EAN / GTIN
- 7021986301021
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Power
- 12 W
- Efficacy
- 51 lm/W
- Lumen
- 610lm
- IP Class
- IP44
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L70/B50>
- Mounting
- Onto surfaces or ground anchor, Outdoor
- System wattage
- 12W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 88, B16: 142, C10: 88, C16: 142
- Type of light source
- LED
- Luminous flux
- 610lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Indirect
- Optic
- Glass Clear
- Beam angle
- 94,2°
- UGR
- UGR>28
- Visible flicker (PstLM)
- 0.07
- Stroboscopic flicker (SVM)
- 0.34
- ULOR (<1%)
- Yes
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK08
- Contains light source of energy class
- E
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Length (mm) L
- 200
- Width (mm) W
- 200
- Height (mm) H
- 800
- Weight (kg) gross/net
- 7.5 / 7.3
- Packaging dimensions (mm)
- 820 x 210 x 210
- Protection class according to IEC 61140
- II
- Width
- 200 mm
- Conductor cross section
- 2.5 mm²
- With base plate
- Yes
- Housing colour
- Black
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Number of poles
- 2
- Length
- 200 mm
- Height/depth
- 800 mm
- Type of power supply
- Mains power supply
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Indirect
- Impact strength
- IK08
- Degree of protection (IP)
- IP44
- Suitable for number of light sources
- 1
- Max. system power
- 12 W
- Colour of light
- White
- Rated lifetime L70/B50 at 25 °C
- 100000 h
- Luminaire efficacy
- 51 lm/W
- Flickering value Pst LM
- 0.07
- Stroboscope effect value SVM
- 0.34
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986301021
- SAP 1200912126
- Code 84179077
Product Documentation
Document preview: Fagernes Bollard Black 12W/830 (630102) — Specification sheet
