SG Armaturen Callisto Bollard Black 4W 2700K IP44
Pricing
Request a quote
We reply within 24 hours
Product Description

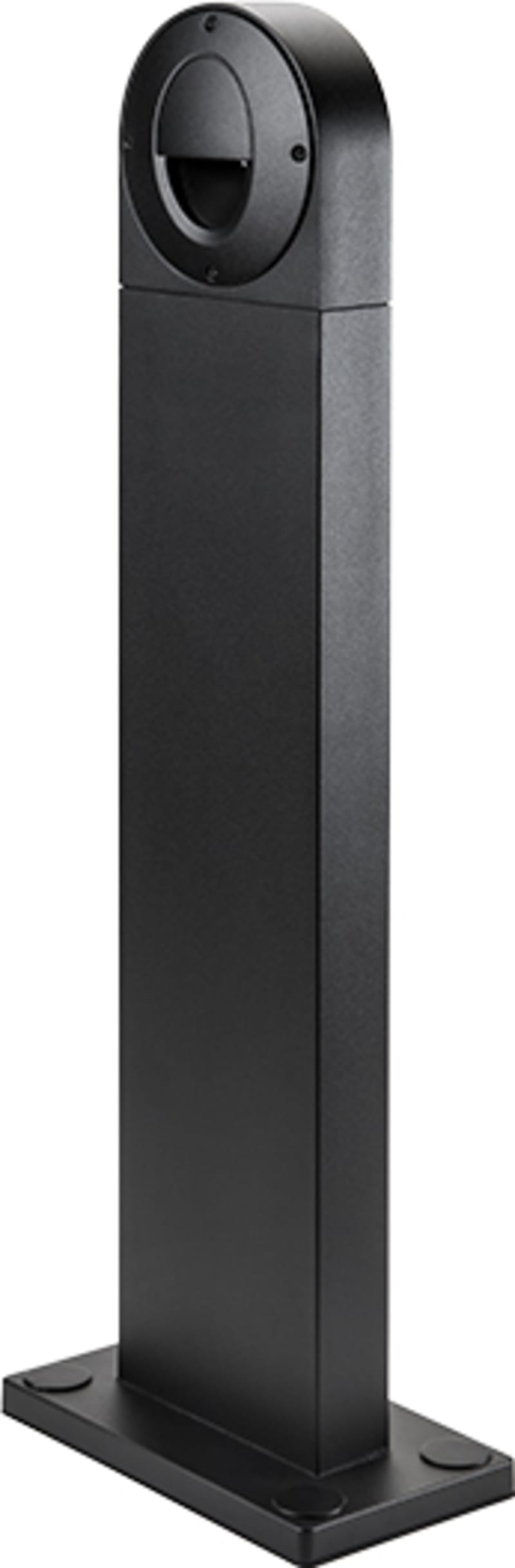

SG Armaturen 914107 Callisto is a 600 mm outdoor bollard luminaire in black (RAL 9004) with an aluminium housing and tempered glass optic. It delivers 60 lm at 3 W system power in warm white 2700K, is IP44 rated, class I, and provides direct/asymmetric light distribution suited to pathways, driveways and garden edges. Anchor fixings are sold separately.
Technical Specifications
- Manufacturer part number (MPN)
- 914107
- EAN / GTIN
- 7021989141075
- Sales unit
- pcs
- Package quantity
- 4 pcs
- IP rating
- IP44
- Power
- 4 W
- Efficacy
- 20 lm/W
- Lumen
- 60lm
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B50>
- Mounting
- Outdoor
- System wattage
- 3W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 115, B16: 184, C10: 134, C16: 215
- Type of light source
- LED
- Luminous flux
- 60lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Asymmetric
- Optic
- Glass Clear
- Beam angle
- 65°/85°
- Type
- Trailing edge
- Luminaire class
- Class I
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Black (RAL 9004)
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Width (mm) W
- 180
- Height (mm) H
- 600
- Depth (D)
- 100
- Weight (kg) gross/net
- 2.28 / 1.9
- Packaging dimensions (mm)
- 615 x 188 x 108
- Protection class according to IEC 61140
- I
- Width
- 180 mm
- Height
- 600 mm
- Conductor cross section
- 2.5 mm²
- With base plate
- No
- RAL-number
- 9004
- Housing colour
- Black
- Surface protection
- Powder coating
- Voltage type
- AC
- With movement sensor
- No
- Suitable for lamp power
- 3 W
- Type of control gear
- Not required
- Colour rendering index CRI
- 80-89
- Diameter
- 180 mm
- With light sensor
- No
- Luminous intensity
- 60 cd
- Number of poles
- 2
- Length
- 100 mm
- Height/depth
- 100 mm
- Housing material
- Aluminium
- Material
- Aluminium
- Lamp type
- LED not exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct
- Material cover
- Glass transparent
- Impact strength
- IK06
- Nominal voltage
- 230 V
- Degree of protection (IP)
- IP44
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- No
- Max. system power
- 3 W
- Rated luminous flux according to IEC 62722-2-1
- 60 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Luminaire efficacy
- 20 lm/W
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- No
- Device emplacement
- Outdoor positioning
- Power factor
- 0.9
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989141075
- SAP 1200036830
- Code 81557399
Product Documentation
