SG Armaturen

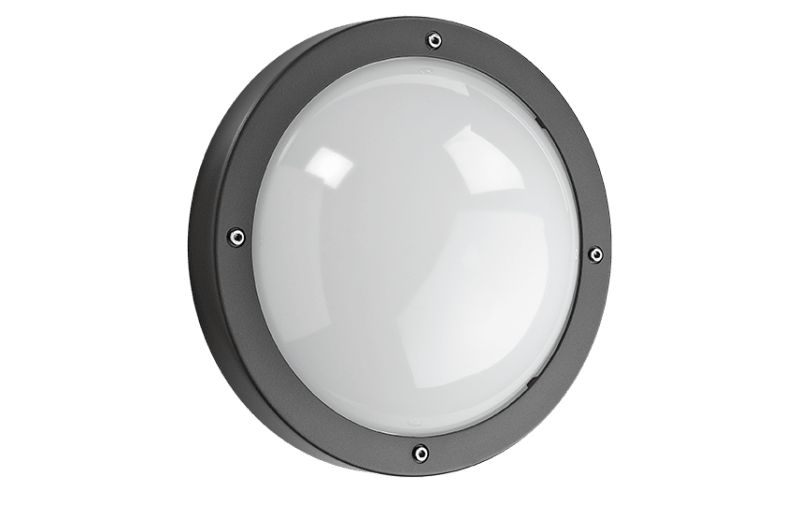

Primo Graphite 1100 11,5W/830 IP65
Part number643570EAN / GTIN7021986435702HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 643570 Primo graphite 1100 LED 3000K.
Technical Specifications
- Manufacturer part number (MPN)
- 643570
- EAN / GTIN
- 7021986435702
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP65
- Power
- 11.5 W
- Efficacy
- 95 lm/W
- Lumen
- 760lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 8W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 760lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 120°
- UGR
- UGR<22
- Photobiological safety
- RG 0
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Sunda Hus
- C+
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Module
- 1100
- Connection
- Screwless terminal block
- Height (mm) H
- 120
- Diameter (mm) D
- 270
- Depth (D)
- 120
- Weight (kg) gross/net
- 1.95 / 1.74
- Packaging dimensions (mm)
- 270 x 270 x 120
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986435702
- SAP 1000492224
- Code 8816992
Product Documentation
Document preview: Primo Graphite 1100 11,5W/830 IP65 (643570) — Specification sheet
More from SG Armaturen
SG Armaturen
Callisto Wall Graphite 4W/927 IP65
923017
SG Armaturen
WAVE 600 White 18W/830 Sensor
111276
SG Armaturen
SG Armaturen ZIP Profile Recessed 2.1M White
300784
SG Armaturen

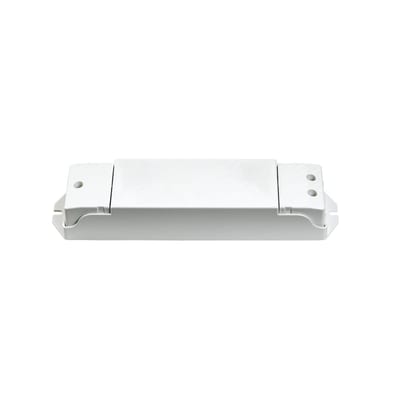

Jointim Smart White Color Controller
820483
SG Armaturen

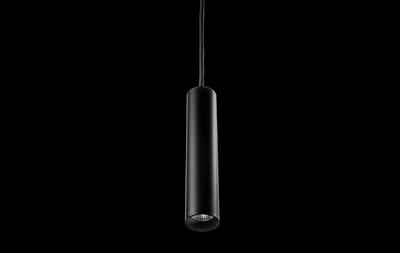

ZIP TUBE Pendant MINI Black 14W/927 DIM
320644
SG Armaturen

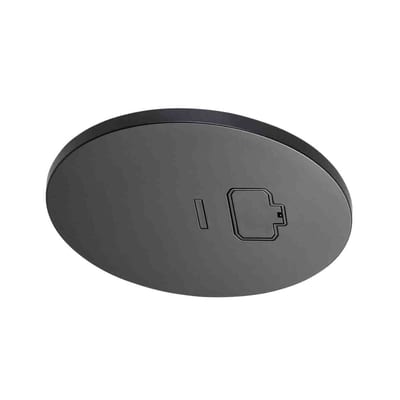

DCL Ceilingoutlet Black
77581
SG Armaturen

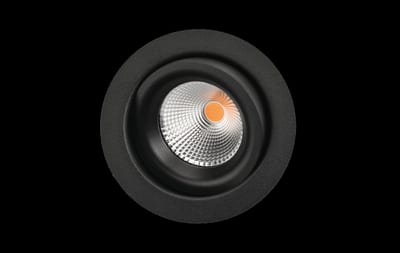

Junistar ECO Black 590LM 6W/930
905224
SG Armaturen

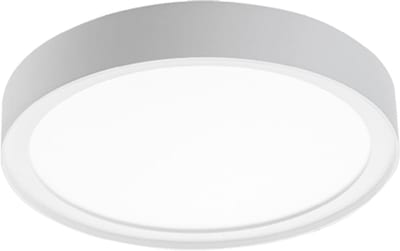

DISC 290 White 17W/830
