SG Armaturen
DCL Ceilingoutlet Black
Part number77581EAN / GTIN7021987758114HS code8536.69
Electrical Components
Socket Outlets
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

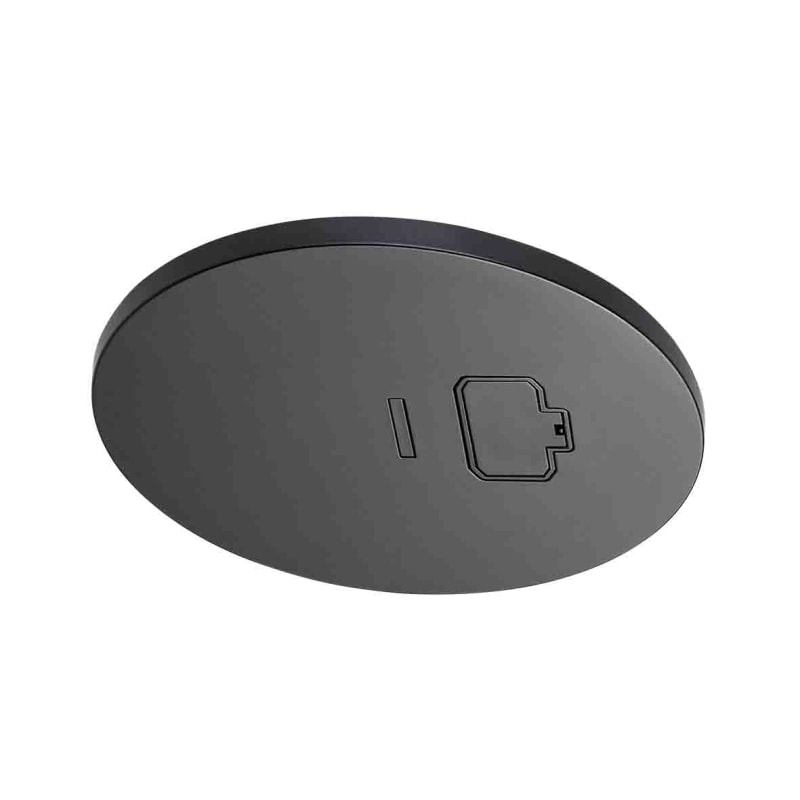

SG Armaturen 77581 DCL Ceiling Outlet Black.
Technical Specifications
- Manufacturer part number (MPN)
- 77581
- EAN / GTIN
- 7021987758114
- Sales unit
- pcs
- Package quantity
- 6 pcs
- IP Class
- IP20
- Mounting
- Indoor
- Voltage
- 250V
- Frequency (Hz)
- 50/60Hz
- Nominal current
- 6A
- Housing
- Polycarbonat (PC)
- Colour
- Black (RAL 9004)
- Halogen free
- Yes
- Height (mm) H
- 38
- Weight (kg) gross/net
- 0.138 / 0.104
- Packaging dimensions (mm)
- 115 x 115 x 38
- Number per pack
- 6
- Nominal voltage
- 250 V
- Mounting method
- Flush-mounted
- Model
- DCL
- Number of units
- 1
- Lockable
- No
- With hinged lid
- No
- Surface protection
- Lacquered
- With signal lamp
- No
- Number of phases
- 2
- With enhanced contact protection
- No
- With on/off switch
- No
- Protective contact
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- No special power supply
- Insulated mounting
- No
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Imprint/indication
- None
- RAL-number (similar)
- 9004
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- Yes
- Suitable for degree of protection (IP)
- IP21
- Device width
- 115 mm
- Device height
- 115 mm
- Device depth
- 38 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Number of active contacts (flat)
- 2
- Protective earth pin round
- No
- Min. depth of built-in installation box
- 31 mm
- With Wi-Fi signal repeater
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- With built-in bluetooth speaker
- No
- Number of loop throughs
- 1
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7021987758114
- SAP 1200597298
- Code 82979342
Product Documentation
Document preview: DCL Ceilingoutlet Black (77581) — Specification sheet
