SG Armaturen

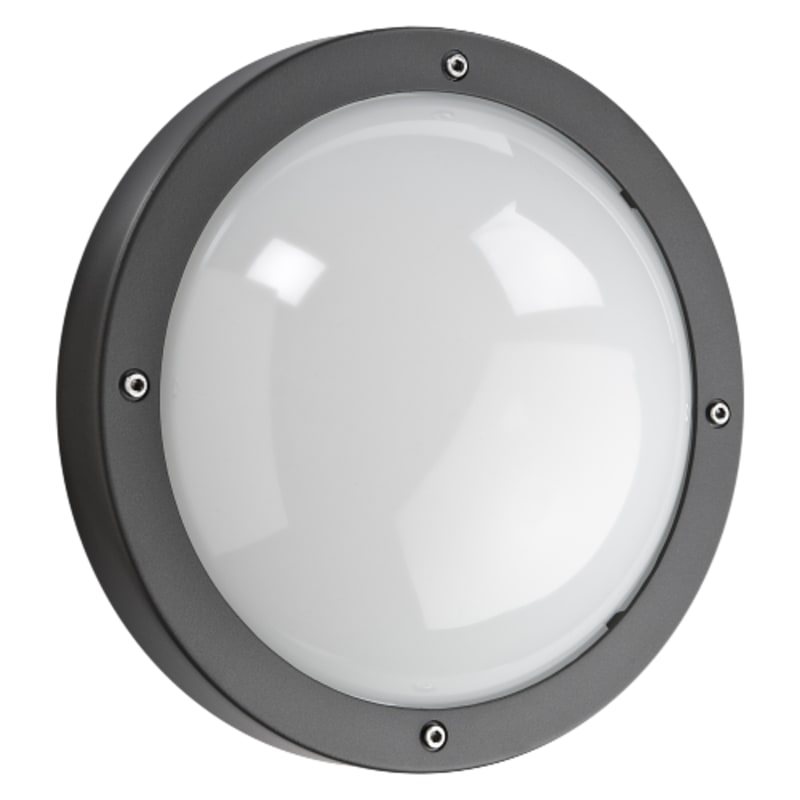

Primo Graphite 1100 10W/840
Part number643572EAN / GTIN7021986435726HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 643572 PRIMO graphite 1100 LED 4000K.
Technical Specifications
- Manufacturer part number (MPN)
- 643572
- EAN / GTIN
- 7021986435726
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Power
- 10 W
- Efficacy
- 76 lm/W
- Lumen
- 760lm
- IP Class
- IP65
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B10>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 10W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 33, B16: 52, C10: 40, C16: 64
- Type of light source
- LED
- Luminous flux
- 760lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal
- Beam angle
- 120°
- UGR
- UGR<22
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Fire protection class
- 850°C - 30s
- Contains light source of energy class
- C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- UV-stabilized polycarbonate
- Module
- 1100
- Connection
- Screwless terminal block
- Height (mm) H
- 120
- Diameter (mm) D
- 270
- Depth (D)
- 120
- Weight (kg) gross/net
- 1.95 / 1.74
- Packaging dimensions (mm)
- 275 x 275 x 137
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986435726
- SAP 1200369617
- Code 82376265
Product Documentation
Document preview: Primo Graphite 1100 10W/840 (643572) — Specification sheet
