SG Armaturen

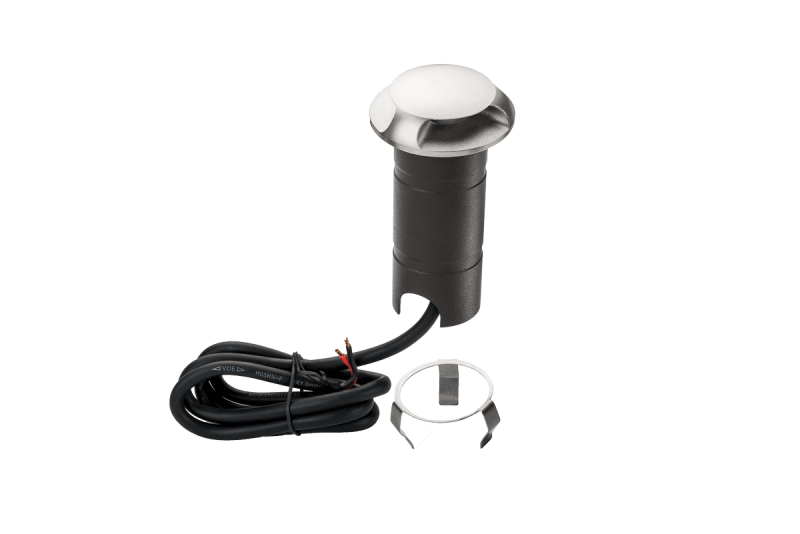

LUNA DECO 24V 3W/830 16LM
Part number630014EAN / GTIN7021986300147HS code9405.42
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 630014 L80/B20>50 000 hours, 16lm, 5 lm/W, IK10, IP67.
Technical Specifications
- Manufacturer part number (MPN)
- 630014
- EAN / GTIN
- 7021986300147
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Voltage
- 24 V
- Power
- 3 W
- Efficacy
- 4 lm/W
- Lumen
- 16lm
- IP Class
- IP67
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L80/B20>
- Mounting
- Recessed, Outdoor
- System wattage
- 4W
- Type of light source
- LED
- Luminous flux
- 16lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Indirect
- Optic
- Lens
- Photobiological safety
- RG 0
- Type
- Dimmable, depending on the driver
- Luminaire class
- Class III
- IK Class
- IK10
- Max load
- 500 kg
- Contains light source of energy class
- G
- Housing
- Aluminium and stainless steel
- Optics
- Acrylic (PMMA)
- Module
- 3O
- Cable
- Cable 1m
- Height (mm) H
- 103
- Diameter (mm) D
- 60
- Cut-out (mm)
- 40
- Weight (kg) gross/net
- 0.42 / 0.382
- Packaging dimensions (mm)
- 135 x 85 x 65
- Protection class according to IEC 61140
- III
- Width
- 60 mm
- Outer diameter
- 60 mm
- Lamp holder
- None
- Conductor cross section
- 2 mm²
- Housing colour
- Anthracite
- Dimmable
- No
- Voltage type
- DC
- Suitable for lamp power
- 4 W
- Type of control gear
- LED operating device voltage-controlled
- Adjustable
- No
- Colour rendering index CRI
- 80-89
- Built-in width
- 40 mm
- Built-in diameter
- 40 mm
- Number of poles
- 2
- Length
- 75 mm
- Height/depth
- 60 mm
- Lamp type
- LED not exchangeable
- Built-in length
- 40 mm
- Electrical connection with connector system
- No
- Material cover
- Plastic, opal
- Impact strength
- IK10
- Over rollable
- Yes
- Nominal voltage
- 24 V
- Degree of protection (IP)
- IP67
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- No
- Beam angle
- Open beam/diffuse
- Max. system power
- 4 W
- Rated luminous flux according to IEC 62722-2-1
- 16 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Ending
- LED nominal current at constant current
- 700 mA
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Luminaire efficacy
- 4 lm/W
- Dimming DSI
- No
- Energy efficiency class of the built-in lamp
- A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp
- A+
- Lowest energy efficiency class of the exchangeable lamp
- A+
- Operation by Bluetooth
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Dimming DALI-2
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- No
- Compatible with Casambi
- No
- Built-in height/depth
- 90 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986300147
- SAP 1200244006
- Code 82204933
Product Documentation
Document preview: LUNA DECO 24V 3W/830 16LM (630014) — Specification sheet
