SG Armaturen

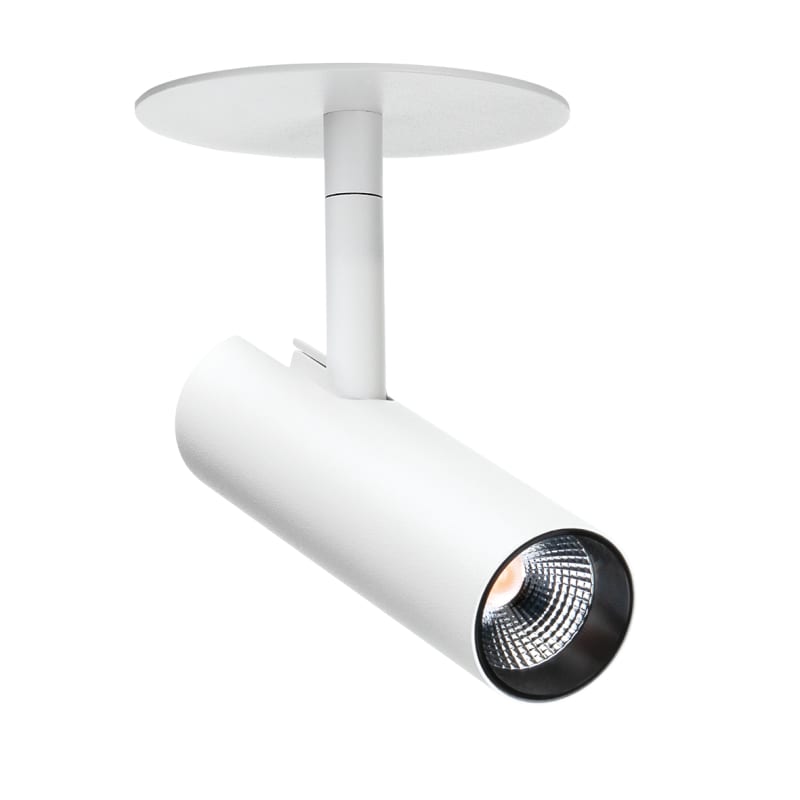

TUBE Micro R White 12W DTW 36°
Part number320709EAN / GTIN7021983207098HS code9405.11
Lighting & Electrical Accessories
Track Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 320709 TUBE MICRO R WHITE DTW 12W 590lm, IP20, CLASS II, RA>95, SDCM 2, L90/B10 50,000.
Technical Specifications
- Manufacturer part number (MPN)
- 320709
- EAN / GTIN
- 7021983207098
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Power
- 12 W
- Efficacy
- 49 lm/W
- Lumen
- 590lm
- IP Class
- IP20
- Colour temperature
- 2000-2800K
- Colour rendering (Ra)
- Ra>95
- Lifetime
- 100,000 L90/B10>
- Mounting
- Recessed, Indoor
- System wattage
- 12W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 590lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct
- Optic
- Reflector
- Beam angle
- 36°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0.06
- Stroboscopic flicker (SVM)
- 0.05
- Type
- Trailing edge
- Luminaire class
- Class II
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- White (RAL 9003)
- Optics
- UV-stabilized polycarbonate
- Length (mm) L
- 39
- Width (mm) W
- 39
- Height (mm) H
- 135
- Cut-out (mm)
- 83
- Distance to flammable materials
- 10mm
- Weight (kg) gross/net
- 0.579 / 0.478
- Packaging dimensions (mm)
- 215 x 100 x 105
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021983207098
- SAP 1200588170
- Code 82960709
Product Documentation
