SG Armaturen

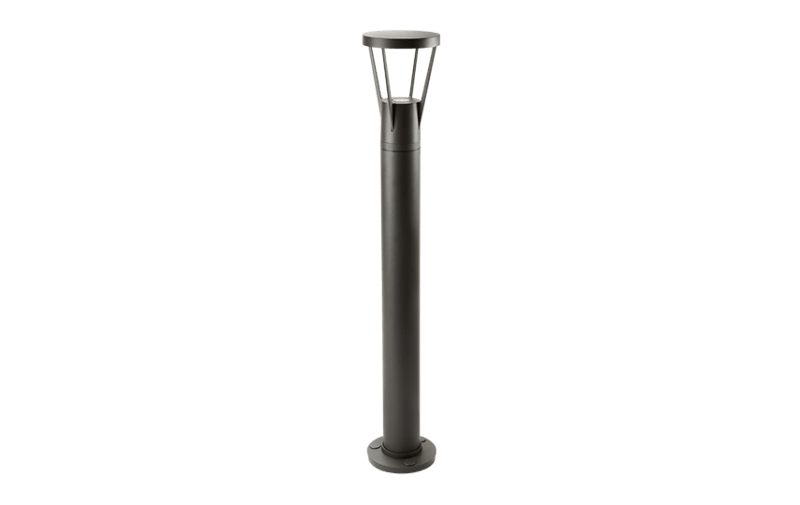

ARCO AIR Graphite GU10 6W LED
Part number623620EAN / GTIN7021986236200HS code9405.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 623620 Arco Air graphite 6W LED GU10 230V kl II.
Technical Specifications
- Manufacturer part number (MPN)
- 623620
- EAN / GTIN
- 7021986236200
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 6 W
- Efficacy
- 13 lm/W
- Lumen
- 75lm
- IP Class
- IP54
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>90
- Lifetime
- 50,000 L70/B50>
- Mounting
- Pole, wall, bollard or earthing rod, Outdoor
- System wattage
- 6W
- Voltage
- 220-240V
- Type of light source
- LED
- Socket
- GU10
- Light source included
- Yes
- Luminous flux
- 75lm
- MacAdams factor
- SDCM: 2
- Light distribution
- Direct/Indirect
- Optic
- Glass Clear
- Beam angle
- 360°
- UGR
- UGR<19
- Type
- Trailing edge
- Luminaire class
- Class I
- IK Class
- IK08
- Contains light source of energy class
- G
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Height (mm) H
- 963
- Diameter (mm) D
- 160
- Weight (kg) gross/net
- 4.8 / 4
- Packaging dimensions (mm)
- 1020 x 170 x 170
- Protection class according to IEC 61140
- I
- Width
- 160 mm
- Height
- 963 mm
- Conductor cross section
- 2.5 mm²
- With base plate
- No
- RAL-number
- 7024
- Voltage type
- AC
- With movement sensor
- No
- Max. lamp power
- 6.5 W
- Suitable for lamp power
- 6 W
- Type of control gear
- Not required
- Colour rendering index CRI
- 80-89
- Diameter
- 160 mm
- With light sensor
- No
- Luminous intensity
- 75 cd
- Number of poles
- 2
- Length
- 963 mm
- Height/depth
- 963 mm
- Housing material
- Aluminium
- Material
- Aluminium
- Lamp type
- LED exchangeable
- Type of luminaire
- Bollard luminaire
- Light outlet
- Direct/indirect
- Material cover
- Glass transparent
- Impact strength
- IK08
- Nominal voltage
- 230 V
- Degree of protection (IP)
- IP54
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- No
- Max. system power
- 6 W
- Rated luminous flux according to IEC 62722-2-1
- 75 lm
- Colour of light
- White
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Suitable for loop-through wiring
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Luminaire efficacy
- 13 lm/W
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- No
- Beam angle adjustable
- No
- Exchangeable control gear
- No
- Device emplacement
- Outdoor positioning
- Power factor
- 0.9
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.42
Cross References
- EAN 7021986236200
- SAP 1000498149
- Code 8613540
Product Documentation
Document preview: ARCO AIR Graphite GU10 6W LED (623620) — Specification sheet
More from SG Armaturen
SG Armaturen
Switch PV 2+1 White (76560)
SG Armaturen
Switch WITH LIGHT PV 2-Pole White
1409895
SG Armaturen
Socket IF SPLIT Double Socket Black
77141
SG Armaturen
SG White GU10 4,5W/827 36°
830956
SG Armaturen
WALL BOX 1,5 21/24mm 6-Run Metal VERT
79015
SG Armaturen
Lineal SURF 1X2M Wire Set with Ceiling Bracket
8249045116
SG Armaturen
Jointim 400 White ELKO Adapter
820356
SG Armaturen

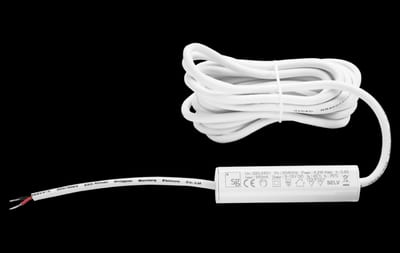

NANO Driver DC 4,2W 350MA
