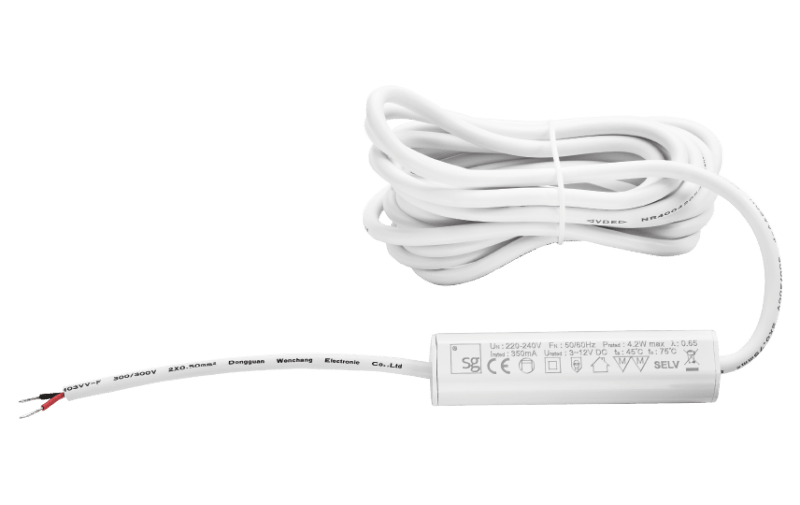

NANO Driver DC 4,2W 350MA
Part number820078EAN / GTIN7021988200780HS code8504.31
Lighting & Electrical Accessories
LED Drivers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820078 Driver DC 4,2W 350mA.
Technical Specifications
- Manufacturer part number (MPN)
- 820078
- EAN / GTIN
- 7021988200780
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Power
- 4.2 W
- Wattage
- 4,2W
- IP Class
- IP20
- Mounting
- Indoor
- Function
- Ambient temperature range ta -20 …+45°C
- Max. luminaires per circuit breaker
- B10: 120, B16: 200, C10: 120, C16: 200
- Type
- Trailing edge
- Driver
- 350mA
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Colour
- White
- Length (mm) L
- 90
- Width (mm) W
- 23
- Height (mm) H
- 19
- Diameter (mm) D
- 23
- Cut-out (mm)
- 25
- Weight (kg) gross/net
- 0.238 / 0.209
- Packaging dimensions (mm)
- 130 x 70 x 70
- Operation by Bluetooth
- No
- Compatible with Casambi
- No
- Model
- Static
- Suitable for outdoor use
- No
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DSI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming GPRS
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- Constant light output (CLO)
- No
- No dim function
- No
- Housing
- Plastic housing
- Suitable for constant current
- No
- Suitable for constant voltage
- Yes
- Output voltage
- 3–12 V
- Output current
- 350 mA
- Suitable for DC-voltage (primary side)
- No
- Output power
- 6 W
- Degree of protection (IP)
- IP00
- Protection class according to IEC 61140
- II
- Length
- 90 mm
- Diameter
- 23 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- IFTTT support available
- No
- Dimmable
- Yes
- Dimming DALI-2
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 7021988200780
- SAP 1200217156
- Code 82143685
Product Documentation
Document preview: NANO Driver DC 4,2W 350MA (820078) — Specification sheet
