SG Armaturen

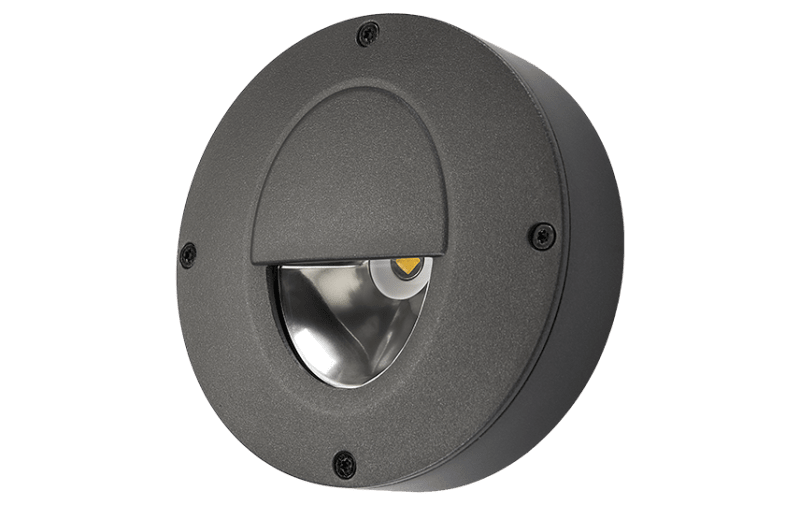

Callisto WALL Graphite 4W/830 IP65
Part number923015EAN / GTIN7021989230151HS code9405.11
Lighting & Electrical Accessories
Outdoor Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 923015 Callisto Wall graphite 4W LED 3000K 230V.
Technical Specifications
- Manufacturer part number (MPN)
- 923015
- EAN / GTIN
- 7021989230151
- Sales unit
- pcs
- Package quantity
- 20 pcs
- IP rating
- IP65
- Power
- 4 W
- Efficacy
- 37 lm/W
- Lumen
- 110lm
- Colour temperature
- 3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 50,000 L70/B50>
- Mounting
- Surface, Indoor / Outdoor
- System wattage
- 3W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 115, B16: 184, C10: 134, C16: 215
- Type of light source
- LED
- Luminous flux
- 110lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct/Asymmetric
- Optic
- Glass Clear
- Beam angle
- 70°/40°
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK06
- Contains light source of energy class
- F
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium
- Colour
- Graphite
- Optics
- Tempered glass
- Connection
- Screwless terminal block
- Height (mm) H
- 35
- Diameter (mm) D
- 110
- Weight (kg) gross/net
- 0.3 / 0.238
- Packaging dimensions (mm)
- 120 x 115 x 45
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021989230151
- SAP 1200000933
- Code 8423502
Product Documentation
Document preview: Callisto WALL Graphite 4W/830 IP65 (923015) — Specification sheet
More from SG Armaturen
SG Armaturen

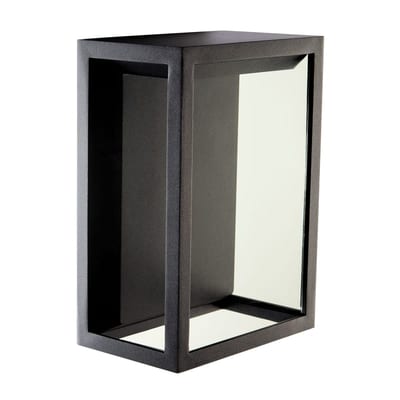

Fagernes Black 12W/830
630101
SG Armaturen

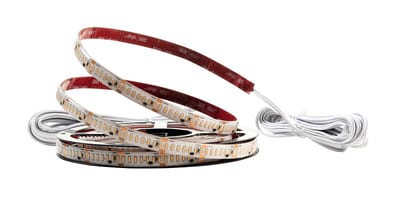

Stripline 5M 9W/830 2X5M Cable
391406
SG Armaturen

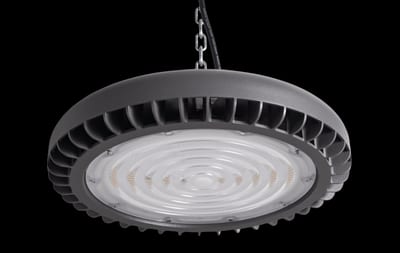

Tovdal 14000LM 97W/840 90°
607002
SG Armaturen

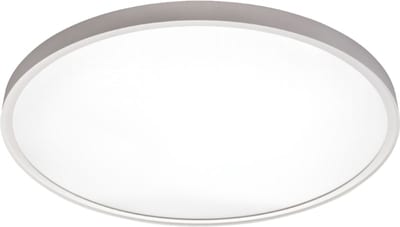

DISC 760 White 64W/CCT DALI
606177
SG Armaturen

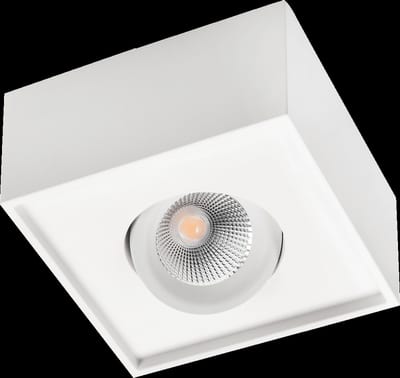

CUBE LUX White 7W/927
902539
SG Armaturen

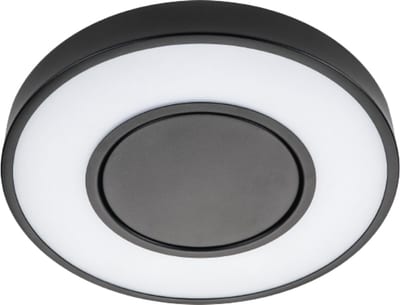

Circulus Black 19W/827
214000
SG Armaturen
Frame 90mm 4X Black (78151)
SG Armaturen
DCL PLUG Black (77591)
