SG Armaturen

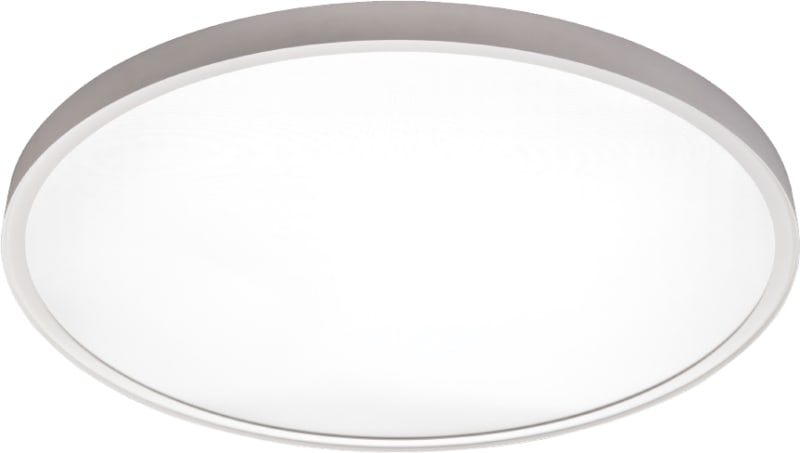

DISC 760 White 64W/CCT DALI
Part number606177EAN / GTIN7021986061772HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606177 DISC 760 WHITE 2700K/3000K DALI, 64W, SDCM 3, RA>80, IP20, IK10, L80/B20>, 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 606177
- EAN / GTIN
- 7021986061772
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Power
- 64 W
- Replaces
- 606130
- Efficacy
- 126 lm/W
- Lumen
- 6910/7130lm
- IP Class
- IP20
- Colour temperature
- 2700/3000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 55W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Max. luminaires per circuit breaker
- B10: 10, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 6910/7130lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 88°
- UGR
- UGR<19 up to 1200 mA/6130 lm
- Visible flicker (PstLM)
- 0.02
- Stroboscopic flicker (SVM)
- 0.01
- Photobiological safety
- RG 0
- Type
- DALI-2 / Push Dim
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- D
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Steel
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 55
- Diameter (mm) D
- 760
- Weight (kg) gross/net
- 11.1 / 10.7
- Packaging dimensions (mm)
- 775 x 775 x 63
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986061772
- SAP 1200786355
- Code 83948777
