SG Armaturen

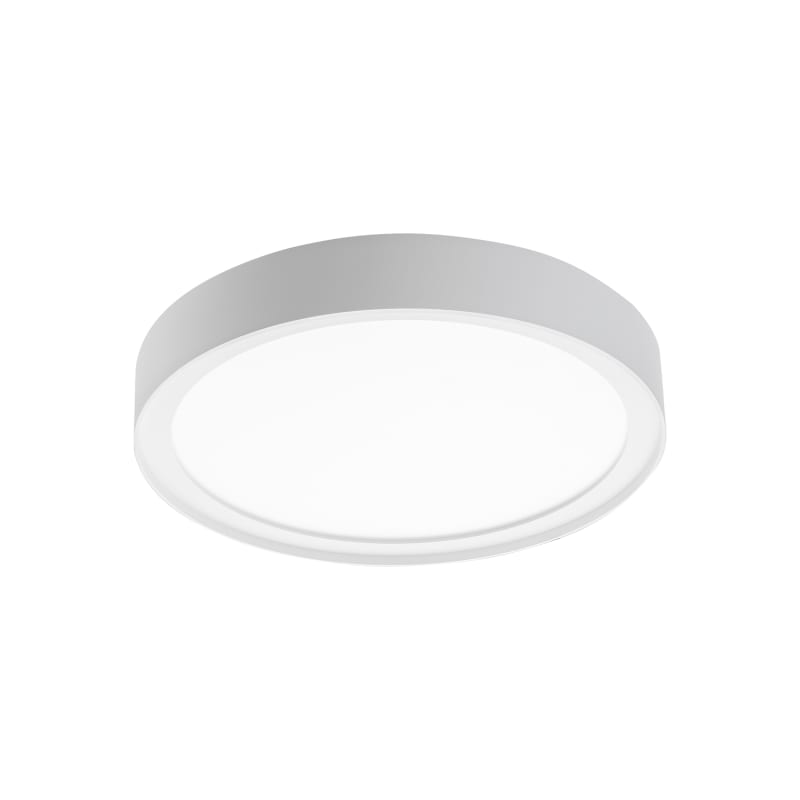

DISC 290 D/In White 18W/827
Part number606202EAN / GTIN7021986062021HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 606202 DISC 290 D/In WHITE 2700K, 18W, 1940lm, SDCM3, L80/B20 100.000, IP20, IK10.
Technical Specifications
- Manufacturer part number (MPN)
- 606202
- EAN / GTIN
- 7021986062021
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Power
- 18 W
- Efficacy
- 108 lm/W
- Lumen
- 1940lm
- IP Class
- IP20
- Colour temperature
- 2700K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B20>
- Mounting
- Surface, Indoor
- System wattage
- 18W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 19, B16: 30, C10: 31, C16: 51
- Type of light source
- LED
- Luminous flux
- 1940lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Opal prismatic
- Beam angle
- 85°
- UGR
- UGR<22
- Visible flicker (PstLM)
- 0,06
- Stroboscopic flicker (SVM)
- 0,03
- Type
- Trailing edge
- Luminaire class
- Class II
- IK Class
- IK10
- Contains light source of energy class
- C/C
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Aluminium/plastic
- Colour
- White
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 62
- Diameter (mm) D
- 290
- Weight (kg) gross/net
- 1.6 / 1.45
- Packaging dimensions (mm)
- 308 x 303 x 70
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021986062021
- SAP 1200880682
- Code 84120006
Product Documentation
Document preview: DISC 290 D/In White 18W/827 (606202) — Specification sheet
More from SG Armaturen
SG Armaturen
ZIP TUBE MINI ZOOM White 2700K
320893
SG Armaturen
Shopline 3T T-Joint LEFT-HAND Black
314433
SG Armaturen
Hurdal Connect 1200 24W/840
113159
SG Armaturen

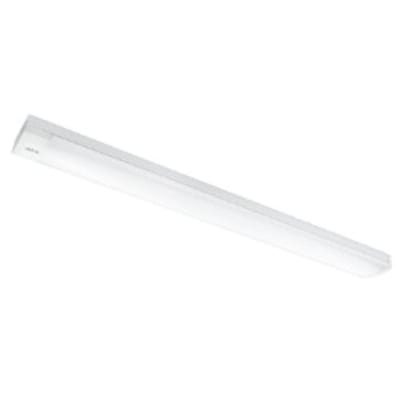

Hurdal MAXI Connect 1500 3000K
113144
SG Armaturen

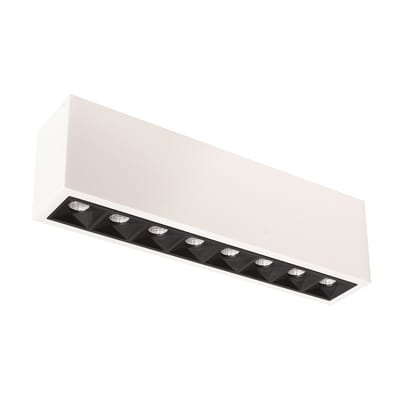

Inspire S 300 White 15W/927
320826
SG Armaturen

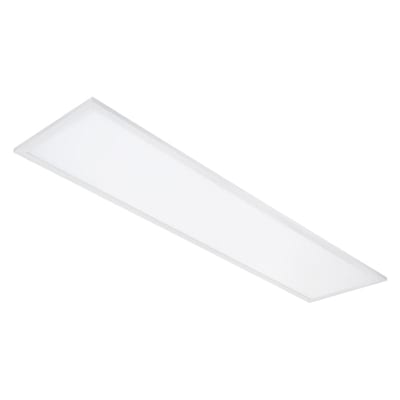

Sense Basic 300X1200 White 4000LM 4K PHASE-CUT
212834
SG Armaturen

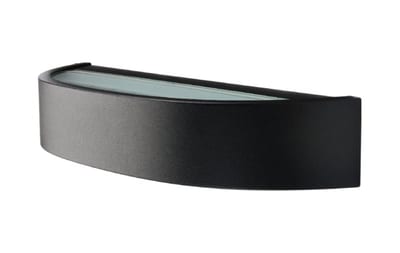

Curve Black 7W/830 (614341)
SG Armaturen

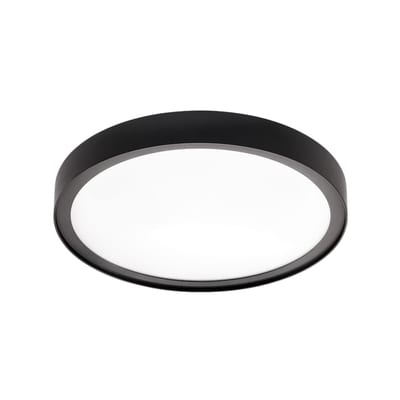

DISC 360 Black 3000K Sensor DIM
