SG Armaturen

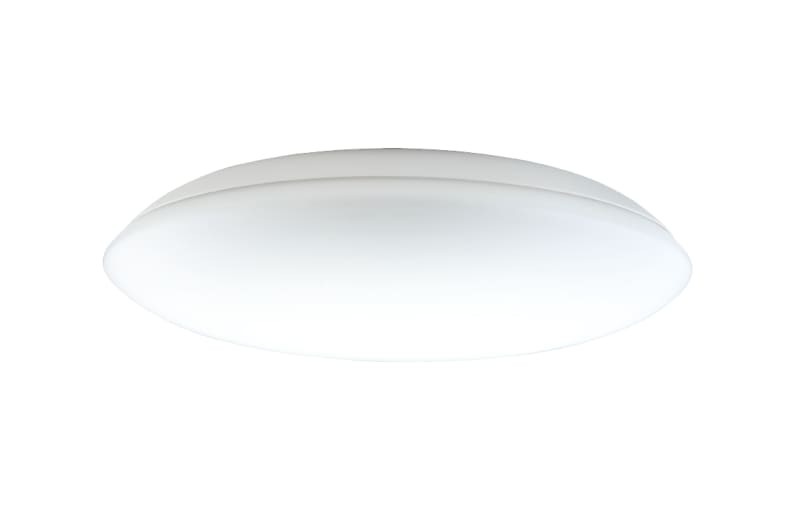

Frosta 330 White 17W/840 DALI
Part number211735EAN / GTIN7021982117350HS code9405.11
Lighting & Electrical Accessories
Ceiling & Wall Luminaires
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 211735 FROSTA 330 WHITE 4000K DALI, 17W, 2290lm, Ra>80, SDCM:3, Class II, IP20, L80/B10>, 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 211735
- EAN / GTIN
- 7021982117350
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Power
- 17 W
- Efficacy
- 139 lm/W
- Lumen
- 2370lm
- IP Class
- IP20
- Colour temperature
- 4000K
- Colour rendering (Ra)
- Ra>80
- Lifetime
- 100,000 L80/B10>
- Mounting
- Surface, Indoor
- System wattage
- 17W
- Voltage
- 220-240V
- Max. luminaires per circuit breaker
- B10: 31, B16: 50, C10: 52, C16: 85
- Type of light source
- LED
- Light source included
- Yes
- Luminous flux
- 2370lm
- MacAdams factor
- SDCM: 3
- Light distribution
- Direct
- Optic
- Acrylic diffuser
- Beam angle
- 125°
- UGR
- UGR<25
- Visible flicker (PstLM)
- 0.05
- Stroboscopic flicker (SVM)
- 0.03
- Photobiological safety
- RG 0
- Type
- DALI-2
- Driver
- 450mA
- Luminaire class
- Class II
- IK Class
- IK04
- Contains light source of energy class
- B
- Breeam
- Fulfils Hea 01 for flicker free lighting
- Housing
- Steel
- Colour
- White (RAL 9003)
- Optics
- Acrylic (PMMA)
- Connection
- Screwless terminal block
- Height (mm) H
- 77
- Diameter (mm) D
- 330
- Weight (kg) gross/net
- 2.17 / 1.25
- Packaging dimensions (mm)
- 355 x 355 x 135
- Country of origin
- China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021982117350
- SAP 1200703248
- Code 83596821
Product Documentation
Document preview: Frosta 330 White 17W/840 DALI (211735) — Specification sheet
More from SG Armaturen
SG Armaturen

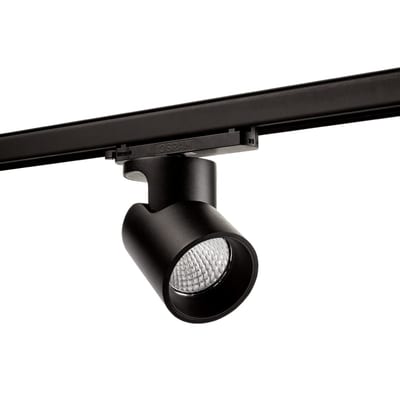

Aneto 3T Black 30W/940 DALI
320720
SG Armaturen

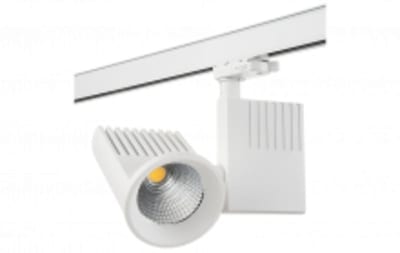

ZIP PRO 3T White 40W/930 40° DALI
320730
SG Armaturen

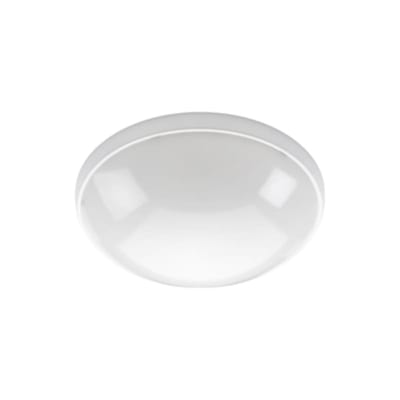

Orion White 20W/840 Sensor Wireless
212127
SG Armaturen

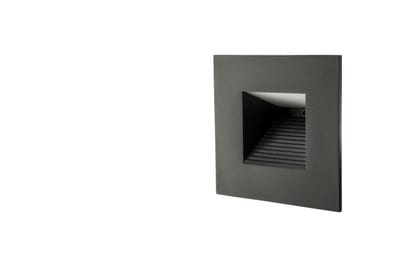

Capella Isosafe Black 2W/830
912034
SG Armaturen

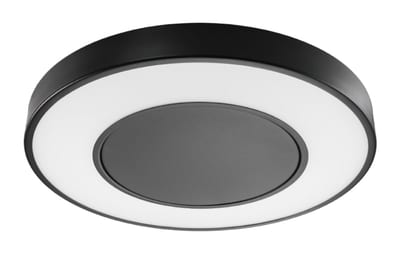

Circulus MAXI Black 30W/840 DALI
214016
SG Armaturen

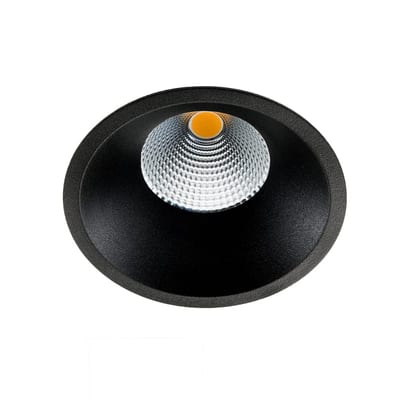

SOFT SLIM Black 11W/930 DALI
3246799
SG Armaturen

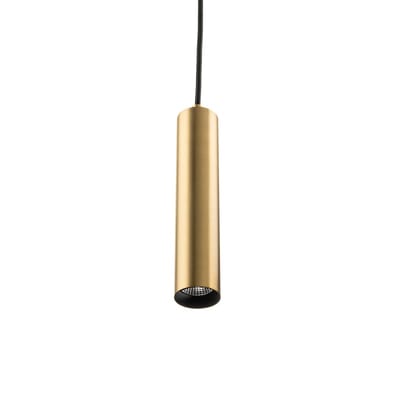

ZIP TUBE Pendant Micro MS 7W/930 40°
