SG Armaturen

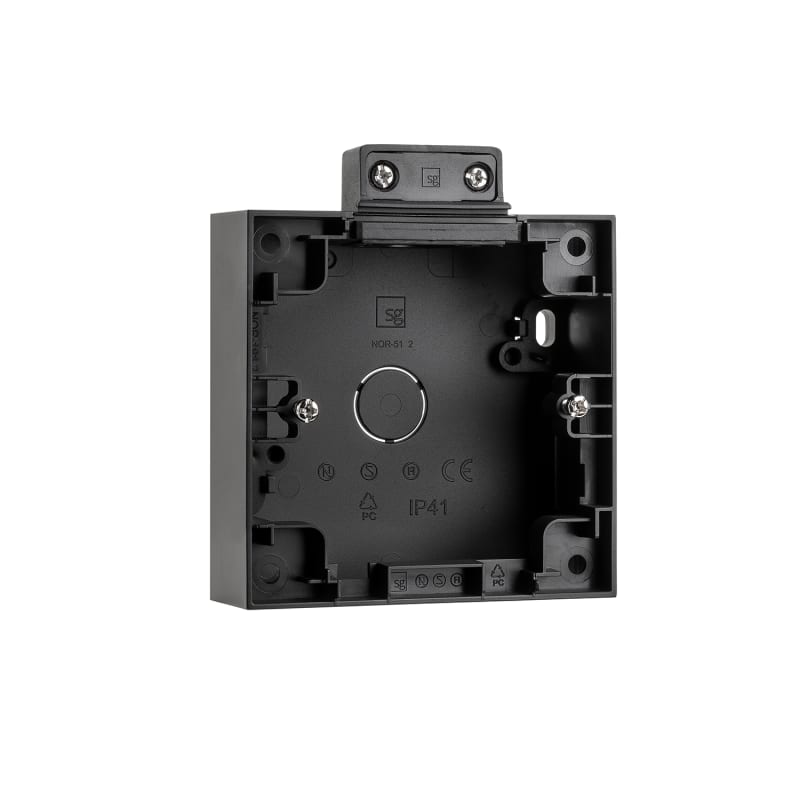

WALL-Mounted Cover M/ Strain relief Black 1X
Part number78591EAN / GTIN7021987859118HS code8538.90
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WALL-MOUNTED COVER WITH STRAIN RELIEF BLACK 1X 6-PACK.
Technical Specifications
- Manufacturer part number (MPN)
- 78591
- EAN / GTIN
- 7021987859118
- Sales unit
- pcs
- Package quantity
- 60 pcs
- IP Class
- IP21
- Mounting
- Surface, Indoor
- Housing
- Polycarbonat (PC)
- Colour
- Black (RAL 9004)
- Halogen free
- Yes
- Module
- 1X
- Length (mm) L
- 99
- Width (mm) W
- 86
- Height (mm) H
- 38
- Weight (kg) gross/net
- 0.079 / 0.053
- Packaging dimensions (mm)
- 99 x 86 x 38
- Number per pack
- 6
- Assembly arrangement
- Surface mounted frame with loose bottom plate
- Width
- 86 mm
- Height
- 33 mm
- Depth
- 86 mm
- Shape
- Square
- Number of units
- 1
- Shock resistant
- No
- Surface protection
- Untreated
- With cable entry
- Yes
- Material quality
- Thermoplastic
- Material
- Plastic
- Number of inlets
- 1
- With cover frame
- No
- Mounting direction
- Horizontal and vertical
- RAL-number (similar)
- 9004
- Degree of protection (IP)
- IP21
- Inlet from the rear
- Yes
- Transparent
- No
- Surface finishing
- Matt
- With screw gland entry
- No
- With duct entry
- No
- Device width
- 86 mm
- Device height
- 33 mm
- Device depth
- 33 mm
- Number of modules (module system)
- 1
- Suitable for modular domestic switching devices
- Yes
- Desktop device
- No
- Cross-trunking mounting
- No
- With installation tube entry
- No
- Suitable for mounting over existing flush-mounted box
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7021987859118
- SAP 1200776445
- Code 83937335
Product Documentation
Document preview: WALL-Mounted Cover M/ Strain relief Black 1X (78591) — Specification sheet
