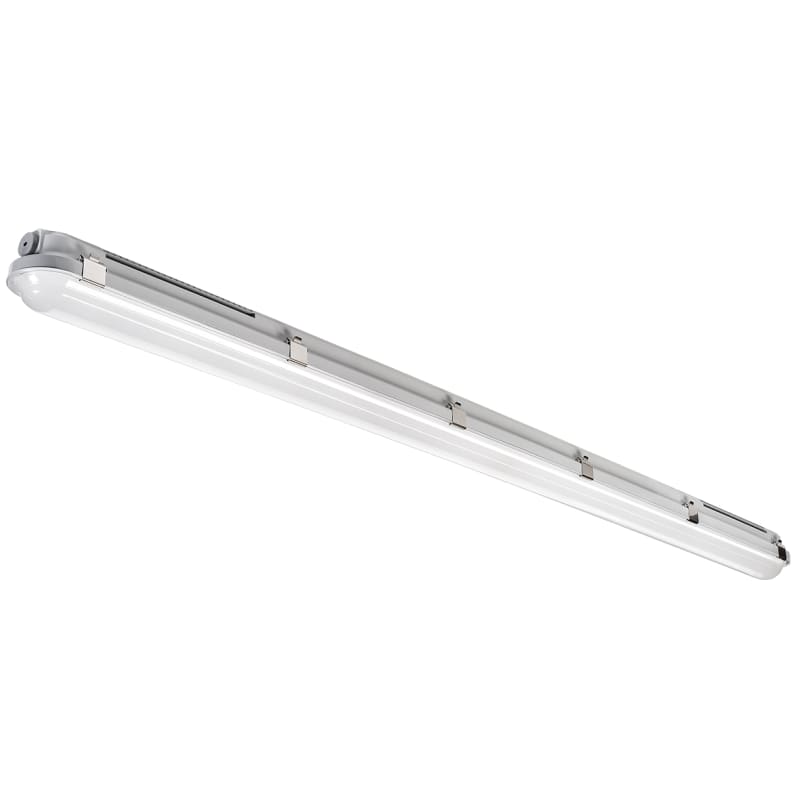

Tysnes 66 PRO 1500 69W/865
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 120062 TYSNES 66 PRO 1500 6500K, 69W, 11060lm, Ra>80, SDCM:3, Class In, IP66, L90/B10>, 100.000.
Technical Specifications
- Manufacturer part number (MPN)
- 120062 EAN / GTIN: 7021981200626 Sales unit: pcs Package quantity: 8 pcs Power: 69 W Efficacy: 160 lm/W Lumen: 11060lm IP Class: IP66 Colour temperature: 6500K Colour rendering (Ra): Ra>80 Lifetime: 100,000 L90/B10> Mounting: Surface, Indoor System wattage: 69W Voltage: 220-240V Max. luminaires per circuit breaker: B10: 16, B16: 26, C10: 27, C16: 45 Leakage current (mA): <0,5 Type of light source: LED Light source included: Yes Luminous flux: 11060lm MacAdams factor: SDCM: 3 minimum ambient temperature: -40°C Light distribution: Direct Optic: Opal Beam angle: 114° UGR: UGR<28 Visible flicker (PstLM): 0,01 Stroboscopic flicker (SVM): 0,01 Photobiological safety: RG 0 Type: On/Off Luminaire class: Class I IK Class: IK10 Fire protection class: 850°C - 30s Contains light source of energy class: C Breeam: Fulfils Hea 01 for flicker free lighting Housing: UV-stabilized polycarbonate Colour: Grey Optics: UV-stabilized polycarbonate Module: 1500 Connection: 5-pole screwless terminal block with 5x2,5mm² through wiring Length (mm) L: 1500 Width (mm) W: 85 Height (mm) H: 80 Weight (kg) gross/net: 1.976 / 1.776 Packaging dimensions (mm): 1525 x 85 x 90 Country of origin: China
Standards & Compliance
- HS Code
- 9405.11
Cross References
- EAN 7021981200626
- SAP 1200888923
- Code 84131596
Product Documentation
