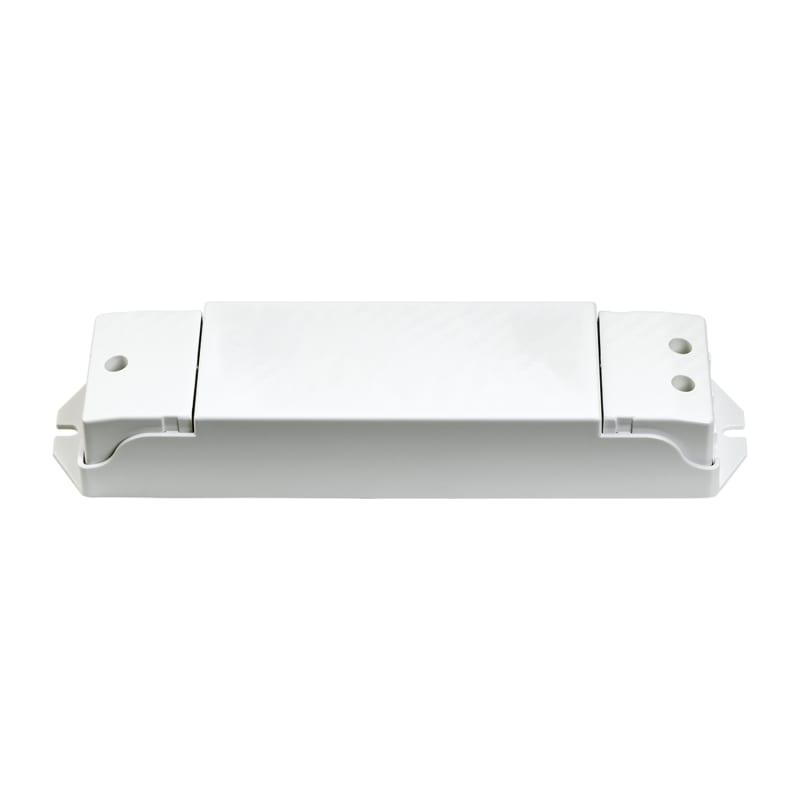

Jointim Smart Color Controller 3.0

SG Armaturen 820821 LEDDIM COLOR CONTROLLER 3.0.

Manufacturer part number (MPN)

820821

EAN / GTIN

7021988208212

Sales unit

pcs

Package quantity

100 pcs

IP Class

IP20

Mounting

Surface, Indoor

Function

Must be combined with a 24V driver and LED strip. Integrated time control and astronomical clock

System wattage

150W

Voltage

24V

Frequency (Hz)

50/60Hz

Type

SG Smart/ Remote Control RF * / Push Dim

Luminaire class

Class III

Housing

Plastic

Colour

White

Connection

Screw terminal 0.5 - 2.5 mm²

Length (mm) L

175

Width (mm) W

45

Height (mm) H

27

Weight (kg) gross/net

0.153 / 0.116

Packaging dimensions (mm)

178 x 50 x 38

Nominal voltage

24 V

Method of operation

Radio frequency (RF)

Rated current

5 A

Power consumption

150 W

Light value memory

Yes

Substation input

Yes

RAL-number (similar)

9003

Applicable with movement sensor

No

Applicable with transmission button

No

Applicable with infrared button

No

Applicable with presence indicator

No

Applicable with button

No

Applicable with time switch/timer

Yes

Transparent

No

Device width

45 mm

Device height

175 mm

Device depth

27 mm

IFTTT support available

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming manufacturer's proprietary system

No

Dimming Touch and Dim

Yes

Dimming with push-button

No

Dimming DSI

No

Min. depth of built-in installation box

45 mm

Operation by Bluetooth

Yes

Compatible with Apple HomeKit

Yes

Compatible with Google Assistant

Yes

Compatible with Amazon Alexa

Yes

Metallic colour

No

Compatible with Casambi

No

Country of origin

China

HS Code

8536.50
