SG Armaturen

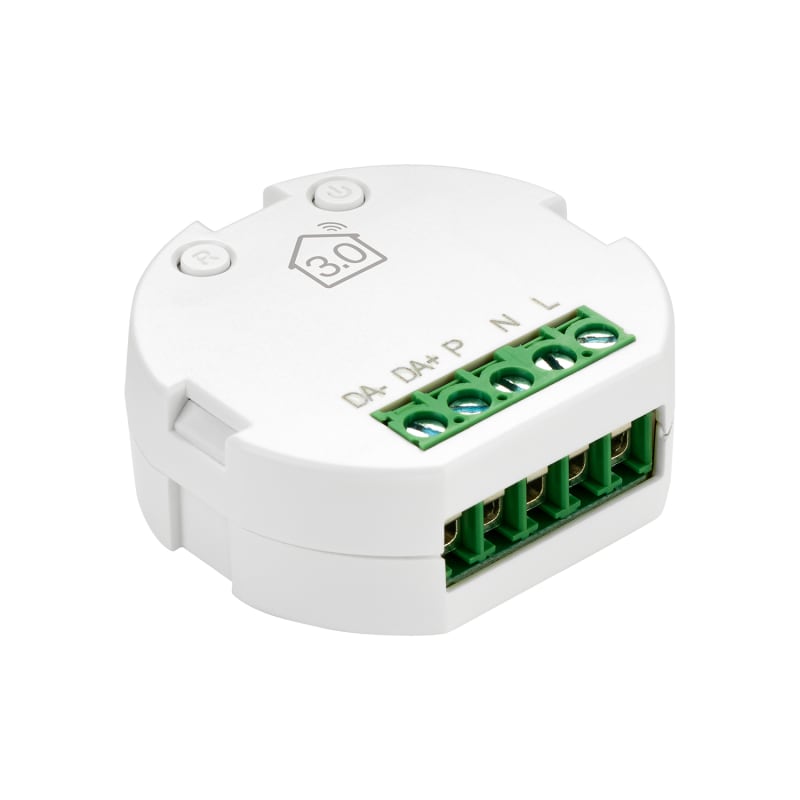

Jointim Smart PILL DALI 3.0
Part number820827EAN / GTIN7021988208274HS code8536.50
Lighting & Electrical Accessories
LED Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 820827 LEDDIM PILL DALI 3.0.
Technical Specifications
- Manufacturer part number (MPN)
- 820827
- EAN / GTIN
- 7021988208274
- Sales unit
- pcs
- Package quantity
- 160 pcs
- IP Class
- IP20
- Mounting
- Recessed, Indoor
- Function
- Integrated time control and astronomical clock
- Standby power
- <0.5W
- Voltage
- 220-240V
- Frequency (Hz)
- 50/60Hz
- Overvoltage protection
- Yes
- Minimum dim level is adjustable
- Yes
- Type
- SG Smart / DALI DT8 (Broadcast)
- Luminaire class
- Class II
- Housing
- Polycarbonat (PC)
- Colour
- White
- Connection
- Screw terminal 0.5 - 2.5 mm²
- Length (mm) L
- 48
- Width (mm) W
- 46
- Height (mm) H
- 18
- Weight (kg) gross/net
- 0.059 / 0.03
- Packaging dimensions (mm)
- 80 x 70 x 30
- Nominal voltage
- 220 V
- Mounting method
- Flush-mounted
- Power consumption
- 0.5 W
- Light value memory
- Yes
- Substation input
- No
- RAL-number (similar)
- 9003
- Control current
- 128 mA
- Applicable with movement sensor
- Yes
- Applicable with transmission button
- Yes
- Applicable with infrared button
- No
- Applicable with presence indicator
- No
- Applicable with button
- Yes
- Applicable with time switch/timer
- Yes
- Transparent
- No
- Device width
- 48 mm
- Device height
- 46 mm
- Device depth
- 18 mm
- IFTTT support available
- No
- Dimming 1-10 V
- No
- Dimming DALI
- Yes
- Dimming manufacturer's proprietary system
- Yes
- Dimming Touch and Dim
- No
- Dimming with push-button
- Yes
- Dimming DSI
- No
- Min. depth of built-in installation box
- 18 mm
- Operation by Bluetooth
- Yes
- Compatible with Apple HomeKit
- Yes
- Compatible with Google Assistant
- Yes
- Compatible with Amazon Alexa
- Yes
- Metallic colour
- No
- Compatible with Casambi
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 7021988208274
- SAP 1201008602
- Code 84361934
Product Documentation
Document preview: Jointim Smart PILL DALI 3.0 (820827) — Specification sheet
