SG Armaturen

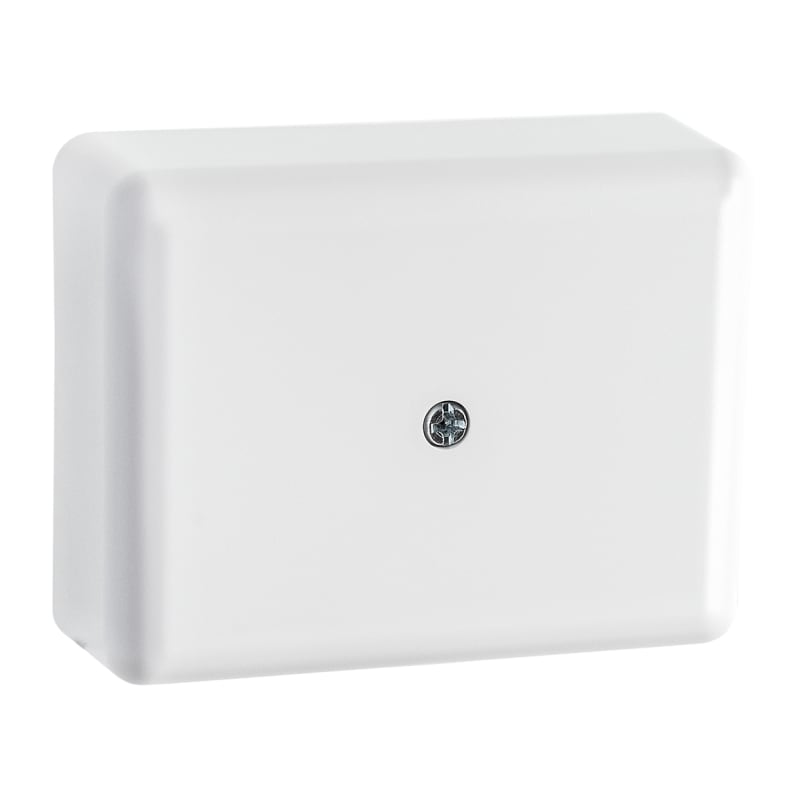

IP20 Junction BOX White
Part number78700EAN / GTIN7021987870014HS code8536.90
Enclosures
Junction Boxes
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
SG Armaturen 78700 IP20 Junction box white.
Technical Specifications
- Manufacturer part number (MPN)
- 78700
- EAN / GTIN
- 7021987870014
- Sales unit
- pcs
- Package quantity
- 6 pcs
- IP rating
- IP20
- Mounting
- Indoor
- Voltage
- Max 440V
- Housing
- Polycarbonat (PC)
- Colour
- White (RAL 9003)
- Halogen free
- Yes
- Connection
- 6 movable screw terminals for up to 2x6mm²
- Length (mm) L
- 84
- Width (mm) W
- 65
- Height (mm) H
- 28
- Weight (kg) gross/net
- 0.084 / 0.022
- Packaging dimensions (mm)
- 84 x 65 x 28
- Number per pack
- 6
- Shape
- Rectangular
- Nominal voltage
- 440 V
- RAL-number
- 9003
- Connection type
- Screwed terminal
- Number of connection clamps
- 6
- Max. conductor cross section
- 6 mm²
- Length
- 83 mm
- Width
- 64 mm
- Depth
- 28 mm
- Mounting method
- Surface mounted
- Extension possible
- Yes
- Type of inlet
- Cable
- Material
- Plastic
- Degree of protection (IP)
- IP20
- With cover
- Yes
- Cover attachment
- Screwed
- With transparent cover
- No
- Sealable
- No
- Rated insulation voltage Ui
- 440 V
- Circuit integrity
- None
- Operating temperature
- -25–60 °C
- Impact strength
- IK00
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021987870014
- SAP 1200528935
- Code 82684092
Product Documentation
Document preview: IP20 Junction BOX White (78700) — Specification sheet
