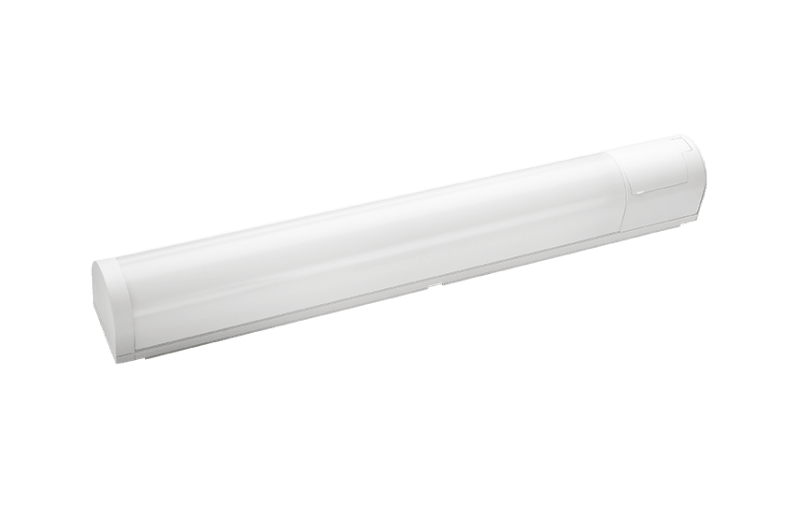

Prelude White 15W/927 IP44 1XPLUG

SG Armaturen 111341 Bathroom LED luminaire which can be mounted horizontal (IP44) and vertical (IP20). L70/B10 50 000 hours service life. Ra>90. SDCM 3.

Manufacturer part number (MPN)

111341

EAN / GTIN

7021981113414

HS code

8543.70

Sales unit

pcs

Package quantity

8 pcs

IP rating

IP44

Power

15 W

Efficacy

95 lm/W

Lumen

1050lm

IP Class

IP44 (mounted horizontally) / IP20 (mounted vertically)

Colour temperature

2700K

Colour rendering (Ra)

Ra>90

Lifetime

50,000 L90/B10>

Mounting

Surface, Indoor

System wattage

11W

Voltage

220-240V

Max. luminaires per circuit breaker

B10: 23, B16: 37, C10: 29, C16: 46

Type of light source

LED

Luminous flux

1050lm

MacAdams factor

SDCM: 3

Light distribution

Direct

Optic

Opal

UGR

UGR<25

Photobiological safety

RG 0

Type

Trailing edge

Luminaire class

Class I

IK Class

IK05

Contains light source of energy class

D

Breeam

Fulfils Hea 01 for flicker free lighting

Sunda Hus

C+

Housing

Aluminium

Colour

Matte white (RAL 9003)

Optics

Acrylic (PMMA)

Connection

Screwless terminal block

Length (mm) L

560

Width (mm) W

70

Height (mm) H

80

Depth (D)

80

Weight (kg) gross/net

1.031 / 0.81

Packaging dimensions (mm)

570 x 90 x 80

HS Code

8543.70

• EAN 7021981113414
• SAP 1000704792
• Code 8423480
