SG Armaturen
WALL BOX Single 21-36mm 8-Run
Part number1202568EAN / GTIN7021987900919HS code8536.90
Electrical Components
Wiring Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

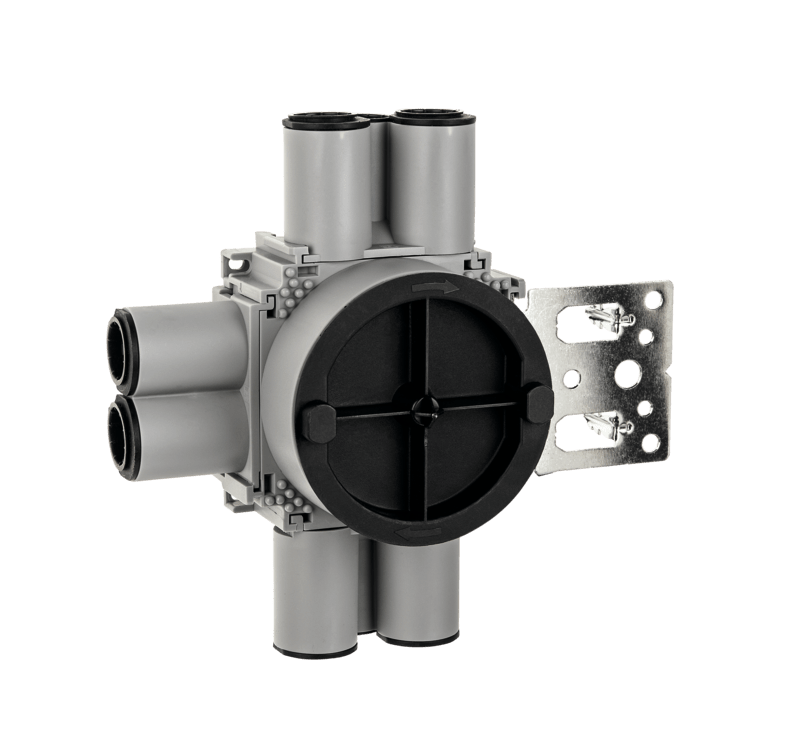

SG Armaturen 1202568 Wall box SINGLE 21-36mm 8-RUN STUD.
Technical Specifications
- Manufacturer part number (MPN)
- 1202568
- EAN / GTIN
- 7021987900919
- Sales unit
- pcs
- Package quantity
- 48 pcs
- Mounting
- Indoor
- Passed EI60 fire resistance test
- Yes
- Housing
- Polypropylene (PP)
- Halogen free
- Yes
- Module
- 21-36mm 8 outlets stud
- Length (mm) L
- 144
- Width (mm) W
- 154
- Height (mm) H
- 66
- Weight (kg) gross/net
- 0.155 / 0.134
- Packaging dimensions (mm)
- 144 x 154 x 66
- Number per pack
- 48
- Number of adjustable device fixing lugs
- 2
- With partition panel
- No
- Mounting method
- Flush-mounted
- Shape
- Round
- Construction type
- Built-in installation box (device box)
- Model
- Single
- Equipped with
- Mounting plate
- Diameter
- 71 mm
- Length
- 144 mm
- Width
- 154 mm
- Inner depth
- 51 mm
- For number of electric fittings
- 1
- Mounting switching equipment
- Screwing
- For tube diameter
- 16/20 mm
- Number of inlets
- 8
- Number of included spouts
- 3
- Material
- Plastic
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP00
- Cover model
- Construction protective cover
- Cover attachment
- Snapped on
- Circuit integrity
- None
- Nozzle
- Tunnel branch pipe
- With nail lugs
- Yes
- Special application
- None
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7021987900919
- SAP 1200573177
- Code 82940029
Product Documentation
Document preview: WALL BOX Single 21-36mm 8-Run (1202568) — Specification sheet
More from SG Armaturen
SG Armaturen
Frame 2X 1,5 Black (1401081)
SG Armaturen

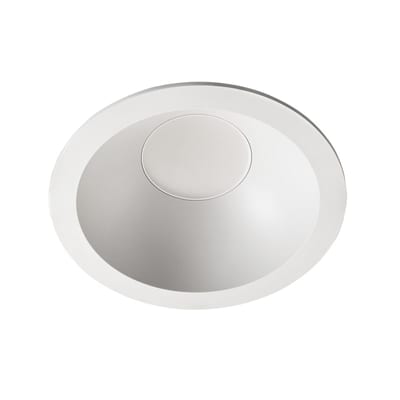

RAX ECO 150 900/1700LM 3000/4000K
212568
SG Armaturen

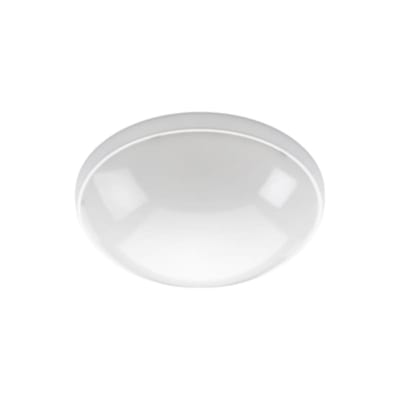

Orion White 800 10W/830 Sensor
212111
SG Armaturen

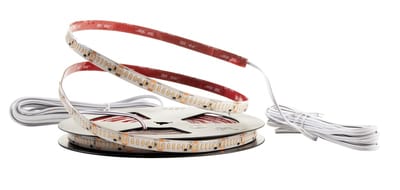

Stripline 10M 9W/827 2X5M Cable
391407
SG Armaturen

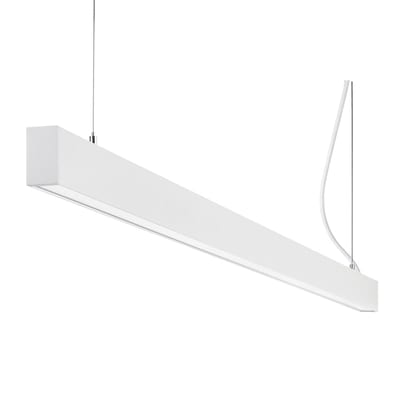

Inspire 1500 White Prismatic 35W/830 DIM
212860
SG Armaturen

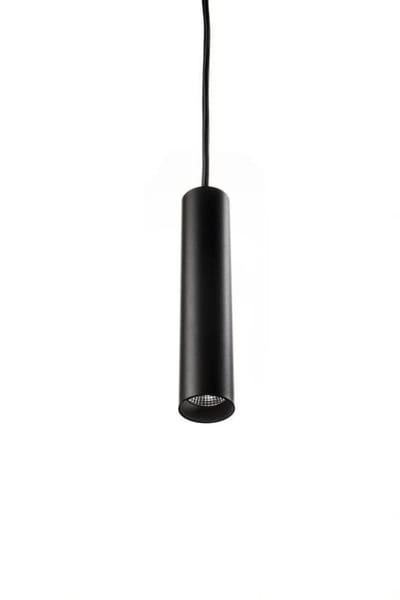

ZIP TUBE Pendant Micro Black 7W/927 40°
320628
SG Armaturen

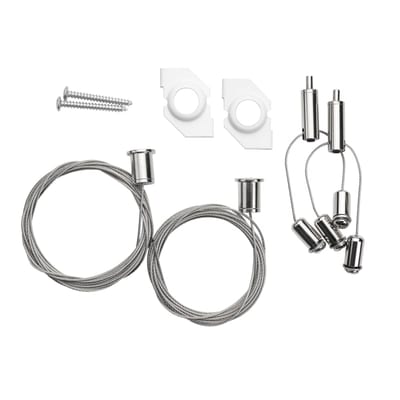

Ecoline Wire Hanger (212095)
SG Armaturen

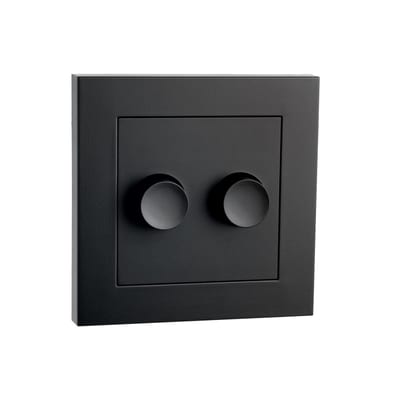

Jointim 2X100 Front SG Black
